15+ Advanced Data Visualization Techniques for Data Engineers in 2025

As data complexity continues to rise in 2025, the role of data engineers is more critical than ever. Advanced data visualization has become a core skill, empowering engineers to manage vast amounts of data effectively.

Visualization techniques are essential for monitoring data pipelines, detecting anomalies, and processing data in real time. With the increasing volume and variety of data, these tools not only help data engineers derive deeper insights but also enable organizations to make smarter, faster decisions.

In this blog, we’ll explore the key visualization techniques that are helping data engineers turn complex datasets into actionable insights.

Top 15+ Advanced Data Visualization Techniques for Data Engineers in 2025

In 2025, as industries increasingly rely on AI and real-time analytics, data visualization will be crucial for faster decision-making and proactive data management. These visualizations use complex graphics to uncover insights from large datasets, enabling data engineers to monitor data in real time, detect anomalies, and optimize pipelines.

By leveraging these techniques, engineers can manage data complexity, improve collaboration, and quickly identify issues. The shift from basic charts to dynamic, interactive visualizations will significantly enhance data processing and facilitate the extraction of actionable insights.

Here are the top 15+ advanced data visualization techniques that empower data engineers in 2025.

1. Line Plots

Line plots are invaluable for tracking time-series data and identifying trends over time. They display continuous data points, often with a time variable on the x-axis and a corresponding value on the y-axis.

Best for:

• Monitoring data trends over time
• Real-time analysis of continuous data streams

Example with Data Engineering: Data engineers often use line plots to monitor data pipelines in real-time. For instance, they can track the throughput of data from a source to a destination to ensure the pipeline is functioning smoothly. If the data throughput starts to dip, an alert can be triggered, enabling the engineer to take corrective action.

Benefits and Limitations:

• Benefits: Line plots are straightforward and excellent for identifying trends and detecting issues over time.
• Limitations: They are less effective when analyzing multiple variables simultaneously or displaying highly complex data sets.

The line plot below shows Tata Motors (Dummy) shares prices over four months of time.

Moving from basic line plots, data engineers are now shifting to more interactive and real-time visualization techniques.

2. Bar Plots

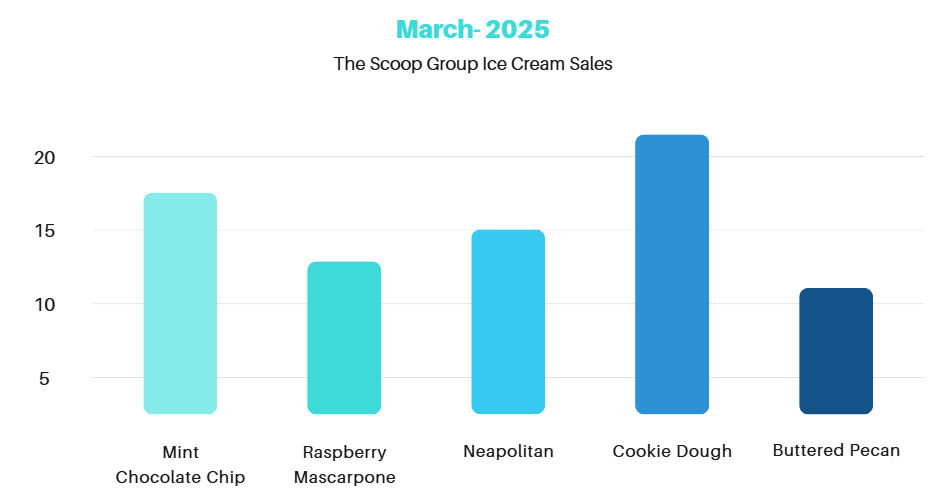

Bar plots are used to represent categorical data with rectangular bars, where the length of each bar is proportional to the value it represents. There are various types of bar charts, each designed for specific purposes, such as vertical bar plots, horizontal bar plots, and clustered bar plots.

Best for:

• Comparing categories or groups
• Analyzing pipeline performance metrics

Example with Industry: In a large-scale data system, bar plots can be used by data engineers to compare performance across different data processing stages. For example, a bar chart might display the time taken by each part of the ETL (Extract, Transform, Load) process. If one stage is taking significantly longer than others, it’s a signal to optimize that part of the pipeline.

Benefits and Limitations:

• Benefits: Bar plots are ideal for comparing different groups or categories and are highly interpretable.
• Limitations: They are not effective for displaying trends over time or complex relationships between variables.

With bar plots helping in categorical comparisons, histograms take the next step by providing insights into the distribution of continuous data.

3. Histogram

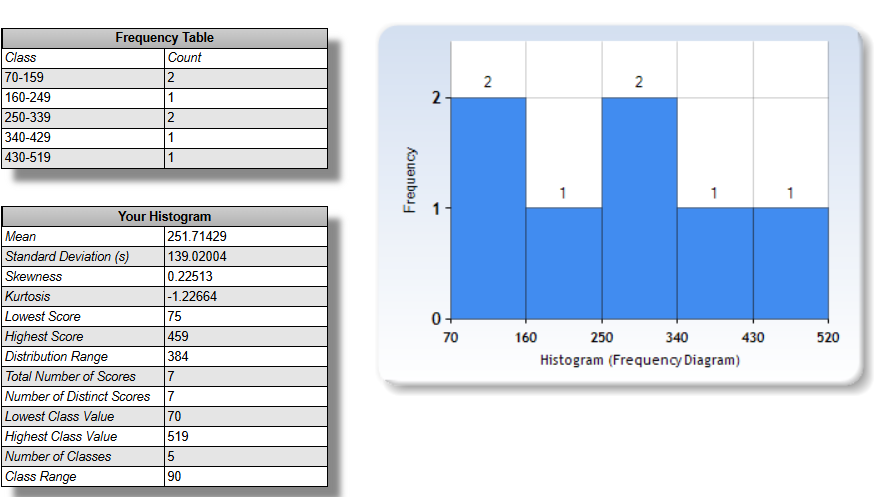

Histograms display the distribution of data across various bins or intervals, making it easier to understand the underlying frequency distribution.

To create a histogram, numerical data is divided into intervals or bins, and the frequency of each range is counted. The horizontal axis represents the range, while the vertical axis shows the frequency or percentage of occurrences for each range.

Best for:

• Analyzing the distribution of continuous variables
• Understanding data behavior in large datasets

Example with Industry: Data engineers often use histograms to monitor the distribution of data entering their systems. For example, when dealing with sensor data from IoT devices, a histogram can show the frequency of temperature readings. If certain readings fall outside expected ranges, an engineer can investigate whether it indicates faulty sensors or an anomaly in the data stream.

Benefits and Limitations:

• Benefits: Histograms are great for visualizing the frequency distribution of continuous data and identifying patterns like skewness or outliers.
• Limitations: They can become difficult to interpret with too many bins or if the data distribution is too sparse.

Also Read: Bar Chart vs. Histogram: Which is Right for Your Data?

Histograms offer great insights into data distribution, but pie charts are often used to visualize proportions in categorical datasets.

4. Pie Chart

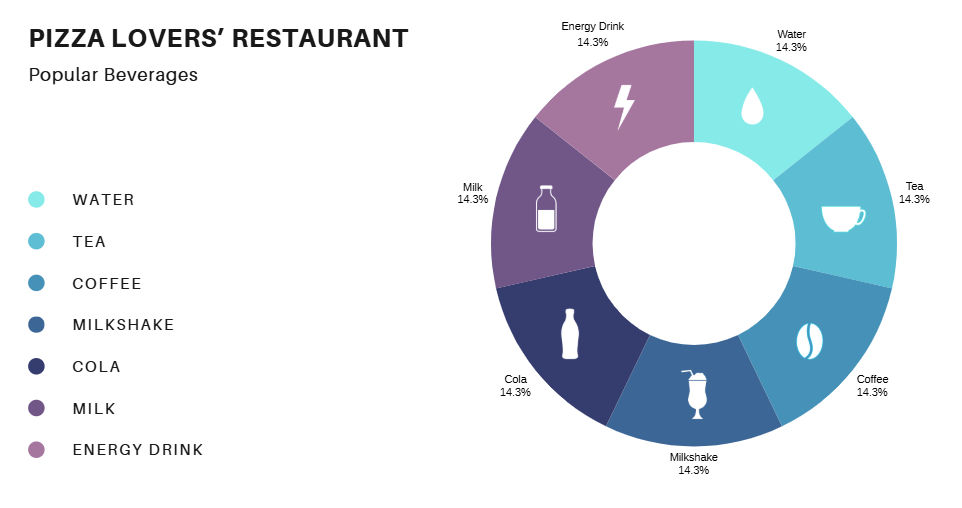

Pie charts are effective for showing the proportions of categories in a dataset.

Best for:

• Visualizing proportions within a dataset
• Analyzing categorical breakdowns

Example with Industry: While not commonly used for monitoring in real-time, pie charts can be useful in reporting scenarios. For instance, data engineers can use pie charts to present the breakdown of data sources feeding into a central data warehouse. A pie chart could show the proportion of data coming from APIs, batch processes, or manual uploads, helping engineers assess resource allocation.

Benefits and Limitations:

• Benefits: Pie charts provide an easy-to-understand visual representation of proportions, especially when comparing a small number of categories.
• Limitations: They are less effective when there are too many categories or when categories have similar values, making it hard to differentiate between slices.

After pie charts help visualize proportional data, techniques like heatmaps offer a more advanced way to analyze data correlations and patterns across larger datasets.

5. Heatmaps

Heatmaps use color to represent values in a matrix, making it easier to visualize data patterns and correlations across two dimensions.

Best for:

• Identifying correlations in large datasets
• Monitoring system performance in real-time

Example with Industry: Data engineers use heatmaps to monitor the status of data pipelines across multiple systems. For example, a heatmap could be employed to track server performance, showing which servers are under heavy load and which are idle. If multiple systems are experiencing high traffic at the same time, this might indicate a potential bottleneck in the pipeline.

Benefits and Limitations:

• Benefits: Heatmaps are excellent for spotting patterns or correlations in large, complex datasets.
• Limitations: They may become difficult to interpret if there is too much data, or the color scheme isn’t optimized for clarity.

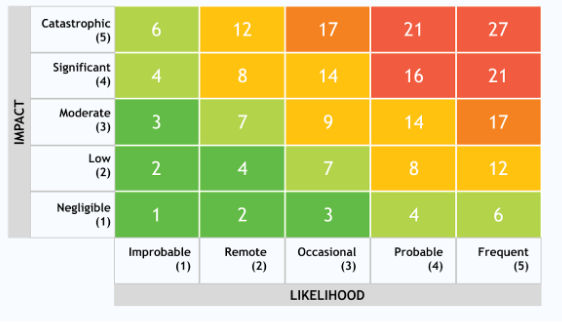

Here is an example of the likelihood and impact of an organizations' risks.

With heatmaps serving as a powerful tool for data engineers, treemaps can also provide significant insights, especially when dealing with hierarchical data.

6. Treemaps

Treemaps visualize hierarchical data through nested rectangles, where each rectangle represents a category and its size reflects the value of the data.

Best for:

• Visualizing hierarchical data
• Comparing proportions in a nested structure

Example with Industry: In data engineering, treemaps can help monitor the data flow within hierarchical systems. For example, a treemap might represent different components of a data pipeline, with the size of each rectangle showing the amount of data passing through that component. This helps engineers identify which part of the pipeline is handling the most data and optimize it accordingly.

Benefits and Limitations:

• Benefits: Treemaps are effective for showing hierarchical data and relationships, especially when trying to understand proportions.
• Limitations: They can become hard to read with too many nested levels or categories.

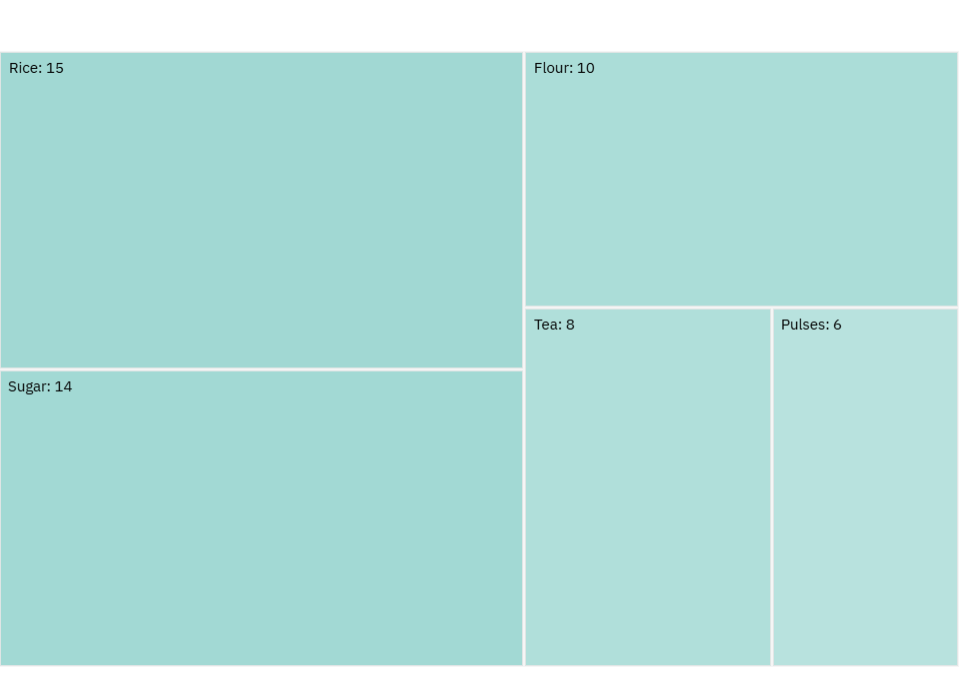

Here is an example treemap showing data of Kirana Store.

As treemaps facilitate hierarchical data insights, tables remain indispensable for presenting structured datasets.

7. Tables

Tables present data in rows and columns, allowing for the detailed display of structured information in an organized manner.

Best for:

• Displaying precise data values
• Analyzing structured datasets

Example with Industry: Data engineers frequently use tables to display data logs or records from their pipelines. For instance, a table might track the status of various data processing jobs, including start times, end times, and error messages. This helps engineers quickly pinpoint which jobs failed and why, allowing for swift troubleshooting.

Benefits and Limitations:

• Benefits: Tables are essential for displaying detailed, exact data in an organized way, making them highly useful in structured datasets.
• Limitations: They are not effective for visualizing trends or relationships between variables and can be overwhelming with large datasets.

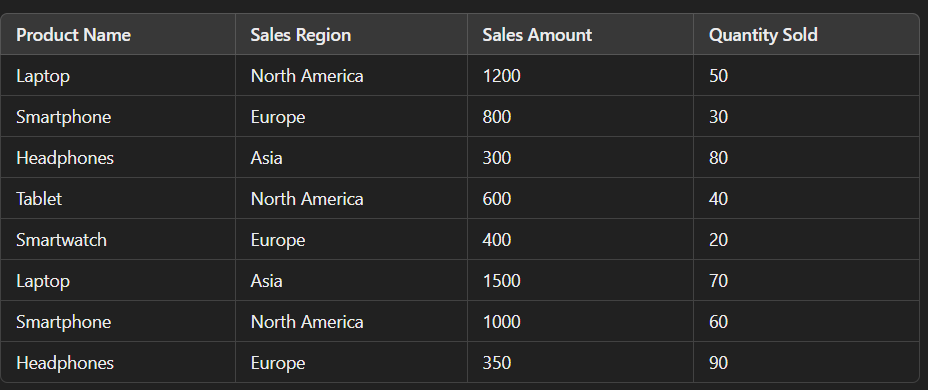

Here example data will represent a simple sales record for a company with columns like Product Name, Sales Region, Sales Amount, and Quantity Sold.

With tables offering an organized approach to data, time series analysis represents an advanced method for tracking changes over periods.

8. Time Series Analysis

Time series analysis is the method of analyzing data points that are collected or recorded at specific time intervals.

Best for:

• Forecasting trends
• Analyzing data that changes over time

Example with Industry: Data engineers in energy production use time series analysis to predict electricity demand based on historical data, helping optimize energy generation and prevent overproduction during peak and off-peak hours.

Benefits and Limitations:

• Benefits: Time series analysis provides insights into trends, seasonality, and potential future behavior of time-dependent data.
• Limitations: It can be sensitive to noise, making it difficult to predict accurately without sufficient data or sophisticated modeling.

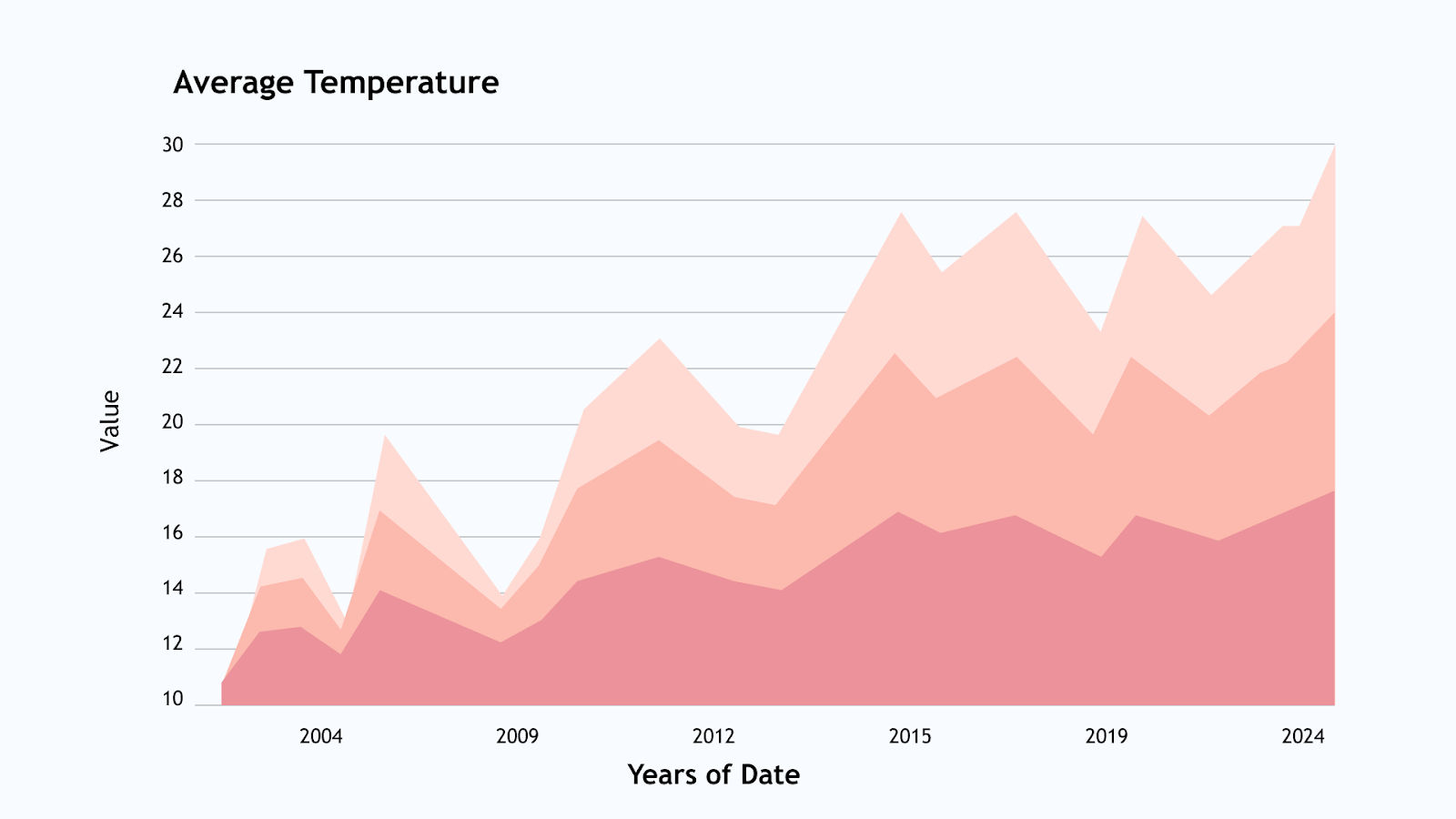

Here is an example of Time Series Analysis chart showing temperature change from 2004 to 2024.

Also Read: Top Data Analytics Tools Every Data Scientist Should Know About

As time series analysis gives us deeper insights into trends, box and whisker plots can add another layer of precision to understanding data distribution.

9. Box and Whisker Plots

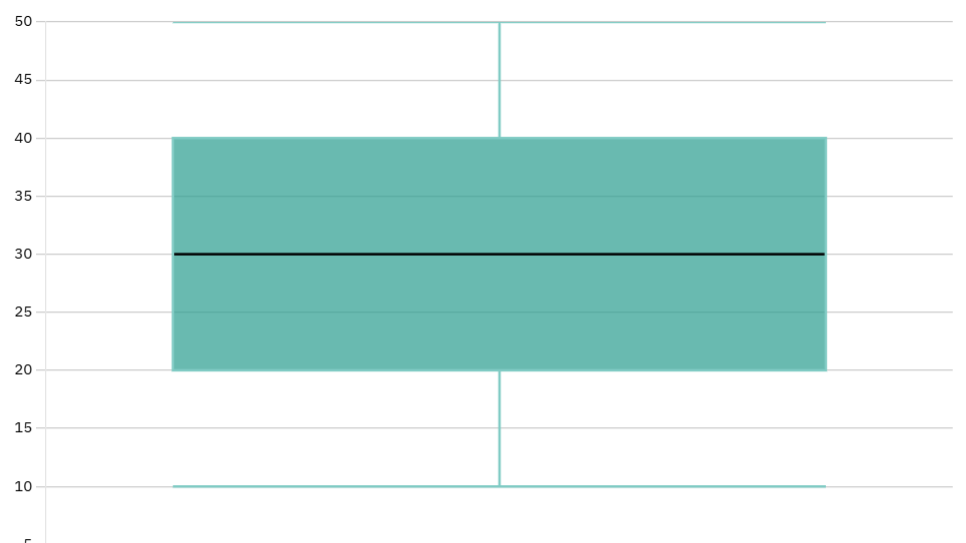

Box and whisker plots provide a graphical summary of the distribution of a dataset, showing following points.

• Median: The central value of a dataset, where half of the data points are below it and half are above it.
• Upper Quartile: The 75th percentile of a dataset, where 75% of the data points are below it, and 25% are above it.
• Lower Quartile: The 25th percentile of a dataset, where 25% of the data points are below it, and 75% are above it.
• Upper Adjacent Value: Often referred to as the “maximum.” This is the upper quartile plus 1.5 times the interquartile range.
• Lower Adjacent Value: Often referred to as the “minimum.” This is the lower quartile minus 1.5 times the interquartile range.

Best for:

• Visualizing data distribution
• Identifying outliers in datasets

Example with Industry: Data engineers use box plots to monitor transaction data, quickly identifying outliers or anomalies in spending patterns during ETL processes, ensuring accurate data for analysis and decision-making.

Benefits and Limitations:

• Benefits: Box and whisker plots are effective for visualizing data distribution and detecting outliers.
• Limitations: They can be hard to interpret for non-statistical audiences or when data distribution is skewed.

Box and whisker plots are great for understanding data distributions, but as we explore further into advanced data visualization techniques for data engineers, we’ll see how word clouds offer a unique way to represent text data.

10. Word Clouds

Word clouds visually represent the frequency of words in a body of text, with word size proportional to frequency.

Best for:

• Analyzing text data
• Visualizing common terms or phrases in large datasets

Example with Industry: In marketing, word clouds are used to analyze customer feedback, reviews, or survey responses, helping companies identify frequently mentioned topics.

Benefits and Limitations:

• Benefits: Word clouds offer a visually engaging way to spot trends in textual data.
• Limitations: They can be less useful for deeper analysis and lack granularity or context.

Let’s now transition to more intricate visualizations such as network diagrams, which are vital for understanding relationships in complex datasets.

11. Network Diagrams

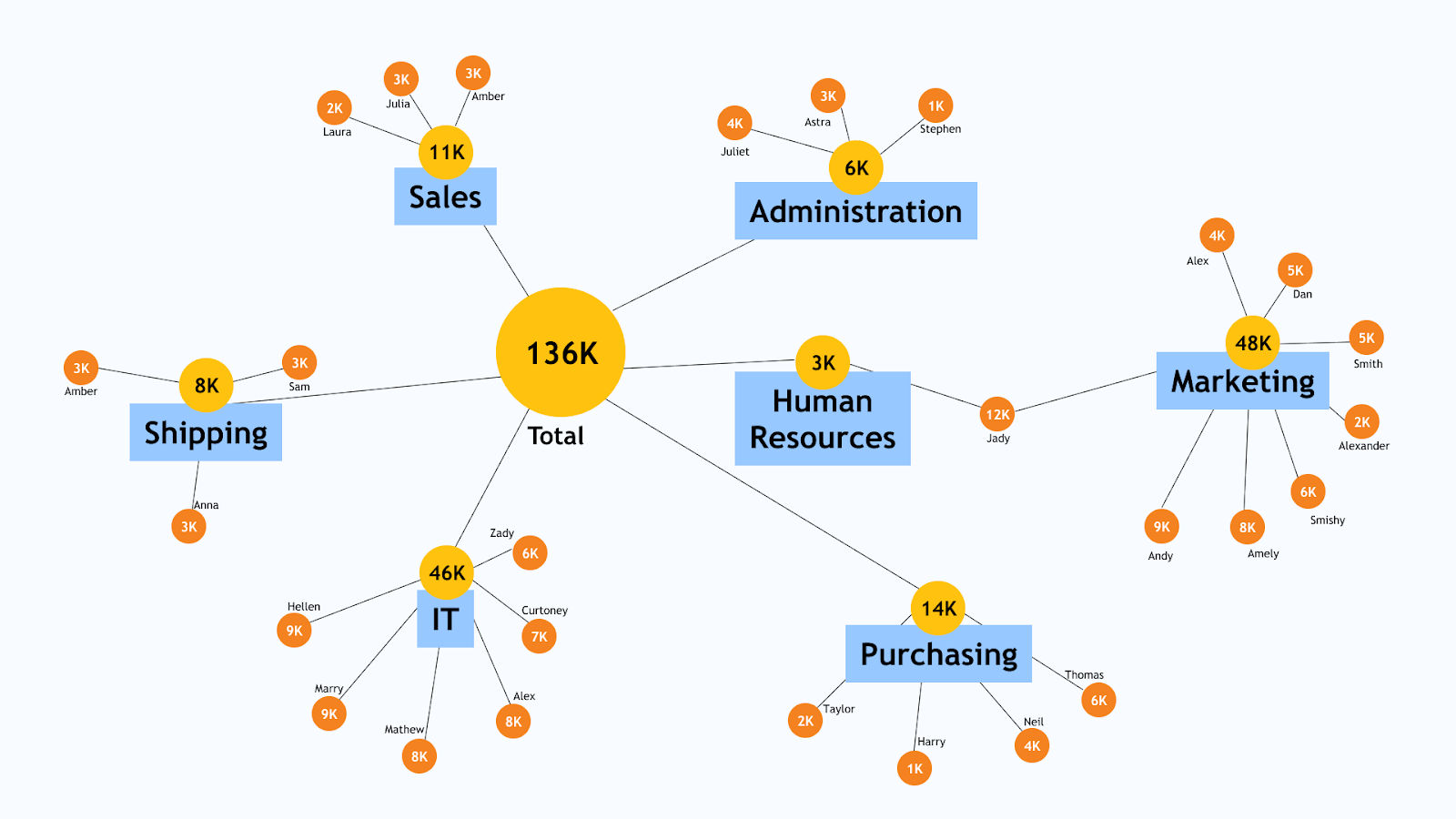

Network diagrams represent relationships or connections between entities, where nodes represent entities, and edges represent relationships.

Best for:

• Visualizing complex relationships
• Analyzing networks or systems

Example with Industry: Telecommunication companies use network diagrams to visualize connections between different network nodes (towers), such as routers and switches.

Benefits and Limitations:

• Benefits: Network diagrams are useful for visualizing complex relationships and dependencies in data.
• Limitations: As the network grows, diagrams can become cluttered and harder to interpret.

From understanding relationships, geospatial maps provide a compelling way to visualize data based on location.

12. Geospatial Maps

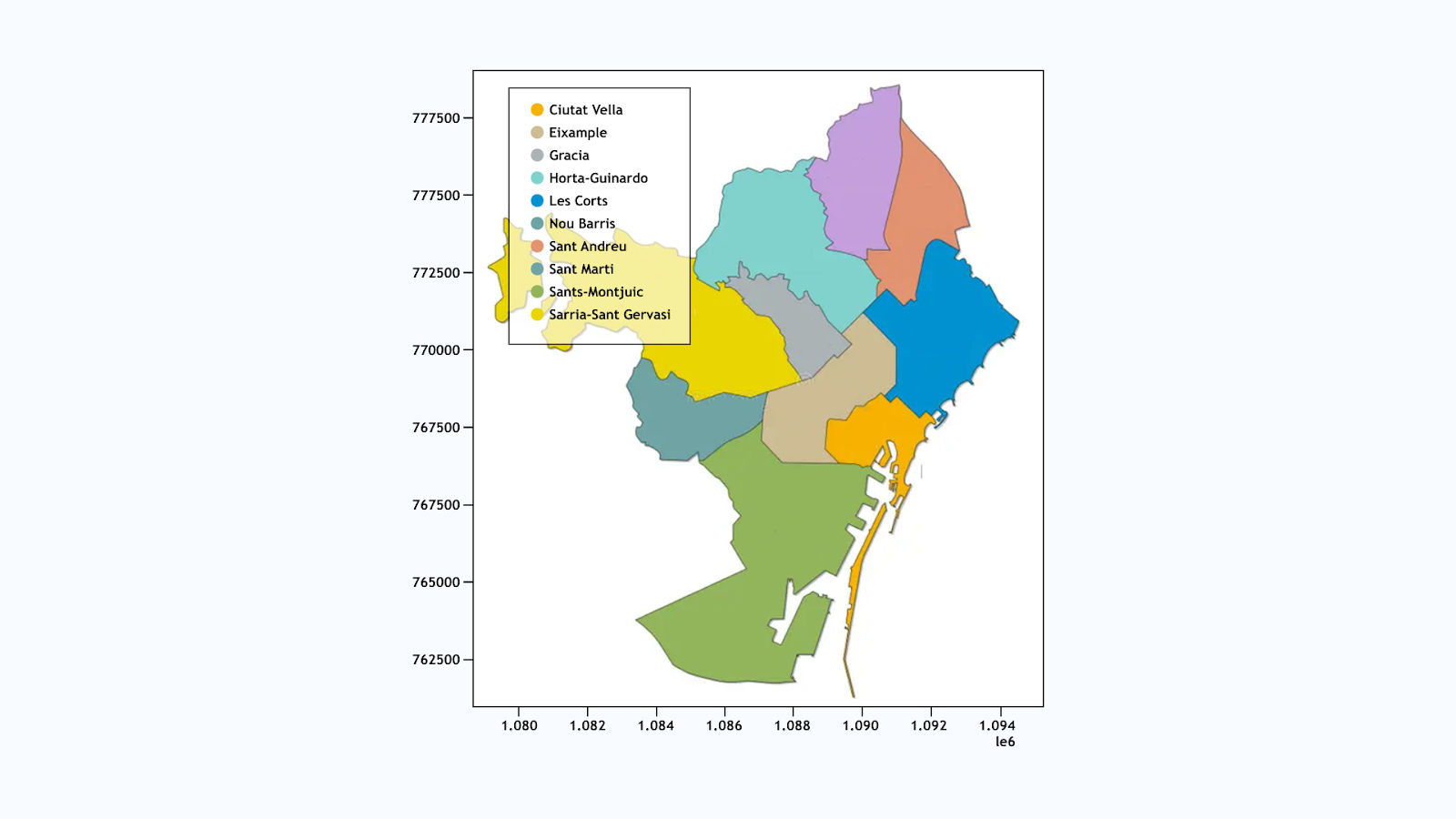

Geospatial maps allow for the visualization of data with a geographic component, showing how data varies across locations.

Best for:

• Visualizing location-based data
• Analyzing spatial patterns and distributions

Example with Industry: Data engineers use geospatial maps to track and optimize delivery routes in real time, analyzing traffic patterns and geographic data to minimize delays and improve operational efficiency in logistics.

Benefits and Limitations:

• Benefits: Geospatial maps are highly effective for spatial analysis, helping data engineers understand location-based trends.
• Limitations: They require accurate geographic data and can become visually cluttered with too many variables.

Also Read: Top 15 Data Visualization Libraries in Python for Business

As geospatial maps assist in location-based insights, scatter plots offer a powerful tool for visualizing the relationship between two continuous variables.

13. Scatter Plots

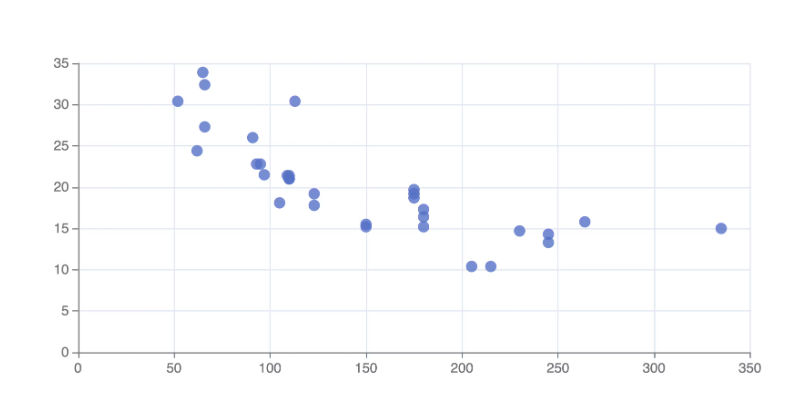

Scatter plots show the relationship between two continuous variables by plotting them as points on a two-dimensional axis.

Best for:

• Analyzing relationships between variables
• Detecting correlations or trends

Example with Industry: Data engineers use scatter plots to visualize relationships between server load and system performance, helping detect real-time anomalies in data pipelines for quicker troubleshooting and optimization.

Benefits and Limitations:

• Benefits: Scatter plots are great for identifying correlations, trends, and outliers.
• Limitations: They can become difficult to interpret with large datasets or when there is no clear pattern.

Bubble charts expand on scatter plots by adding a third dimension through bubble size. Let’s explore how they enhance data visualization.

14. Bubble Charts

Bubble charts are similar to scatter plots but with an additional dimension represented by the size of the bubbles, allowing you to display three continuous variables.

Best for:

• Analyzing three-dimensional relationships
• Comparing multiple variables simultaneously

Example with Industry: Data engineers use bubble charts to visualize product sales, pricing, and inventory data, helping optimize inventory allocation and pricing strategies by detecting correlations between variables in real-time.

Benefits and Limitations:

• Benefits: Bubble charts provide a clear representation of three variables in a single plot.
• Limitations: They can be hard to interpret when too many bubbles are displayed or when the scale of data varies greatly.

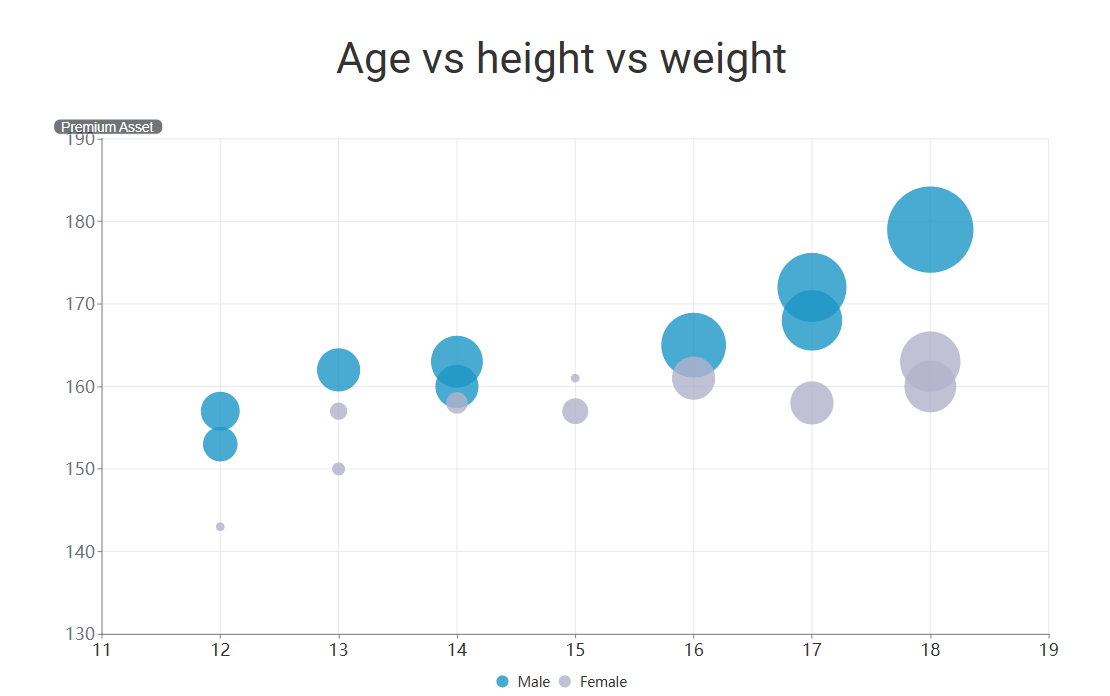

Here is an example of age vs height vs weight in male and female of a city.

For larger datasets, density maps provide a compelling visualization option by showing data concentration. Let’s dive deeper into how these maps are used.

15. Parallel Coordinates

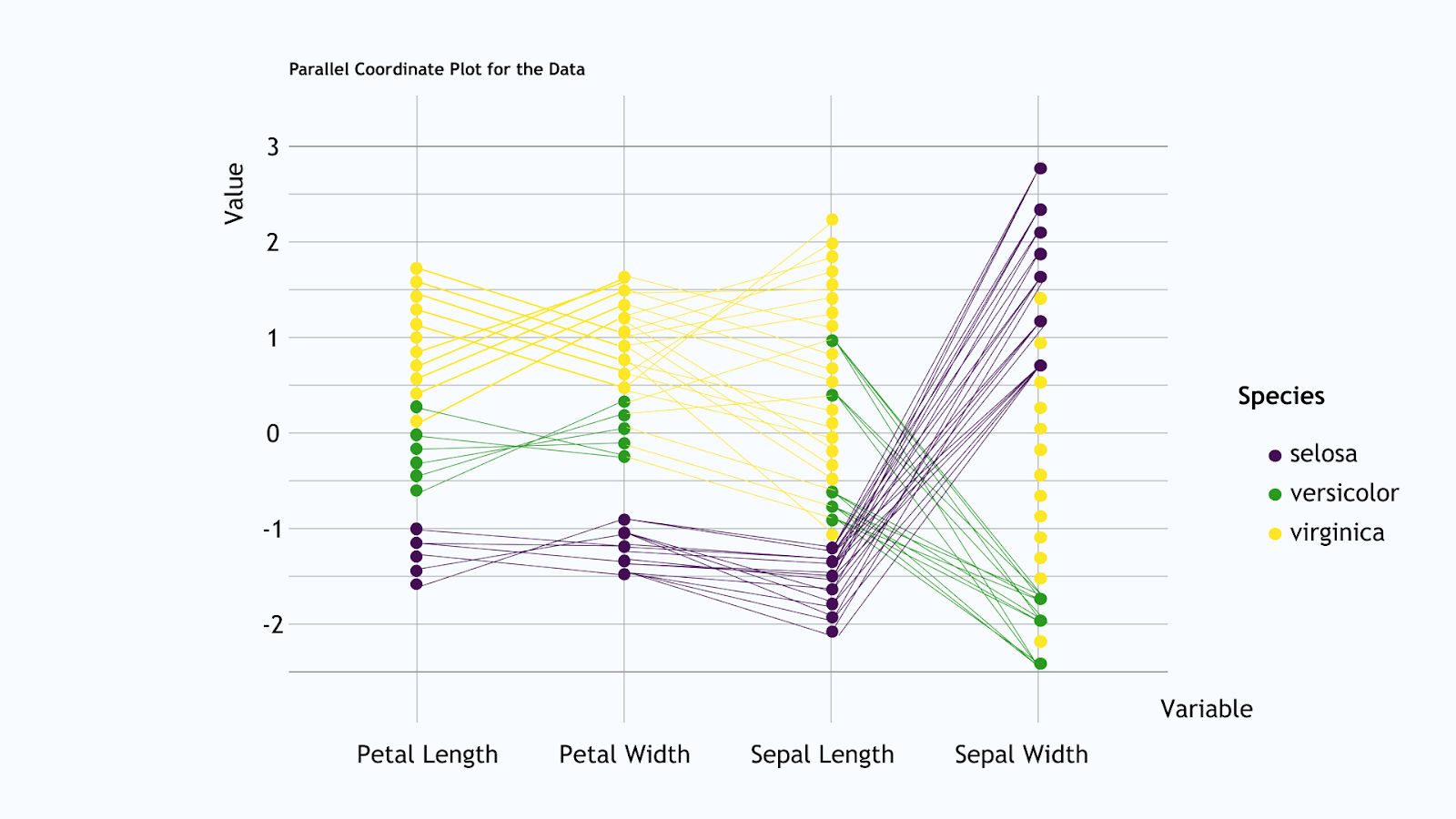

Parallel coordinates are a visualization technique that maps multi-dimensional data across several parallel axes, each representing a dimension of the dataset. Data points are plotted as a series of connected lines, with each line representing an individual object or observation in the dataset. This allows for the exploration of complex relationships between multiple variables simultaneously.

Best for:

• Visualizing multi-dimensional relationships in datasets
• Analyzing complex datasets with numerous variables
• Identifying patterns and correlations between different dimensions

Example with Industry: In data mining, parallel coordinates can be used to identify patterns in customer data, helping businesses segment customers based on various attributes (e.g., age, income, purchasing behavior).

Benefits and Limitations:

• Benefits: Parallel coordinates are excellent for visualizing complex datasets with multiple dimensions, allowing for the exploration of intricate relationships without constraints on the number of variables.
• Limitations: They can become challenging to interpret when data points overlap, making it difficult to distinguish between individual observations, especially when dealing with large datasets or many dimensions.

With the growing importance of interactive data analysis, Sankey diagrams provide a dynamic way to visualize flows and transitions.

16. Sankey Diagrams

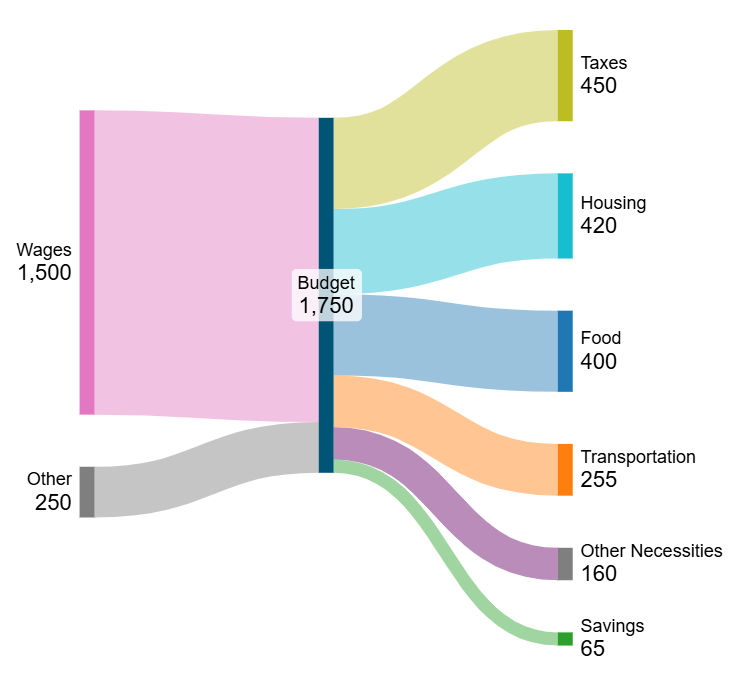

Sankey diagrams visualize flows and the proportional relationships between different entities, represented by arrows whose width corresponds to the flow magnitude.

Best for:

• Visualizing flows in systems
• Tracking movement or transfer of resources

Example with Industry: Data engineers use Sankey diagrams to visualize customer data flow across various touchpoints in real-time, ensuring seamless integration of diverse data sources and efficient pipeline management.

Benefits and Limitations:

• Benefits: Sankey diagrams are great for visualizing resource flows and dependencies.
• Limitations: They can become overly complex and harder to interpret with too many flows.

Also Read: Top 10 Data Visualization Techniques for Successful Presentations

Understanding these techniques empowers data engineers to transform complex data into clear insights that drive better decision-making.

How Advanced Data Visualization Techniques Improves Decision-Making?

Advanced data visualization techniques transform raw data into easily digestible visuals, enabling decision-makers to quickly identify trends and insights. These visuals make it easier to see performance patterns, customer behavior, and operational efficiency at a glance.

Here are the benefits of using advanced data visualization techniques:

• Quick Trend Identification: Visuals like bar charts or line graphs show trends in real time. For example, a sales dashboard displays monthly growth, helping managers assess whether sales are increasing or declining.
• Improved Pattern Recognition: Visual representations like heatmaps reveal connections between data points, such as how customer behavior correlates with purchase patterns. This helps businesses target strategies more effectively.
• Real-Time Decision-Making: Data visualizations allow businesses to react to trends immediately. For instance, an e-commerce company may adjust stock levels or pricing based on real-time data insights.

Visual tools are essential for making complex data comprehensible. Large datasets can overwhelm users, but with the right tools, data becomes more accessible.

Here are a few examples of how visual tools help make complex data understandable:

• Geospatial Visualization: Logistics companies use geospatial maps to track deliveries and optimize routes. These visuals help identify areas with heavy traffic or delivery challenges, enabling faster decision-making.
• Financial Forecasting: Line graphs or bar charts display historical financial data, allowing businesses to track revenue trends and predict future growth. This helps with long-term investment decisions.
• Healthcare Analytics: Healthcare providers use visualizations to track patient outcomes and hospital performance. Dashboards provide a real-time view of patient data, allowing for quick responses to emerging health trends.

Effective visualizations help businesses assess performance, track metrics, and make strategic decisions, enabling faster, more accurate insights aligned with organizational goals.

Here’s how effective visualizations influence business strategy:

• Informed Strategic Planning: Visual dashboards show key metrics like customer acquisition and retention. For example, seeing patterns in customer churn helps businesses develop better retention strategies.
• Agility in Response to Market Changes: Businesses can use real-time data dashboards to monitor changing market conditions. For example, supply chain visualizations allow companies to adjust quickly if a disruption occurs.
• Optimized Resource Allocation: Visualization tools make it easier to track resource utilization across departments. This helps managers allocate resources more efficiently by identifying underperforming or overburdened areas.

Also Read: Top 15 Types of Data Visualization: Benefits and How to Choose the Right Tool for Your Needs in 2025

To effectively choose the right approach, it's essential to understand how advanced visualization aids decision-making.

How to Choose the Right Data Visualization Approach for Data Engineering?

When selecting a data visualization approach for data engineering, it is crucial to match the technique with the data's complexity and the target audience. Advanced data visualization techniques for data engineers transform raw data into actionable insights, guiding decision-making and facilitating better business outcomes. To make informed choices, consider the following:

• Understand Data Complexity
  Complex datasets require advanced visualization techniques to reveal patterns and trends. For example, multi-dimensional data might need heat maps or 3D scatter plots to capture relationships effectively.
• Know the Audience's Expertise
  Tailor visualizations to the audience’s expertise. Technical audiences may prefer interactive dashboards or network graphs, while business leaders often benefit from simpler charts like bar or pie charts.
• Focus on Clarity and Simplicity
  Even with advanced data visualization techniques for data engineers, simplicity should be prioritized. Avoid overwhelming your audience with too much information or complex visualizations.
• Incorporate Interactivity
  Interactive visualizations allow users to explore data in more depth. For instance, dashboards that offer filtering options empower decision-makers to focus on the most relevant aspects of the data.

Advanced data visualization techniques for data engineers help interpret complex data effectively. However, these visualizations must also be optimized for decision-makers. Below are best practices for presenting data effectively:

• Use Consistent Layouts
  Maintain consistency in your layout to avoid clutter. Dashboards should highlight key metrics clearly and concisely, allowing decision-makers to focus on the most important data.
• Highlight Key Insights
  Use annotations or contrasting colors to draw attention to trends or anomalies. For example, highlight a sudden dip in sales to help decision-makers address the issue quickly.
• Ensure Real-Time Data Availability
  Decision-makers need up-to-date information. Integrate real-time data streaming to ensure your visualizations reflect the latest insights, making it easier to track performance as it changes.
• Simplify Complex Data
  Break down large datasets into digestible pieces. For example, aggregate daily data into weekly or monthly views to give higher-level decision-makers a clearer picture.
• Prioritize Actionable Insights
  The goal of any data visualization is to drive action. Ensure your visualizations focus on data that directly supports decision-making. For example, sales teams might need to see performance by region or product to adjust strategies.

Also Read: Top 15 Data Visualization Project Ideas: For Beginners, Intermediate, and Advanced Level Professionals

Understanding the best data visualization practices can propel your career forward, and upGrad offers the perfect platform to do so.

How Can upGrad Help You Advance Your Data Engineer Career?

With a strong foundation in data visualization techniques, you’re ready to take your skills to the next level with upGrad's certification courses. These programs will deepen your knowledge of advanced data analysis strategies, and decision-making tools.

You’ll gain hands-on experience by working on real-world projects, where you'll apply data visualization principles to deliver meaningful insights and drive significant business results.

Here are some relevant certification as well as free courses by upGrad:

• Executive Diploma in Data Science & AI
• Executive Diploma in Machine Learning and AI with IIIT-B
• Post Graduate Certificate in Machine Learning and Deep Learning (Executive)
• Introduction to Data Analysis using Excel
• Analyzing Patterns in Data and Storytelling

Not sure about the next step in your learning journey? upGrad offers personalized career counseling to help you choose the best path tailored to your aspirations. You can also visit your nearest upGrad center and start hands-on training today!

Unlock the power of data with our popular Data Science courses, designed to make you proficient in analytics, machine learning, and big data!

Explore our Popular Data Science Courses

Elevate your career by learning essential Data Science skills such as statistical modeling, big data processing, predictive analytics, and SQL!

Top Data Science Skills to Learn

Stay informed and inspired with our popular Data Science articles, offering expert insights, trends, and practical tips for aspiring data professionals!

Read our popular Data Science Articles

References:
https://www.mckinsey.com/capabilities/growth-marketing-and-sales/our-insights/five-facts-how-customer-analytics-boosts-corporate-performance
