ANOVA Two Factor With Replication: Concepts, Steps, and Applications

ANOVA Two Factor with Replication is a statistical method used to analyze the effect of two independent variables on a dependent variable. It helps you understand both the individual and combined impacts of the factors. Replication ensures that results are reliable by minimizing random errors.

Each combination of factors is repeated, allowing for more accurate and consistent results. This approach reveals interactions between factors, helping you make data-driven decisions in various fields.

From product testing to healthcare research, ANOVA Two Factor with Replication is widely applicable. In the following sections, you'll learn the key concepts, steps, and how to apply this method effectively.

Key Concepts of ANOVA Two Factor with Replication

ANOVA (Analysis of Variance), using two factors with replication, analyzes how two independent variables (factors) affect a dependent variable. It evaluates both the individual impact of each factor (main effects) and the combined effect of both factors (interaction effects). This approach helps you understand whether the effect of one factor depends on the level of the other factor.

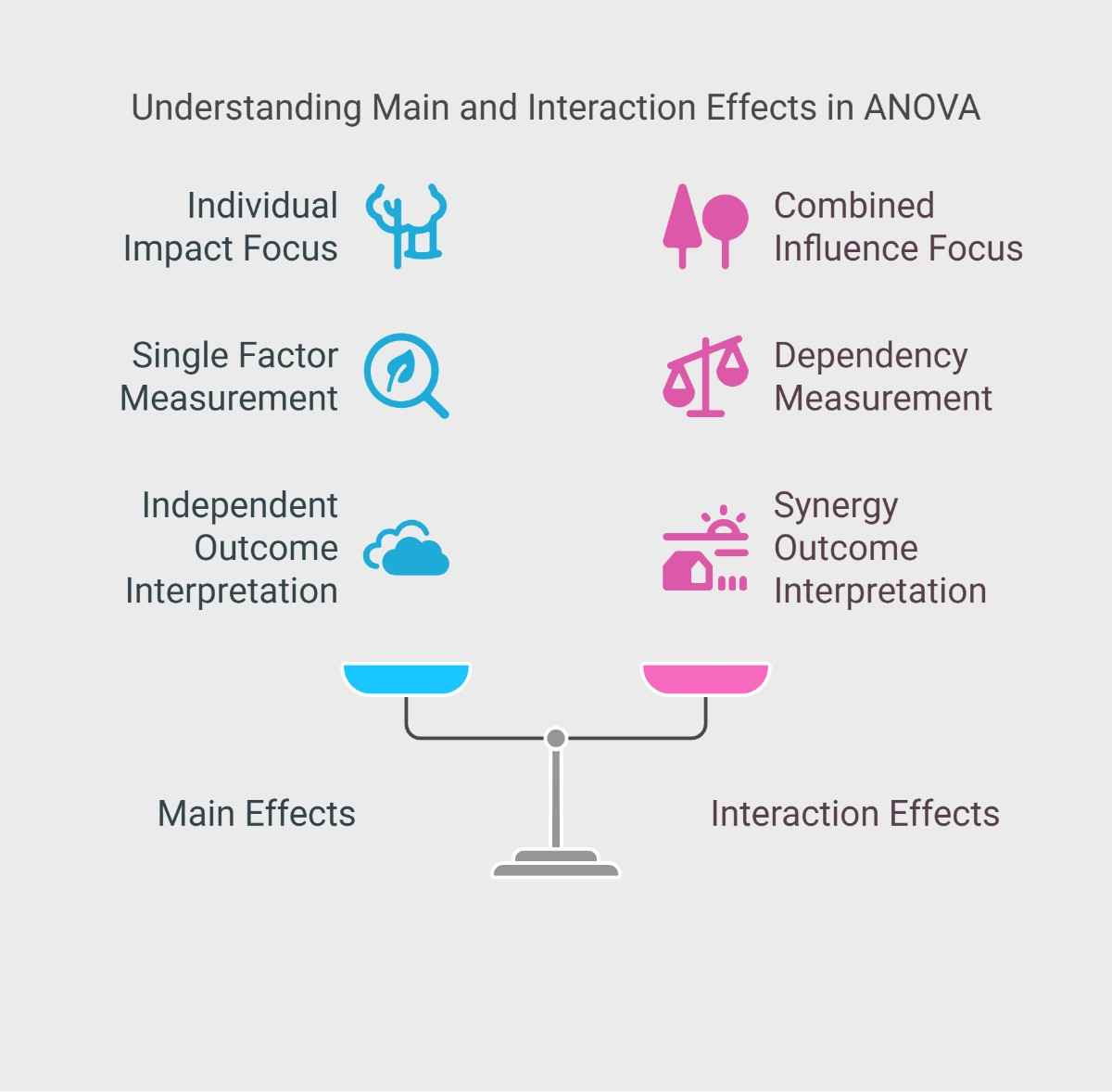

Main Effects vs Interaction Effects:

• Main Effects: These measure the individual impact of each factor on the outcome.
• Interaction Effects: Occur when the effect of one factor depends on the level of the other factor, indicating a combined influence.
  Example:
  In an experiment evaluating the effects of teaching methods and study time on students' test scores, the main effects would be the individual impacts of each factor. In contrast, the interaction effect would assess whether the teaching method's effectiveness depends on the amount of study time.

Replication:

Replication in ANOVA, refers to repeating the experiment to ensure the results are reliable. It involves conducting the same experiment multiple times under identical conditions to confirm the consistency of the findings.

Ensures Statistical Robustness: By repeating observations, replication reduces random error and ensures that the results are not due to chance. This leads to more confident conclusions.

Example: Suppose you're testing the effects of teaching methods and study time. In that case, you might have multiple students per combination of factors (e.g., different teaching methods and study times) to ensure the findings are consistent across subjects.

When to Use ANOVA Two Factor with Replication?

Use the ANOVA Two Factor with Replication to analyze the impact of two independent variables on a dependent variable. It helps identify if there’s an interaction between the factors. Replication ensures reliable results by reducing random error. Here’s how it can be used:

Scenarios Requiring Analysis of Two Independent Variables:
ANOVA Two-Factor with Replication is ideal for analyzing the effects of two independent variables on a dependent variable and determining whether their interaction influences the outcome.

Examples of Experiments that Benefit from Replication:

• Testing the effects of various drug dosages and patient age on recovery rates.
• Evaluating how different teaching methods and study time affect student performance.

Now, explore how data mining functionalities can help you analyze complex datasets more effectively.

Difference Between One-Factor and Two-Factor ANOVA

Here is the content converted into a table format:

Now, explore how data mining functionalities can help you analyze complex datasets more effectively.

How to Perform ANOVA Two Factor with Replication?

ANOVA Two Factor with Replication is used to analyze the impact of two independent variables on a dependent variable while accounting for replication in the data. This method helps in understanding the main effects and interactions between the factors on the outcome.

Below are the steps involved in performing an ANOVA Two Factor with Replication analysis:

Step 1: Define the Hypotheses

• Null Hypothesis for Each Factor:
  • Factor 1 (e.g., teaching methods): There is no significant effect of teaching methods on test scores.
  • Factor 2 (e.g., study time): Study time does not significantly affect test scores.
• Null Hypothesis for Interaction:
  • There is no significant interaction between teaching methods and study time.

Step 2: Collect and Organize Data

Organize the data by creating a matrix that includes each combination of factors (teaching method and study time) and their corresponding measurements (test scores). Ensure that replication (multiple observations) is included for each factor combination.

Example:

• Factor 1 (Teaching Method): Online, Traditional
• Factor 2 (Study Time): 1 hour, 3 hours
• Measurements: Test scores for each student (multiple students for each combination).

Step 3: Compute Key Components

• Sums of Squares (SS):
  • SS for Factors: Measure the variability due to each factor.
  • SS for Interaction: Measure the variability due to the combined effect of the two factors.
  • SS for Within Groups (Error): Measure the unexplained variability (variability within each group).
• Degrees of Freedom (df):
  • For each factor: df = Number of levels of the factor - 1.
  • For interaction: df = (df of Factor 1) * (df of Factor 2).
  • For error: df = Total number of observations - number of groups.
• Mean Squares (MS):
  MS is calculated by dividing the sum of squares by the degrees of freedom for each factor and error term.

Step 4: Calculate F-statistics

• For each factor and interaction effect, calculate the F-statistic using the formula:

                  F=MS of Error/MS of Factor​

• To determine the significance, compare the calculated F-statistic with the critical value from the F-distribution table or calculate the p-value.
  • If the calculated F-statistic is greater than the critical value or if the p-value is less than the significance level (usually 0.05), reject the null hypothesis.

Step 5: Interpret Results

• Main Effects:
  • If the p-value for either factor is less than the significance level, it indicates that the factor significantly affects the dependent variable (e.g., test scores).
  • For instance, if the p-value for study time is less than 0.05, you can conclude that study time significantly impacts test scores.
• Interaction Effect:
  • If the p-value for the interaction is less than the significance level, it indicates that there is a significant interaction between the two factors.
  • For example, if the interaction between teaching method and study time is significant, it suggests that the effect of study time on test scores depends on the teaching method used.

Example Walkthrough

Let’s say you are testing the effect of two factors—teaching method and study time—on test scores.

• Factor 1: Teaching Method (Traditional, Online)
• Factor 2: Study Time (1 hour, 3 hours)
• Dependent Variable: Test scores
• Data Collection: Collect test scores for 3 students for each combination of teaching method and study time.

Calculation Example:

1. The sum of Squares for Factors:
   • Calculate SS for Teaching Method, Study Time, and their Interaction.
2. Degrees of Freedom:
   • Factor 1 (Teaching Method): 2 - 1 = 1
   • Factor 2 (Study Time): 2 - 1 = 1
   • Interaction: 1 * 1 = 1
   • Error: Total number of observations - 4 (groups) = 8 - 4 = 4
3. F-Statistic:
   • Compute the F-statistics for each effect (main effects and interaction) and compare them to the critical value.

By following these steps, you can determine whether the teaching method, study time, or their interaction has a significant effect on test scores.

Alright, let's dive into how you can implement ANOVA Two Factor with Replication using different tools!

Also Read: What is Decision Tree in Data Mining? Types, Real World Examples & Applications

How to Implement ANOVA Two Factor With Replication?

Implementing ANOVA Two Factor with Replication involves several steps, and you can use various software tools or even perform manual calculations. Excel, Python, R, or SPSS are all useful tools for carrying out the necessary statistical tests. Additionally, understanding the process of manual calculation can deepen your understanding of the underlying statistical concepts.

Using Software Tools

Excel

To implement ANOVA Two Factor with Replication in Excel, the first step is to enable the Data Analysis ToolPak. Here’s a quick guide:

1. Enable Data Analysis ToolPak:
   • Go to File > Options > Add-ins. At the bottom, select Excel Add-ins from the dropdown, then check Analysis ToolPak and click Go.
2. Enter Data:
   • Organize your data in a format with rows representing different factor combinations and columns for each measurement (e.g., test scores).
3. Perform ANOVA:
   • Go to Data > Data Analysis > ANOVA: Two-Factor with Replication.
   • Select the data range, specify the number of rows per replication, and click OK.
4. Interpret Output:
   • Excel will output an ANOVA table with sums of squares, mean squares, F-statistics, and p-values for each factor and the interaction.
   • Interpretation: If the p-value is less than 0.05, reject the null hypothesis for that factor or interaction.
     Example: If you're analyzing study time and teaching method, a low p-value for study time indicates its significant impact on test scores.
     (This process applies to ANOVA two-factor with replication Excel.)

Python

You can use the statsmodels library in Python to perform the ANOVA Two Factor with Replication. Here is an example:

import pandas as pd
import statsmodels.api as sm
from statsmodels.formula.api import ols

# Sample Data
data = {
    'Teaching_Method': ['Traditional', 'Traditional', 'Traditional', 'Online', 'Online', 'Online'],
    'Study_Time': ['1 Hour', '3 Hours', '1 Hour', '3 Hours', '1 Hour', '3 Hours'],
    'Test_Score': [70, 85, 75, 95, 78, 92]
}
df = pd.DataFrame(data)

# Fit the model
model = ols('Test_Score ~ C(Teaching_Method) + C(Study_Time) + C(Teaching_Method):C(Study_Time)', data=df).fit()

# Perform ANOVA
anova_table = sm.stats.anova_lm(model, typ=2)
print(anova_table)

The output provides F-statistics and p-values for each factor and the interaction.

R

In R, the aov() function is commonly used to perform ANOVA Two Factor with Replication. Here's an example:

# Sample Data
data <- data.frame(
  Teaching_Method = rep(c('Traditional', 'Online'), each=3),
  Study_Time = rep(c('1 Hour', '3 Hours'), times=3),
  Test_Score = c(70, 75, 80, 85, 90, 88)
)

# Run ANOVA
result <- aov(Test_Score ~ Teaching_Method * Study_Time, data=data)
summary(result)

The summary() function provides the F-statistics and p-values for the main effects and interaction.

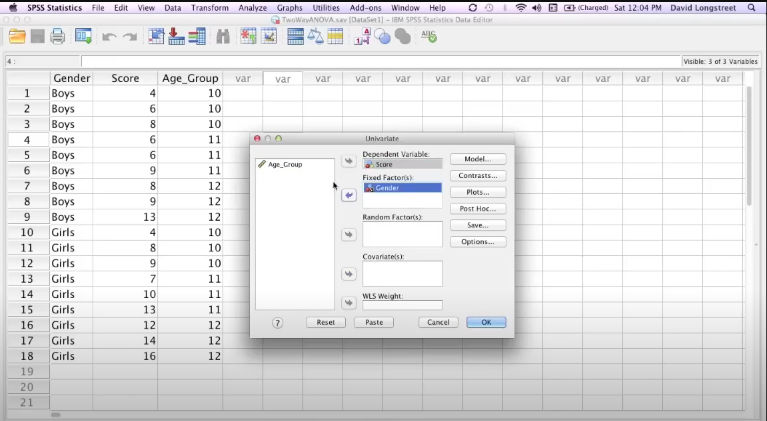

SPSS

In SPSS, you can perform ANOVA Two Factor with Replication using the menu options.

1. Enter Data:
   • Organize your data in the SPSS Data View, with columns for factors and measurements.
2. Perform ANOVA:
   • Go to Analyze > General Linear Model > Univariate.
   • Choose your dependent variable and independent variables (factors).
   • Click on Options to select Descriptive Statistics and Estimates of Effect Size.
3. Interpret Output:
   • SPSS will generate an ANOVA table, displaying the F-statistics and p-values for the main effects and interaction.
   • If the p-value is less than 0.05, you can conclude that the effect of the factor is statistically significant.

Next, unravel the intricacies of performing this analysis manually for a solid grasp of the concepts involved.

Manual Calculation

To calculate ANOVA Two Factor with Replication manually, follow these steps:

1. Calculate the Sums of Squares (SS):
   • SS for Factor 1: Measure the variation due to the levels of Factor 1 (e.g., teaching method).
   • SS for Factor 2: Measure the variation due to the levels of Factor 2 (e.g., study time).
   • SS for Interaction: Measure the variation due to the combined effect of both factors.
   • SS for Error (Within Groups): Calculate the unexplained variation (within each group).
2. Calculate Mean Squares (MS):
   • For each factor and error, divide the sum of squares by its corresponding degrees of freedom.
3. Calculate the F-statistics:
   • For each factor and the interaction effect, divide the mean square by the mean square of error.

Example Walkthrough:

1. SS for Factors: Calculate SS for Teaching Method and Study Time.
2. SS for Interaction: Calculate the SS for the interaction effect.
3. SS for Error: Calculate SS for the error term.
4. Degrees of Freedom (df):
   • Factor 1 (Teaching Method): df = 1
   • Factor 2 (Study Time): df = 1
   • Interaction: df = 1
   • Error: df = Total observations - number of groups.

Once all sums of squares and degrees of freedom are calculated, compute the mean squares and F-statistics. Use F-distribution tables to determine the significance of the factors.

By following these steps, you can perform ANOVA Two Factor with Replication manually or using software tools like Excel, Python, R, or SPSS. Each method provides insights into the impact of two independent variables and their interaction on the dependent variable.

Also Read: Data Mining vs Machine Learning: Major 4 Differences

Pros and Cons of ANOVA Two Factor With Replication

ANOVA Two Factor with Replication is a powerful statistical method used to analyze the effect of two independent variables on a dependent variable. It can uncover not only the main effects but also the interaction between factors. However, like any statistical test, it has its advantages and limitations.

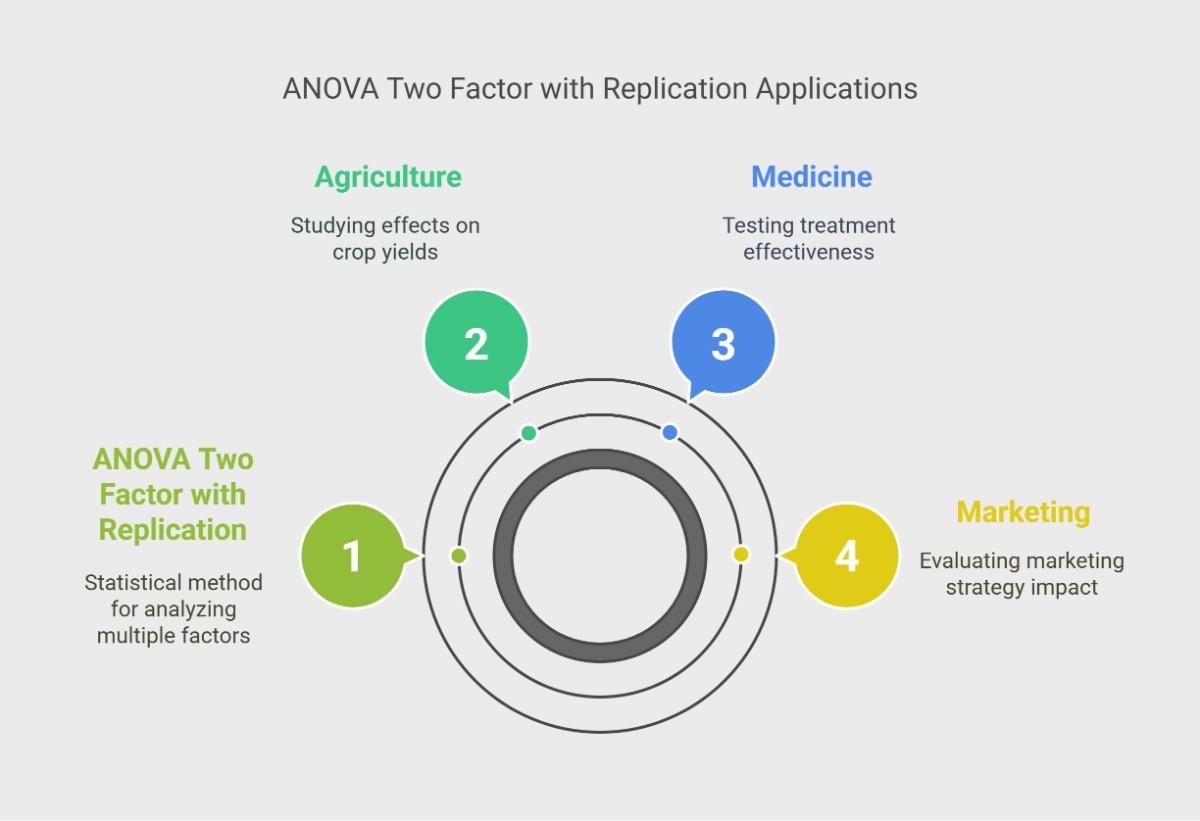

What are the Real-World Use Cases of ANOVA Two Factor With Replication?

ANOVA Two Factor with Replication is used in various fields where multiple factors influence an outcome. Here are a few examples of how this method is applied across different industries:

Agriculture

In agriculture, ANOVA Two Factor with Replication is commonly used to study the effects of different farming techniques and environmental conditions on crop yields. The fields of technology and IoT have revolutionized the world of agriculture.

• Example: Analyzing how different fertilizers (factor 1) and irrigation methods (factor 2) affect plant growth across multiple plots of land. Replication ensures that the variability due to environmental factors is accounted for.

Medicine

In medical research, this method helps in testing the effectiveness of various treatments and how they interact with different patient characteristics.

• Example: A study on the effectiveness of two drugs (factor 1) and dosage levels (factor 2) in treating a specific disease, with multiple patient groups per combination to ensure robustness.

Marketing

In marketing, the ANOVA Two-Factor with Replication evaluates how different marketing strategies interact with various customer segments to influence sales.

• Example: Investigating how advertising channel (TV vs. online) and campaign duration (1 month vs. 3 months) affect customer engagement across multiple campaigns.

These applications illustrate how ANOVA Two Factor with Replication can be an invaluable tool for exploring the complex relationships between multiple factors and their impact on outcomes in real-world settings.
