Data Types in Tableau Explained: Use Cases and Practical Examples

Compared to previous versions, Tableau 2025.1 is more efficient with smarter data insights, faster decision-making, and improved workflow efficiency.

In Tableau, data types categorize values into specific categories, such as characters (e.g., ‘Vansh’), integers (e.g., 108), or floating-point types (e.g., 1.854). The platform automatically detects and assigns data types to fields as soon as the data is uploaded.

Using the correct data type is crucial, as incorrect data types can lead to chart errors, filter issues, or misleading results, affecting the accuracy of your analysis.

This blog explores various data types in Tableau, their use cases, and practical Tableau examples to help you understand how they impact your visualizations.

What Are the Data Types in Tableau? Key Insights

In Tableau, data types define how columns are interpreted and used in analysis. They include:

• Text, numbers, dates, and Booleans which determine how Tableau processes and displays data
• Auto-detection where Tableau assigns data types based on the first 10,000 rows in Excel or 1,024 rows in CSV files
• Impact on analysis since incorrect data types can cause fields to be treated as dimensions or measures inaccurately, affecting results

Understanding these types is critical across fields like Business Intelligence, Machine Learning, and Data Analytics to avoid data misinterpretation. Let’s explore each type with practical examples.

1. String or Text Type: When to Use It?

The String or Text data type in Tableau is ideal for handling alphanumeric values, which can include letters, numbers, and special characters. It is crucial when your data involves text such as names, addresses, descriptions, or any non-numeric identifiers. Strings are stored within quotes (either single or double) and can be divided into two types: Char and Varchar.

• Char: This type ensures that all entries are uniform in length, which is useful when the data is consistent and doesn't vary in size. However, if the data exceeds the fixed length, it can result in errors.

Example: Fixed-length strings, such as a 10-character code like "A123456789".

• Varchar: Variable-length strings allowing flexibility in storage without restrictions on length. It ensures there are no restrictions on the length of the input, allowing for easier handling of diverse data entries.

Example:  Variable-length strings, like "Hello World!" or "GeeksforGeeks"

How Can You Use String Values in Tableau?

• Alphanumeric Power: Strings in Tableau can handle both letters and numbers in one field, making them ideal for product codes or mixed data. For example, “Order123" or "Product45".
• Sorting and Filtering: You can easily sort locations alphabetically or apply custom filters to analyze specific regions or states, making comparisons easier. For example,  "California", "New York", and "Texas".

• Concatenation Magic: Concatenation Magic allows you to merge first and last names into a single field, making it easier to display or analyze full names. For example, "John" + " " + "Doe" becomes "John Doe".
• Formatting Flexibility: Tableau allows you to customize the font styles, sizes, and colors during data visualization. This will enhance visual clarity in your reports and dashboards. However, it cannot directly format text inside calculator fields.In this Tableau example, "Product A" is changed to bold or red.

Below is a Tableau code example that demonstrates how to use string data types in Tableau with real-world scenarios like concatenation, sorting, and formatting. You can use these codes directly in Tableau's calculated fields.

Practical Example of Using String or Text Type in Tableau

1. Concatenation of First and Last Name

To create a full name by combining first and last names:

Tableau Code:

[First Name] + " " + [Last Name]

This code concatenates the First Name and Last Name fields, adding a space in between. You can use this in a calculated field to create a single field that shows the full name.

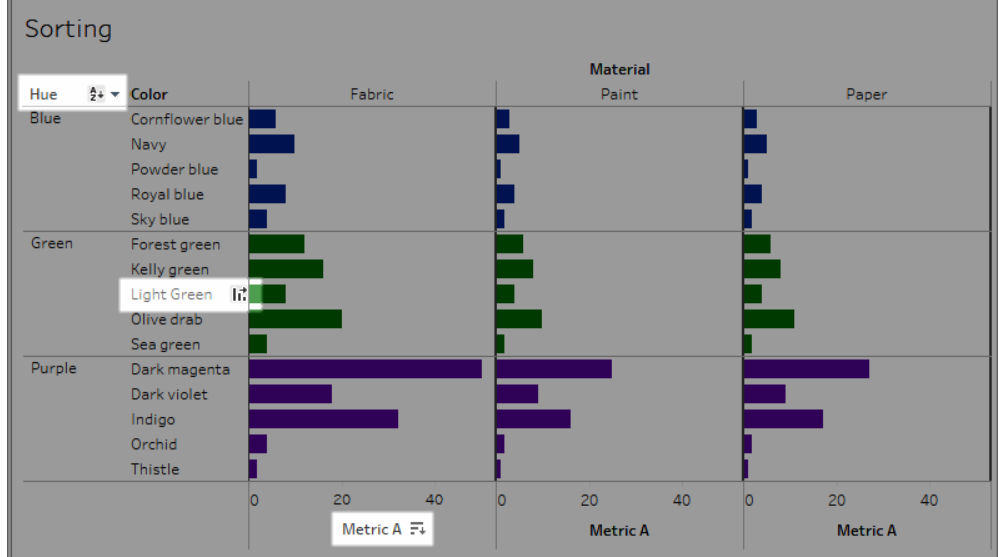

2. Sorting Text Data Alphabetically

If you want to sort a list of cities or states alphabetically, you don’t need additional code. However, for custom sorting, you can use this calculation:

Tableau Code for Custom Sorting:

IF [Location] = "Delhi" THEN 1
ELSEIF [Location] = "Indore" THEN 2
ELSEIF [Location] = "Bangalore" THEN 3
ELSE 4
END

This code assigns numeric values to locations, ensuring they are sorted in a custom order. You can use this calculation to control the sorting order of text fields like location names.

3. Changing Text to Uppercase (String Formatting)

To format text in uppercase for standardization or emphasis:

Tableau Code:

UPPER([Product Name])

This code will convert all characters in the Product Name field to uppercase. It’s useful if you want all product names displayed in uppercase letters in your report.

4. Trimming Leading or Trailing Spaces from Strings

If you have text fields with unwanted spaces, you can clean them using TRIM():

Tableau Code:

TRIM([Product Name])

This code removes any leading or trailing spaces in the Product Name field. It’s especially helpful for cleaning up data before displaying it in your visualizations.

Example Output (Using the Code Above):

In the Full Name column, you get the concatenated first and last names. The Custom Sort Order column is used to control the sorting order of the locations. The Uppercase Product Name column displays the product names in uppercase.

2. Number Type: Whole and Decimal Values

In Tableau, numerical data includes both whole numbers (integers) and decimal values (floating-point numbers). While integers are often easier to manage, especially in large datasets, decimals provide the precision needed for financial or scientific calculations.

Tableau supports both types and offers built-in functions, such as ROUND(), to help control how decimal values are displayed. Numbers are treated as measures in Tableau, unless it is converted into other dimensions manually.

• Aggregation and Summation: Utilize built-in functions such as SUM(<measure>), AVG(<measure>), or MIN(<measure>) to perform basic statistics and summarize your data.

             Example: Total sales revenue across regions.

Tableau Calculation

SUM([Revenue])

This calculation sums the revenue across different regions, giving you the total revenue.

• Comparative Analysis: Break down numerical data across categories to find trends, outliers, or patterns.

            Example: Compare monthly sales figures between product lines.

Tableau Calculation

SUM([Sales])

By comparing sales across product categories, you can identify which product lines are performing better.

• Filtering and Sorting: Use numerical fields to filter data ranges or sort charts by highest or lowest values.
  Example: Filter orders with a value greater than ₹50,000.

Tableau Calculation:

IF [Order Value] > 50000 THEN "High Value" ELSE "Low Value" END

This logic will help filter out high-value orders.

• Rounding Decimal Values: Apply the ROUND(number,  [decimals]) function to control how many decimal places are displayed.
  Example: Round off the average order value to two decimal places.

Practical Example of Number Type

Suppose you have data on employee salaries across different departments, and you want to analyze the total salary expense and compare it across departments.

To calculate the total salary expense for the company, you would use:

SUM([Salary])

To compare the average salary across departments:

AVG([Salary])

If you want to filter departments with salary expenses greater than ₹55,000:

IF [Salary] > 55000 THEN "Above Average" ELSE "Below Average" END

These calculations would give you the total salary expense, allow you to compare average salaries across departments, and filter departments based on salary thresholds.

3. Boolean Type: True or False Data

Boolean data types in Tableau represent binary outcomes, that is, either True or False. These values often result from relational or logical calculations, such as comparisons between fields or values. When a condition cannot be evaluated (such as comparing with a missing value), Tableau assigns a Null Value. Boolean fields are especially useful for simplifying data analysis into two distinct categories. This helps you focus on specific conditions or groupings.

How to Use Boolean Values in Tableau:

• Categorical Filtering: Filter views based on a True or False condition to focus on relevant records.
  Example: Show only customers with purchases over ₹10,000 (Purchase > 10000 = True).
• Logical Calculations: Use Boolean logic in calculated fields to create new dimensions or flags.
  Example: IF Profit > 0 THEN TRUE ELSE FALSE to flag profitable transactions.
• Binary Grouping: Create clear-cut groups in visualizations, such as yes/no or success/failure.
  Example: Group orders into “Delivered On Time” vs “Delayed” using [Delivery Date] <= [Expected Date].

Practical Example of Using Boolean Data Types in Tableau

Imagine you’re analyzing employee performance and you want to flag whether an employee has met their sales target. You could create a Boolean field to categorize each employee as either True (Target Met) or False (Target Not Met).

Step 1: Logical Calculation

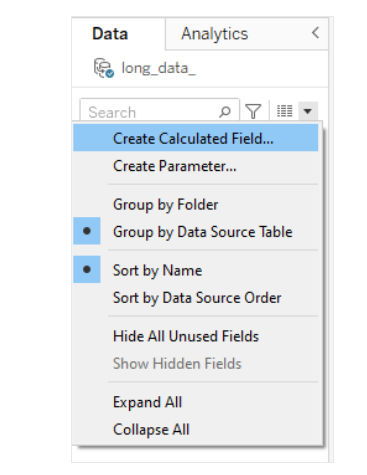

Create a calculated field to evaluate whether an employee's sales exceeded the target:

IF [Sales] >= [Target] THEN TRUE ELSE FALSE

Step 2: Apply Boolean Filter

You can now filter your view based on the True or False values. For instance, you can show only employees who met their target (True) by filtering the calculated field.

Example Output (Using the Code Above):

4. Date and DateTime: Time-Based Fields

Tableau automatically recognizes time-based fields as Date or DateTime data types, supporting formats like dd-mm-yyyy or mm-dd-yyyy. It allows you to work with units such as years, months, days, hours, minutes, and seconds. The treatment of these fields as discrete or continuous has a significant impact on how Tableau visualizes the data.

For instance, discrete dates are typically represented by bar charts, while continuous dates are better suited for line charts. These fields are key for analyzing trends, tracking changes, and building time-based visualizations.

How to Use Date and DateTime Values in Tableau?

• Precision Analysis: Break down time data into smaller units, such as hours or seconds, to explore detailed event patterns.
  Example: Analyze website logins by hour to identify peak activity times.

Tableau Calculation:

HOUR([Login Time])

• Combined Temporal Insights: Use DateTime to merge both date and time for more accurate analysis.
  Creating Track de, livery completion down to the minute using combined date and time fields.

Tableau Calculation:

[Delivery Date] + " " + [Delivery Time]

• Time-Series Visualizations: Plot data over time to identify trends, seasonality, or anomalies.
  Example: Visualize monthly revenue growth using a line chart with the order date on the x-axis.

Tableau Setup: Simply drag the Order Date field to the x-axis and Revenue to the y-axis to generate a line chart that shows revenue trends over time.

Result of the Above Codes

To visualize monthly revenue growth, you would use a line chart with Sales Date on the x-axis and Sales Amount on the y-axis. Tableau will automatically treat the Sales Date as a continuous Date field, allowing you to see the monthly revenue trend and spot any seasonality or growth patterns.

If you want to break down sales by hour of the day, you can extract the hour from a Sales Timestamp and then create a bar chart to analyze peak sales hours. This enables you to track sales patterns more effectively throughout the day.

5. Geographic Type: Maps and Locations

Geographic data types in Tableau include values like country, state, city, postal code, and region. These values represent spatial information and are automatically recognized for mapping. Tableau utilizes them to generate map-based visualizations, enabling users to analyze data distribution across locations. It is especially helpful when geographic patterns or regional trends are critical to the analysis.

How to Use Geographic Values in Tableau?

• Mapping Data Points: Drag a geographic field (like City, Country, or Postal Code) onto the Rows or Columns shelf, or directly onto the canvas. Tableau will automatically generate a map view.
  Example: Drag “City” into the view and “Sales” into Size to see which cities generate the most revenue.
• Spatial Aggregation: Utilize geographic dimensions (such as Region or State) along with measures to group and compare data across different areas. Apply color, size, or labels to highlight differences.
  Example: Drag “State” to the view, then “Profit” to Color to compare state-wise profitability.
• Custom Geocoding: Go to Map > Geocoding > Import Custom Geocoding to upload your location data, such as latitude and longitude. This lets you visualize locations not covered by default. While this is a rarely used advanced feature, it is now often replaced by Lat/Long mapping or Map Layers for more efficient location visualization.
  Example: Use custom coordinates to map service areas or store locations not recognized by Tableau.

Managing is not an easy task. Companies are looking for project managers who can plan, execute, and oversee a project within a fixed budget and time. But not everyone is able to do that; It requires experience.

6. Cluster and Set: Special Grouping Types

In Tableau, clusters and sets help organize data that doesn’t fit into a single type or category. Cluster groups are automatically created by Tableau based on similarities among data points, making it easier to identify patterns and trends. Sets, on the other hand, are user-defined subsets of data based on conditions or selections. Both tools help simplify analysis and focus on specific segments without requiring manual filtering or data grouping.

How to Use Cluster & Set Values in Tableau:

• Automatic Clustering: Drag a dimension (such as Customer or Product) into the view, then navigate to Analytics Pane > Cluster and drop it onto the canvas. Tableau automatically groups similar data points.
  Example: Cluster customers based on sales and profit to identify high-value segments.
• Spotting Trends and Outliers: After clustering, use color or size to highlight patterns or anomalies within the groups.
  Example: Use color to distinguish between high-profit and low-profit clusters in a scatter plot.
• Creating Sets: Right-click on a dimension and choose Create > Set. Define conditions manually or select data points directly in the view to form a set.
  Example: Create a set of the top 10 customers by revenue to focus analysis on key accounts.
• Static vs Dynamic Sets: Sets can be static (fixed list) or dynamic (based on conditions or filters). Dynamic sets automatically update when filters or conditions change, offering more flexibility for interactive dashboards.
  Example: Use a dynamic set to track customers who have made purchases within the last 30 days.
• Using Sets in Filters and Calculations: Drag the set to the Filters shelf or use it in calculated fields to build more targeted dashboards.
  Example: Use a set to compare purchase behavior between repeat customers and one-time buyers.

Duration and Time Fields in Tableau

Tableau does not offer a native data type for "duration" or "time only." Instead, all time-related data is handled through the Date & Time data type, which includes both components. While Tableau doesn’t natively support time as a separate type, users can still work effectively with time by using DateTime calculations and manually extracting the time portion using functions such as HOUR(), MINUTE(), and SECOND().

How to Work with Duration and Time Values in Tableau:

• Extract Time from Date & Time:
  Use the TIME() function or DATETIME() formatting to isolate the time part of a timestamp.
  Example: TIME([DateTime Field]) gives just the time portion, like 14:30:00.
• Format Time Display:
  Right-click the field in the view > Format > choose a custom time format like hh:mm:ss to show only the time.
  Example: Display event start times without showing the date.
• Calculate Duration Between Two Timestamps:
  Use DATEDIFF('second', [Start Time], [End Time]) to get the total duration in seconds.
  Example: Calculate how long a user session lasted.
• Convert Seconds to h:mm:ss Format:
  Create a calculated field to break down seconds into hours, minutes, and seconds:
  • Hours: INT([Seconds] / 3600)
  • Minutes: MOD(INT([Seconds] / 60), 60)
  • Seconds: MOD([Seconds], 60)
    Then combine these using string functions to display as [h]:mm:ss.
     Example: " + STR(INT([Seconds]/3600)) + ':' + RIGHT('0' + STR(MOD(INT([Seconds]/60),60)),2) + ':' + RIGHT('0' + STR(MOD([Seconds],60)),2)"

These workarounds allow you to visualize durations and time-only values effectively, even without built-in support for these types.

How Tableau Deals with Missing or Null Data

Tableau can automatically recognize and fill in missing data, provided there is a clear and continuous domain, such as a series of dates or numerical bins.

Example: if your data includes values for January, February, May, and June, Tableau can infer that March and April are missing and fill them in when you enable “Show Missing Values”. This works because dates follow a known sequence.

However, suppose your data is a list of non-ordered categories, such as Indian states like Maharashtra, Kerala, and Gujarat. In that case, Tableau cannot guess the missing states (e.g., Tamil Nadu or Punjab), since there is no defined order or range.

But what is the difference between Missing data and Null data? Let’s find out.

Understanding Missing Data & Null Data

Missing data refers to values that are absent but could be inferred from a sequence or pattern, while null data represents an undefined or unknown value. Understanding the distinction is important for accurate data analysis and visualization in Tableau. Let’s understand it more deeply with the table below:

• Missing Data: In the above table, Wednesday is missing as a column in the data set. This is called Missing data.
• Null Data: In the above table, Friday is present as a column, but the value column is empty. This is called Null data.
• Pro Tip: By default, Tableau hides (does not display) empty rows or columns in your view. To make them visible, go to Analysis > Table Layout and select Show Empty Rows or Show Empty Columns as needed.

How to Deal with Null and Missing Data in Tableau?

By default, Tableau ignores null values when performing calculations, such as sums or averages. This means that they do not affect aggregated results unless explicitly handled. You can handle or replace null values in Tableau using built-in functions such as IFNULL, ISNULL, and ZN.

Tableau Functions:

• IFNULL(value, replacement): Replaces null values with a specified alternative value. It's applicable across various data types.

  Example: IFNULL([Sales], 0) replaces null sales values with zero.

• ISNULL(expression): Checks if a value is null and returns TRUE if it is, or FALSE otherwise.

   Example: ISNULL([Profit]) returns TRUE if the profit is null.

• ZN(expression): Replaces numeric null values with zero, ensuring calculations don't break due to missing values.

  Example: ZN([Revenue]) converts null revenue values to zero, ensuring that calculations such as sums or averages are not affected.

Filtering:
You can filter out null values by selecting the "Special" option in the filter pane, which allows you to show only non-null values or exclude them altogether.

Showing Missing Values:
To visualize missing data on a time axis or any continuous dimension, enable the "Show Missing Values" option. This will display the gaps in your data for more precise analysis.

Table Calculations:
Use table calculations, such as PREVIOUS_VALUE(), in combination with functions like IFNULL to replace null values with the last non-null value, thereby preserving the data flow.

Example:
If you have a sales column with some missing data, you can use the ZN() function to replace null values with zero. This ensures a more accurate representation of total sales. Alternatively, use IFNULL() to replace null values with a placeholder, such as "Data Unavailable" or a custom message, making the data more user-friendly.

Now that you have learned about the various types of data, let's explore how to change data types manually in Tableau to optimize your visualizations and analyses.

How to Change Data Types Manually in Tableau?

In Tableau, you can manually change the data types of fields to better suit your analysis. This flexibility is beneficial when Tableau doesn't automatically assign the desired type during the data connection. You can change data types directly in the Data Source pane or within the view itself. Use the Data Source pane for permanent changes and the View pane for quick visual corrections.

Here’s how you can do it:

Detailed Steps:

1. Open Tableau and Navigate to the Data Source Pane:
Launch Tableau Desktop and open your workbook. Go to the Data Source pane where your dataset is displayed.

2. Locate the Field:
Find the field (column) for which you want to change the data type.

3. Change Data Type in Data Source Pane:
Click the small icon next to the field name, which indicates its current data type. A dropdown menu will appear with different data types. Select the new data type you want.
Tableau will automatically adjust the data based on the new type.

4. Change Data Type in the View:
Right-click on the field in the view (like a worksheet). From the context menu, select the appropriate option (e.g., Dimension or Measure), and then choose the desired data type.

When working with data types in Tableau, it is essential to understand the distinction between automatic and manual data types.  Also, you should be aware of terms like calculated fields, data loss, and error. Let’s look at it.

Automatic vs Manual

While Tableau automatically detects data types when you connect to data, you can override this behavior with the manual methods above. Auto-detection may behave differently across sources. For instance, Excel files consider the first 10,000 rows, while CSV uses only the first 1,024.

 For instance, if you import a column of sales data, Tableau will automatically assign it as a Number type. However, if the data is mistakenly detected as a String, you can manually change it.

Here are the steps to do it:

• Go to the Data Source pane.
• Click the data type icon next to the sales field.
• From the dropdown menu, select Number (Whole) or Number (Decimal) as appropriate.

Example: You have a sales field with numbers stored as text (string). Manually changing the data type from String to Number (Decimal) allows you to perform proper summation or averaging.

Calculated Fields

You can change data types within calculated fields using the proper syntax. To convert a string value to a number, create a calculated field. It is a user-defined field created using formulas or expressions based on existing fields in your data. For example, you can use functions like INT([StringField]) or FLOAT([StringField]) within the calculation. This allows you to transform data types based on your analysis needs.

Here is how to do it:

• Right-click the calculated field or create a new calculated field.
• Use the conversion function, such as INT([StringField]) or FLOAT([StringField]), to convert the string to a number.

Example: If you have a field with "100" as a string, use INT([Sales]) in a calculated field to convert the string value to an integer.

Data Loss or Errors

Be careful when changing between string and numeric data types. If you try to change a column with mixed values (like "Sales" with both text and numbers) from String to Number, Tableau may result in errors or unexpected data behavior.

Steps:

• Identify columns with mixed values (e.g., text values alongside numeric values).
• Before changing the data type, clean the data by replacing non-numeric entries or using calculated fields to parse and convert the data accurately.

Example: You have a "Sales" column with both numeric values and text like "N/A" or "Invalid". If you change the data type to Number, it will cause errors unless you clean the data. You can use IF ISNUMBER([Sales]) THEN INT([Sales]) ELSE 0 END to replace invalid sales data with 0 before changing the type. You can also use more robest option  IF CONTAINS([Sales], "N/A") THEN 0 ELSE INT([Sales]) END

Also Read: Top 14 Data Analytics Trends Shaping 2025

Common Challenges with Data Types in Tableau

One of the most common challenges in Tableau is dealing with mixed data types within a single column. For instance, if a column contains both numbers and text, Tableau may automatically assign a single data type based on the first few rows, leading to inaccurate analysis. Additionally, data blending from different data sources can lead to aggregation errors.

These issues can lead to incorrect analysis, aggregation errors, and misleading visualizations if not appropriately handled. Let’s look at some of these challenges.

Here are some of the common challenges or mistakes in the data type Tableau:

• Incorrect Data Type Interpretation: Tableau automatically tries to assign a data type based on the values in each field. However, it can misinterpret fields with mixed data types.

  Example:  If a column contains both numbers and text, Tableau might automatically classify it as a String, which can affect subsequent calculations and aggregations.

  Solution: To fix this, manually change the field’s data type in Tableau’s Data Source pane. You can also use calculated fields to convert data types explicitly.

  Steps to fix: Right-click the field in the Data Source pane, select Change Data Type, and choose the appropriate type, such as Number (Integer) or String.

• Mixed Data Types (Cluster/Mixed Values) & Impact on Analysis & Reporting: When fields contain mixed data types, such as numbers combined with text or dates with times, Tableau can struggle to process them correctly. This could lead to errors in analysis.

  Example: Attempting to sum a field with mixed data types (e.g., "50" and "Error") will result in an error because Tableau cannot perform mathematical operations on text data.

  Solution: Separate the mixed data types into different columns or use calculated fields to clean the data. Create a new calculated field in Tableau that explicitly converts the data using functions such as INT(), FLOAT(), or STR()

  Steps to fix: Create a calculated field to separate or convert the data into the correct type. For instance, use INT([Sales]) to convert a text field to a number.

• Data Blending Limitations: When blending data from multiple sources, discrepancies in data types can disrupt aggregations or cause certain functions, such as MEDIAN or COUNTD, to malfunction. Ensuring that data types match across blended sources is crucial for maintaining accurate results.

  Example: Blending a Number field with a String field can cause these functions to return incorrect or null values.

  Solution: Ensure that data types match across blended data sources before combining them.

  Steps to fix: In Tableau’s Data Source pane, ensure both sources have consistent data types for the field you're blending. If necessary, use calculated fields to convert mismatched data types.

How to Fix Other Data Type Errors Easily?

Fixing data type errors in Tableau involves identifying the root cause and applying simple adjustments. You can correct errors in Tableau by reassigning data types, creating a separate column, or cleaning your data for consistency. Let’s look at some of the methods to fix the data type errors.

• Creating Separate Columns: For fields with mixed data types, make separate columns to handle different data types independently. Creating separate columns prevents Tableau from attempting to interpret incompatible values together.
• Data Preparation Tools: Tools like Tableau Prep Builder can clean and standardize data types before importing them into Tableau. This ensures consistency across your dataset. You can do it by selecting the field, clicking on the data type icon, and choosing the appropriate type from the dropdown menu. Do it before exporting the data to Tableau.

• Calculated Field for Missing and Null Data: Use calculated fields to convert or clean data types. For example, using DATEPARSE() to convert strings to date fields or IFNULL() to handle missing values.

  Example: Use DATEPARSE("yyyy-MM-dd", [Order Date]) to convert a string to a date format or IFNULL([Sales], 0) to replace missing sales data with zero.

• Group Data: You can group dimension members in Tableau to combine similar values and correct data errors or inconsistencies.

  Example: Grouping "NYC" and "New York City" into a single value can help standardize location data for more accurate analysis.

Also Read: Comprehensive Guide to Data Science Course Fees and Career Roadmap for 2025

By recognizing these challenges and implementing the solutions, you can maintain data integrity and avoid errors in your data visualizations. Now let’s look at some practical examples to understand data types in Tableau.

Practical Examples to Understand Tableau Data Types

Understanding Tableau data types is essential for accurate analysis and visualization. By using practical examples, you can see how different data types (such as numbers, strings, and dates), affect calculations, aggregations, and visualizations.

Let's explore some common scenarios to help clarify how Tableau handles various data types.

How to Use Location Data for Maps?

Geographic data in Tableau can be connected through spatial files (like shapefiles or geoJSON) or location data stored in spreadsheets, text files, or on servers. Spatial files contain geometries (points, lines, polygons), while text files or spreadsheets typically have latitude and longitude coordinates or named locations. Tableau can link this to its geocoding for mapping.

Purpose:

Industries such as retail, logistics, healthcare, and real estate utilize location data in Tableau to visualize spatial patterns, customer behavior, and regional performance.

Example: Retailers can identify high-performing areas for expansion, while healthcare providers can map patient distribution to improve service delivery. This enables the making of data-driven decisions for strategic planning and resource allocation.

Steps to Use Location Data for Maps:

• Step 1: Ensure Location Data Is Correct
  Ensure your dataset includes fields with location-based data, such as country, state, city, or postal code.
• Step 2: Assign Geographic Roles
  In Tableau, right-click on your location field and select Geographic Role to assign the appropriate geographic role (e.g., Country, State/Province, City).
• Step 3: Drag Location Field to Rows or Columns
  Drag the location field (e.g., City or Country) to either the Rows or Columns shelf to create a map visualization.
• Step 4: Select Map Visualization
  Tableau will automatically recognize location data and generate a map. If it doesn't, select the Map option from the "Show Me" panel.
• Step 5: Add Measures to Map
  Drag a measure (e.g., sales or profit) to the Color or Size shelf to visualize the data's intensity or distribution on the map.
• Step 6: Customize Map Appearance
  Use the map options to adjust the appearance, such as changing map styles, adding layers, or zooming in on specific regions for detailed analysis.

Making Time Charts with Date Fields

When date fields are used in Tableau visualizations, they come with special features like automatic date hierarchy drilldowns, date-specific filters, and formatting options. Date-based calculations typically require the use of specialized date functions for accurate analysis.

Purpose:

Time charts in Tableau, created using date fields, are essential for visualizing trends over time. Many industries, including finance, retail, and healthcare, rely on time-based charts to track performance, forecast trends, and make data-driven decisions. Time charts help identify patterns, such as seasonal changes, growth trajectories, or fluctuations in service demand.

Example: Hospitals use time charts to track patient admissions throughout the year, identifying peak periods and allocating resources accordingly.

Steps to Make Time Charts with Date Fields:

• Step 1: Ensure Your Data Includes Date Fields
  Make sure your dataset includes a field with date values, such as order date, transaction date, or service request date.
• Step 2: Drag Date Field to Columns or Rows
  Drag the date field onto the Columns or Rows shelf. Tableau will automatically generate a time-based axis, typically aggregating by year, quarter, or month.
• Step 3: Customize the Date Level
  Right-click the date field on the axis and select the appropriate level of detail, such as day, month, quarter, or year, depending on the analysis you need.
• Step 4: Add Measures to the Chart
  Drag a measure (like sales, revenue, or patient visits) to the Rows shelf to visualize how the measure changes over time.
• Step 5: Adjust the Chart Type
  Choose a line chart, bar chart, or other time-series visualization from the "Show Me" panel to represent your data best.
• Step 6: Customize and Format
  Use Tableau’s formatting options to customize the chart’s appearance, such as adjusting colors, labels, or adding trend lines.

Filtering Dashboards with Boolean Values

Filtering dashboards with Boolean values allows you to segment data into two distinct categories, such as "True" or "False." It is useful for focusing on specific conditions, like filtering out records with missing data or identifying high-performance versus low-performance segments.

Purpose:

Industries such as finance, healthcare, and marketing utilize Boolean filters to quickly drill down into specific datasets and make informed, targeted decisions.

Example: A marketing team might use a Boolean filter to show only "True" values for high-converting campaigns, helping them focus on top performers.

Summing and Averaging Numbers for KPIs

Summing and averaging numbers in Tableau is essential for calculating key performance indicators (KPIs) and gaining insights into overall performance.

Purpose:

Industries such as finance, sales, and healthcare use these metrics to track business success, evaluate employee performance, and measure service effectiveness. By aggregating data with sums or averages, businesses can make informed decisions based on real-time performance.

Example: A financial analyst might use the sum of monthly revenues to track overall company performance or the average return on investments (ROI) to evaluate the success of various financial strategies.

Steps to Sum and Average Numbers for KPIs:

• Step 1: Add a Measure to the View
  Drag a measure, such as Sales, Revenue, or Profit, to the Rows shelf to display the total or average.
• Step 2: Choose Sum or Average Aggregation
  Right-click the measure and select Sum or Average from the aggregation options to display the desired KPI metric.
• Step 3: Display KPIs
  Use Text Tables or Gauge Charts to display KPIs clearly in your dashboard, showing totals or averages for more straightforward interpretation.
• Step 4: Customize the View
  Adjust formatting, labels, or add color to highlight key performance changes or outliers.

By aggregating data with sums or averages, businesses can make informed decisions based on real-time performance.

Tips for Working Smoothly with Tableau Data Types

Tableau will often display a warning icon or prevent certain operations when data type mismatches occur.  For instance, if a field is misinterpreted, such as text in a numeric field, Tableau may display a warning icon or prevent calculations and aggregations.

Let’s look at some of the methods to prevent such errors.

• Always Check Data Types Before You Start: Ensure that Tableau has correctly interpreted the data types of your fields. Misinterpretation can lead to errors in calculations and visualizations.
  Example: If you import a date field but Tableau interprets it as a string, calculations like time-based aggregations won’t work. Ensure the date field is set to the Correct Date data type before starting any analysis.
• Use Clear Names for Better Organization: Rename fields to meaningful names to enhance the clarity and maintainability of your workbooks. You can do this in the Data pane or the Data Source tab. For example, right-click a field in the Data pane and select Rename to update its name for better organization. Alternatively, in the Data Source tab, click the field name and edit it directly to make your workbooks more organized.
  Example: Rename "Field1" to "Customer ID" or "Sales Amount" to make the field more intuitive. This helps both you and other users understand the data easily and keep track of it across multiple views.
• Clean and Prepare Data for Fewer Errors: Use Tableau Prep or built-in cleaning functions to clean and prepare your data before analysis.
  Example: Tableau Prep allows you to remove null values, convert text to proper cases, and merge duplicate fields, while built-in functions in Tableau can help standardize data formats and handle inconsistencies directly within your workbooks.
• Understand the Role of Dimensions and Measures: Recognize that dimensions are qualitative fields, such as Country, Customer, or Product, while measures are quantitative fields, including Sales, Profit, or Quantity. Understanding the difference is important because Tableau automatically aggregates measures but does not aggregate dimensions. This distinction affects how data is displayed and analyzed.
  Example: If you drag "Product" (enhancesn) to Rows and "Sales " facilitates the management of the tableau will show sales data for each product category, with the sales summed up for each product.

As a beginner, mastering the various data type concepts in Tableau can be challenging. Let’s find out how upGrad can simplify your learning journey in data science and visualization.

How Can upGrad Help You Excel in Data Science?

Data types, such as those used in Tableau, are fundamental components in the field of data science. This requires expertise in Python, deep learning, and NLP. But it is not easy to acquire these skills without proper training. upGrad offers training in data science and AI, covering all the essentials for upskilling, along with personalized mentorship.

upGrad’s training program helps you to learn the skills and practical knowledge required for your data science career. With 10 M+ learners, 200+ programs, and 1,400+ hiring partners, upGrad offers flexible programs built for working professionals and career switchers.

Here are some of upGrad’s advanced programs that offer advanced training in data science:

• Executive Diploma in Data Science & AI with IIIT-B
• Master’s Degree in Artificial Intelligence and Data Science
• Executive Post Graduate Certificate Programme in Data Science & AI
• Generative AI Mastery Certificate for Data Analysis

For job-oriented and focused upskilling, here is upGrad’s six-month-long job-ready program on data science and analytics

• Job-ready Program in Data Science & Analytics

Not sure how to take the next step in your data science career? Receive personalized career counseling to discover the ideal opportunities for you. Visit upGrad’s offline centers for expert mentorship, hands-on workshops, and networking sessions to connect you with industry leaders.

Unlock the power of data with our popular Data Science courses, designed to make you proficient in analytics, machine learning, and big data!

Explore our Popular Data Science Courses

Elevate your career by learning essential Data Science skills such as statistical modeling, big data processing, predictive analytics, and SQL!

Top Data Science Skills to Learn

Stay informed and inspired with our popular Data Science articles, offering expert insights, trends, and practical tips for aspiring data professionals!

Read our popular Data Science Articles

Reference Links:
https://www.tableau.com/products/new-features
https://help.tableau.com/current/pro/desktop/en-us/datafields_typesandroles_datatypes.htm
https://www.geeksforgeeks.org/tableau-data-types/
https://help.tableau.com/current/pro/desktop/en-us/datafields_typesandroles.htm
https://www.naukri.com/code360/library/data-types-in-tableau
