Docker Architecture Overview & Docker Components [For Beginners]

If you have recently come across the world of containers, it’s probably not a bad idea to understand the underlying elements that work together to offer containerisation benefits. But before that, there’s a question that you may ask. What problem do containers solve?

After building an application in a typical development lifecycle, the developer sends it to the tester for testing purposes. However, since the development and testing environments are different, the code fails to work.

Now, predominantly, there are two solutions to this – either you use a Virtual Machine or a containerised environment such as Docker. In the good old times, organisations used to deploy VMs for running multiple applications.

So, why did they started adopting containerisation over VMs? In this article, we will provide detailed explanations of all such questions.

Behind this fantastic tool, there has to be equally well-thought architecture. Before knowing about the Docker architecture components, let’s understand Docker containers and how they are superior to VMs.

Check out our free courses to get an edge over the competition.

Docker Containers

Docker is an open-source project which provides the ability to create, package, and run applications in loosely isolated and contained environments called containers.

With all the isolation and security provided by the Docker platform, it allows you to run many containers simultaneously on a particular host.

Check out upGrad’s Full Stack Development Bootcamp (JS/MERN)

Reasons Why Docker Containers Are Widely Adopted Includes

• It allows developers to write code locally and share the work with their team using Containers.
• They can push their applications into the test environments, which are the containers and execute automated tests.
• When bugs are found, they can be fixed within the development environment and then redeploy.
• Getting a fix is as simple as pushing an updated image to the production environment.

Before diving deep into the topic, we must differentiate the traditional virtualisation practices from the new-generation containerisation.

Check out upGrad’s Java Bootcamp.

Features of Docker

The key features of Docker are as follows:

• You only need a few hours to “dockerise” the application you are submitting. Docker containers can typically be launched in less than a minute.
• Docker avoids challenges that might arise once we deploy the source code and enables us to create apps from elements. For example, we can run two distinct versions of identical software on a single machine using two Docker containers.
• Docker is easy to operate. On a basic Linux, Mac, or Windows operating system with a suitable Linux kernel, users can get started utilising Docker by installing it as a virtual machine using a Docker component.
• Docker allows us to run tests on the source code before deploying it to operate right away.
• Docker containers are used worldwide. We can set up docker containers on desktop computers, physical server infrastructure, virtual servers, storage facilities, and even private and public clouds. Additionally, we can use the same containers anywhere.

How Does Docker Architecture Work?

A Docker container is designed to be a mobile, autonomous piece of software that may function on any host set up for running containers. It might be a personal computer, a cluster of EC2, or bare-metal servers in an isolated data centre.

The Docker daemon that forms the core of Docker’s architecture offers a layer that hides OS characteristics from the end user yet enables the individual to manage every step of the container’s phases: from building to installation to operation to cleaning up, simply and repetitively. Containers have become popular due to the advantages of this form of abstraction.

Understanding the Technology Behind Docker

Several Linux kernel components are incorporated into Docker. The component of the operating system, also known as the kernel, controls the system’s resources and interacts closely with the computer’s machinery. The fundamental components of container technology are namespaces and cGroups. Furthermore, Docker employs union file systems (UFS) to enhance the architecture of Docker.

cGroups

The Linux operating system’s groups feature makes it simple to control and track how resources are allocated for a specific process and to define resource restrictions, such as CPU, memory, and networking limitations. Doing this may prevent one container from using nearly all the resources, leaving no room for additional applications.

Namespaces

Namespaces are useful for separating different process units from one another. While you run Docker, it isolates your app from other parts of the system by creating an isolated “container” for it. Linux has six standard namespaces: mnt, IPC, net, user, pid, and uts. Every container shall have a distinct namespace, with operations operating only within it. It will not be possible for a container to access resources outside of its namespace. This is advantageous since it enables you to run numerous applications simultaneously without worrying about them impacting one another.

Virtual Machines Vs Docker Containers

Before we used containerisation for our DevOps practices, Virtual Machines were on top of the deck. We used to create VMs for each application.

While VMs fulfilled almost all the necessities, the down-side of using VMs was cumbersome and allocated all the required memory and hardware resources from the underlying host machines.

However, it was easily avoided with containerisation because containers provide OS-level virtualisation and usually require less memory. Thus, it became popular and was eventually adopted by the DevOps community.

 Image Source

The diagram above describes how the VMs and Containers’ architectures differ and why Containers have now surpassed VMs for everyday development processes. Unlike VMs, the Containers sit on top of the Container Engines to provide OS-level Virtualization, thus saving many resources.

Docker Engine

Before discussing the different architectural components of Docker, it’s essential to understand the workflow of Docker. Let’s take a look at the Docker Engine and its several parts, which will give us an idea of how the Docker system works. The Docker Engine is primarily a typical client-server application with three principal components.

Server (Daemon)

The Docker daemon is a continuous process that runs in the background and manages all the Docker objects. It listens to the Docker API requests put forward by the client and processes them continuously.

Rest API

 It is the interface that the Docker clients use to interact with the Docker daemon. The clients can talk to the daemon through the API and can provide instructions to it.

Client

The Docker Client is a Command Line Interface (CLI) that can interact with the daemon. It simplifies the entire process of container management.

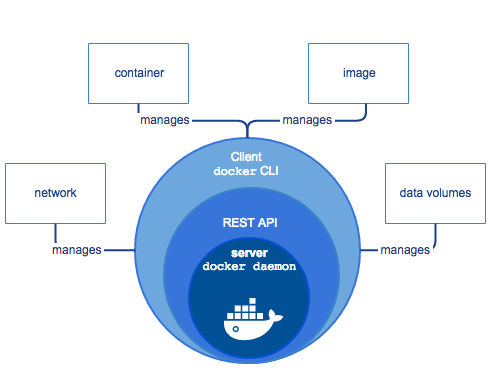

Image Source

The Docker Client (which can be an HTTP client such as a CLI) talks to the daemon, which performs the heavy task of creating, running, and sharing containers. The Client and the daemon can either run on the same machine or connect a client to a remote daemon. The Client and the daemon communicate with each other using a Rest API over sockets or network interface. The Docker Client helps users to manage Docker objects such as containers, images, volumes, etc. Learn more about Docker Projects

Enroll in Software development Courses from the World’s top Universities. Earn Executive PG Programs, Advanced Certificate Programs, or Masters Programs to fast-track your career.

Architectural Components

As discussed earlier, Docker uses a Client-Server architecture, where the Client talks to the daemon over a Rest API. The Docker architecture consists of several components, as discussed below.

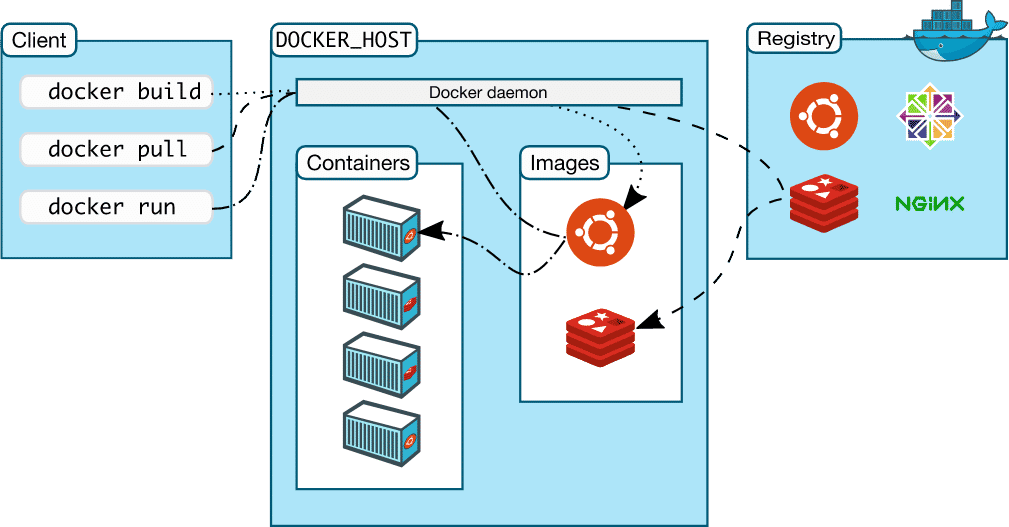

Image Source

Daemon

It listens for the API requests initiated by the clients and manages Docker objects, including containers, images, volumes, and networks. It can also communicate with other daemons to manage Docker services, especially to manage large Docker networks.

Client

The Docker users can communicate with the daemon using the Docker Client. The users execute commands such as “Docker run …” using a client such as CLI which then forwards these commands to Docker (daemon), ultimately carrying them out. The Docker client communicates with multiple daemons.

Registries

It stores Docker Images and can be public or private. Docker is configured to look for Images by default on Docker Hub. When the client issue a pull or run command, the images are pulled from the repositories.

Docker Objects

When working with Docker, we interact with several objects such as containers, images, volumes, networks, etc.

Some of these objects are

Images

It is a read-only template and contains instructions for creating containers. It also contains metadata describing the container capabilities. The users can pull images from the Docker registry and create writable image layers on top of them to create customized images to suit their application’s requirements. Some popular ideas include Ubuntu, Nginx, MySQL, etc. These ideas one can share across teams which helps them to work collaboratively on an application.

Containers

Containers are instances of images that provide isolated environments for the applications. They only have access to resources that are defined by the images used to build them.

Network

Docker Networks allows isolated containers on the same network to communicate and share resources. Some networks provided by Docker include bridge, host, overlay, Macvlan, etc.

Storage

Docker allows you to store data within the writable container layer with the help of drivers. Docker allows four options for persistent storage – Docker Volumes, Volume Containers, Directory Mounts, and Storage Plugins.

The most widely used storage option is the volumes. They are placed on the host file system and allow several containers to share and write data inside these volumes.

Conclusion

Docker uses a set of underlying state-of-the-art technologies to provide efficient containerization services to its users. No doubt, in recent years, Docker has started gaining traction among the developer community and will continue to do so in the upcoming years.

Due to the wide range of benefits provided by containers such as resource efficiency, scalability, etc., it rightly secures its position on top of the deck.

In this article, we have discussed some of Docker’s most essential concepts such as the Docker workflow, its architecture, and the underlying technologies, the several Docker objects such as containers, images, registries, networks, etc.

You are now right on track to dive deep into the beautiful world of Docker Containers. You should now better understand how different Docker resources work together to provide you with a bunch of features that would allow you to build, deploy, and share your applications seamlessly.
