Advanced Graph Algorithms for Big Data Applications

Graph algorithms analyze complex relationships in large datasets, revealing meaningful patterns and insights. As data grows, finding patterns and connections becomes increasingly difficult. This is where advanced graph algorithms help analyze vast data by uncovering patterns, connections, and key nodes.

In this blog, you'll see how graph algorithms in big data enhance processing, helping you make smarter decisions and optimize performance.

Advanced Graph Algorithms for Big Data Applications: An Overview

Graph analytics is the process of analyzing data structures that consist of nodes (also known as vertices) and edges (connections between nodes). It's like mapping out a network where everything is connected.

When dealing with Graph Algorithms for Big Data, you’ll often work with large, complex networks, and that’s where graph analytics comes into play.

When you dive into Graph Algorithms in Big Data, you’ll encounter two important distinctions:

1. Directed vs. Undirected Graphs:
   • Directed graphs have edges with a direction. For example, in a recommendation system, one person may recommend a product to another, but not vice versa. The relationship is one-way.
   • Undirected graphs don’t have direction. Think of a friendship: it’s mutual, meaning if person A is friends with person B, then person B is also friends with person A.
2. Weighted vs. Unweighted Graphs:
   • Weighted graphs have edges that represent values like cost, distance, or time. For example, the edge between two cities could represent the travel time or distance in a transportation network.
   • Unweighted graphs treat all edges equally, with no special value or weight assigned to them. They simply show if two nodes are connected or not.

The choice between the different kinds of graphs will influence the type of analysis and algorithms you use to process and extract insights from your data. As you deal with massive datasets, these distinctions become even more critical because the complexity of connections grows.

This is where graph algorithms shine—they help manage and analyze these vast, interconnected data points efficiently, making it easier to uncover meaningful patterns and insights.

Also Read: Types of Graphs in Data Structure & Applications

Graph algorithms work by identifying patterns, relationships, and structures hidden within your data. Instead of manually sifting through data, these algorithms can automate tasks and provide insights in a fraction of the time.

Let’s look at how these algorithms optimize key tasks:

• Searching: Graph algorithms help quickly find relevant nodes in vast networks, making them ideal for search engines or databases with complex connections.
• Clustering: These algorithms group similar nodes together, which is useful in social network analysis, customer segmentation, or identifying communities within a network.
• Recommendation: By analyzing connections between users, products, or content, graph algorithms can suggest relevant items, like recommending movies, products, or friends on social platforms.
• Anomaly Detection: Graph algorithms can identify outliers or unusual patterns in large datasets, helping with fraud detection, security monitoring, or detecting system failures.

Anomaly detection is key in fraud and security. Learn how graph algorithms spot outliers with upGrad's free Unsupervised Learning: Clustering course. Enroll now!

Now that you understand how graphs model complex relationships, you're ready to explore advanced techniques that optimize big data processing and reveal deeper insights.

Advanced Graph Algorithms for Optimizing Big Data Processing

Traditional graph algorithms often fail when dealing with large datasets. To effectively handle vast amounts of interconnected data, we need advanced graph algorithms specifically designed for optimization and scalability.

Graph Traversal Algorithms: Efficient Exploration at Scale

Graph traversal involves systematically visiting nodes in a graph to explore its structure, and it is fundamental for tasks such as searching and pathfinding: Breadth-First Search (BFS) and Depth-First Search (DFS).

• Breadth-First Search (BFS):

BFS is a level-order traversal. It starts at a given node, explores all neighbors at the present depth level, and then moves on to the next level. BFS is particularly useful for finding the shortest path in unweighted graphs or detecting connectivity between nodes.

It ensures that nodes closest to the starting point are processed first, making it ideal for tasks like social network analysis or finding the closest entity in large datasets.

Steps:

1. Start with the root node and add it to the queue.
2. Process the current node by visiting all its neighbors.
3. Add the unvisited neighbors to the queue and repeat until all nodes are explored.

Pseudocode:

BFS(graph, start):
    initialize visited set
    initialize queue with start node
    while queue is not empty:
        node = queue.pop()
        visit(node)
        for each neighbor of node:
            if neighbor not visited:
                add neighbor to queue

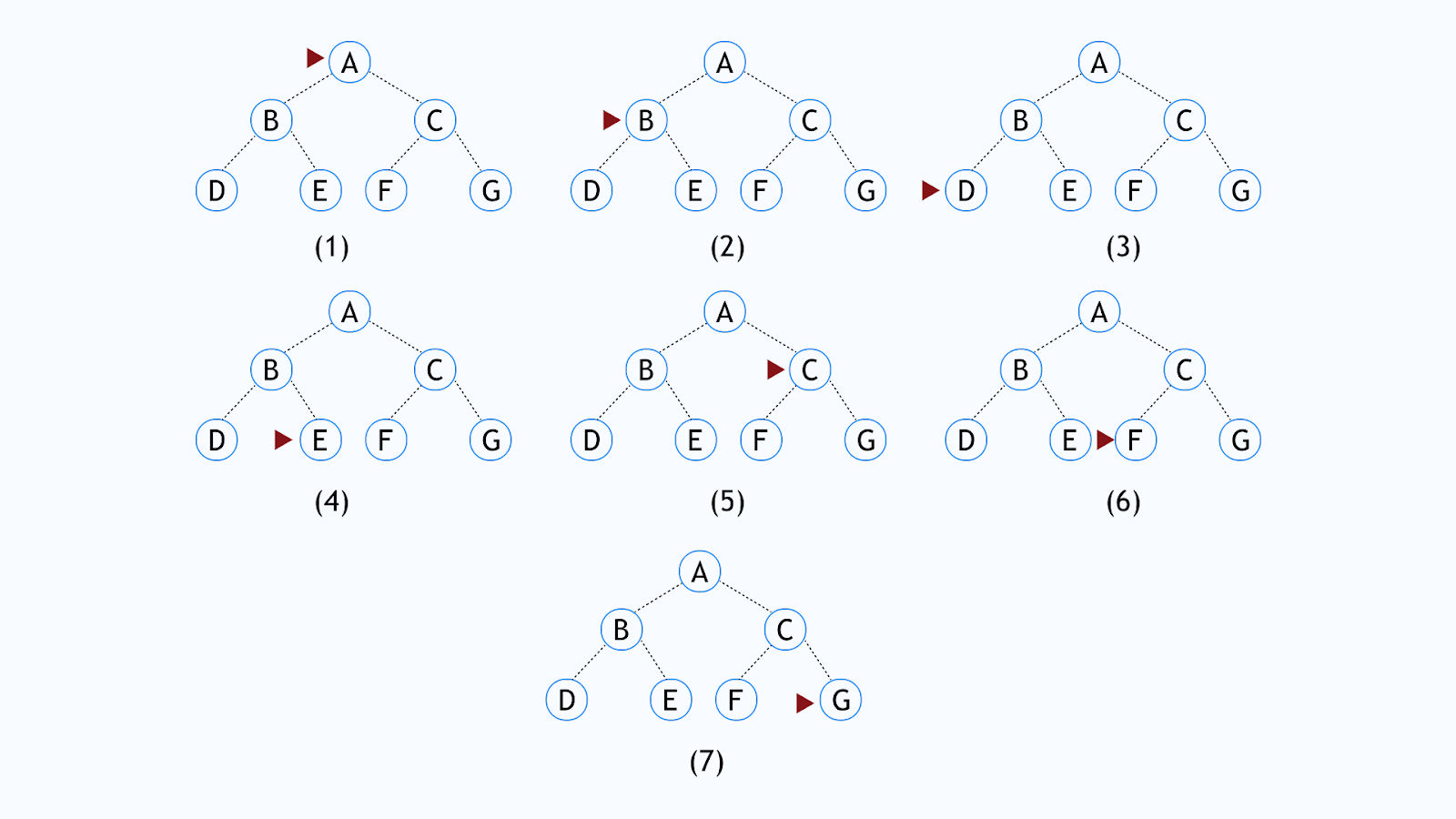

• Depth-First Search (DFS):

DFS takes a different approach by diving deep into the graph, exploring as far down a branch as possible before backtracking. It’s ideal for detecting connected components, cycles, or for performing tasks like topological sorting in directed acyclic graphs (DAGs).

DFS helps us understand the structure of a network, which is useful for clustering analysis or exploring hierarchical relationships.

Steps:

1. Start from the root node and explore deeply along each branch.
2. Backtrack when reaching a node with no unvisited neighbors, then explore the next branch.
3. Continue until all nodes are explored.

Pseudocode:

DFS(graph, start):
    initialize visited set
    initialize stack with start node
    while stack is not empty:
        node = stack.pop()
        visit(node)
        for each neighbor of node:
            if neighbor not visited:
                add neighbor to stack

Also Read: Difference Between DFS and BFS: DFS vs BFS, Similarities, and More

Shortest Path Algorithms: Finding Optimal Routes

Finding the shortest path between nodes is crucial in big data applications, like transportation networks or web page ranking. Let’s dive into a few algorithms used for this purpose.

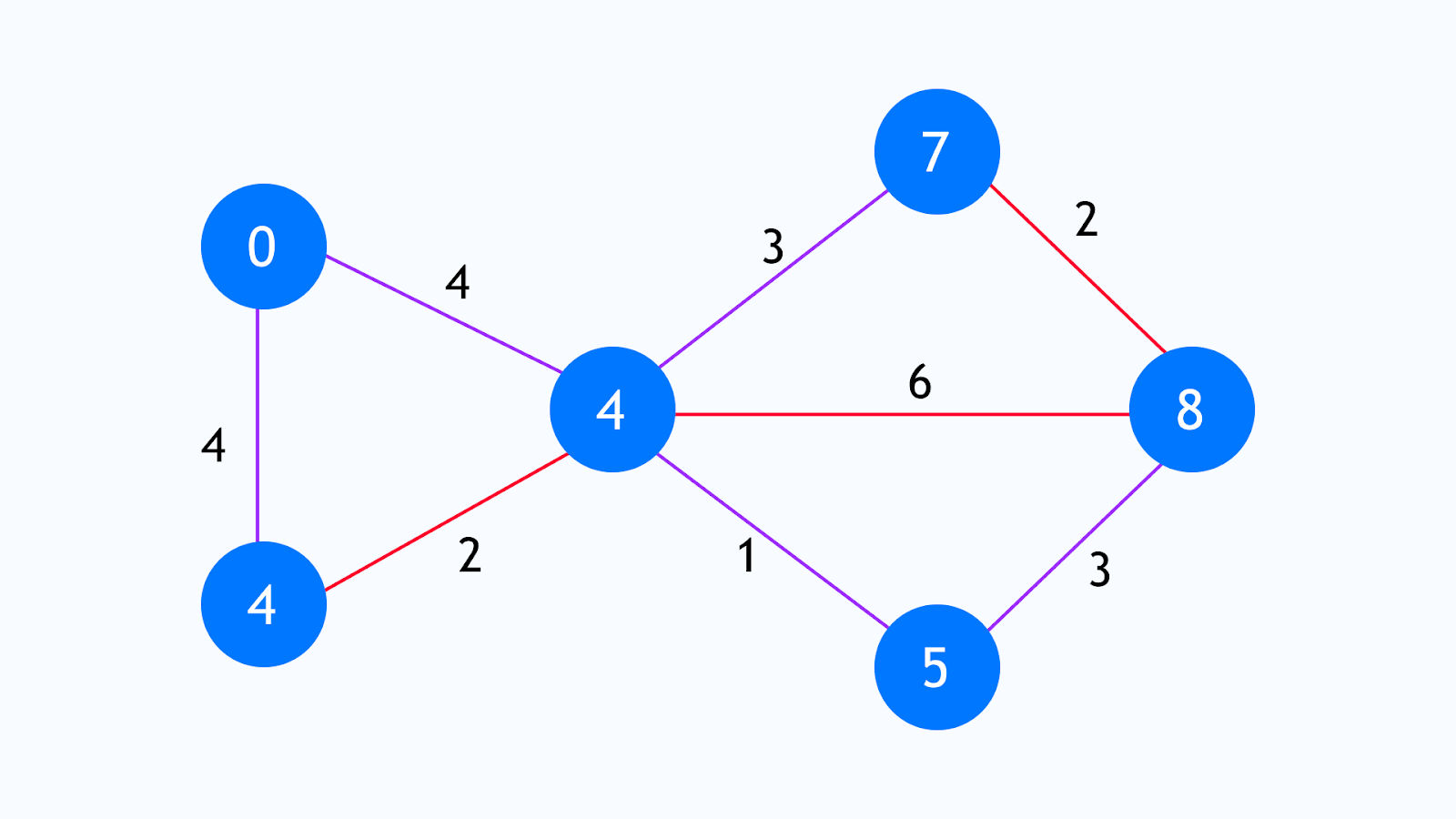

• Dijkstra’s Algorithm:

Dijkstra’s algorithm is the go-to method for finding the shortest path in weighted graphs with non-negative edge weights. It works by continuously selecting the node with the smallest known distance and updating the distances to its neighbors.

It's commonly used in routing systems, such as GPS navigation or in network optimization.

Steps:

1. Assign a tentative distance value to every node. Set the initial node’s distance to 0 and all others to infinity.
2. Visit the unvisited node with the smallest tentative distance.
3. For the current node, calculate the tentative distances to its neighbors and update them if smaller.
4. Mark the current node as visited and repeat until all nodes are visited.

Pseudocode:

Dijkstra(graph, start):
    Initialize distances[] = ∞ for all nodes, distances[start] = 0
    Add (start, 0) to priority queue PQ
    while PQ is not empty:
        current = node with smallest distance in PQ
        For each neighbor of current:
            If new path is shorter:
                Update distances[neighbor]
                Add (neighbor, updated distance) to PQ

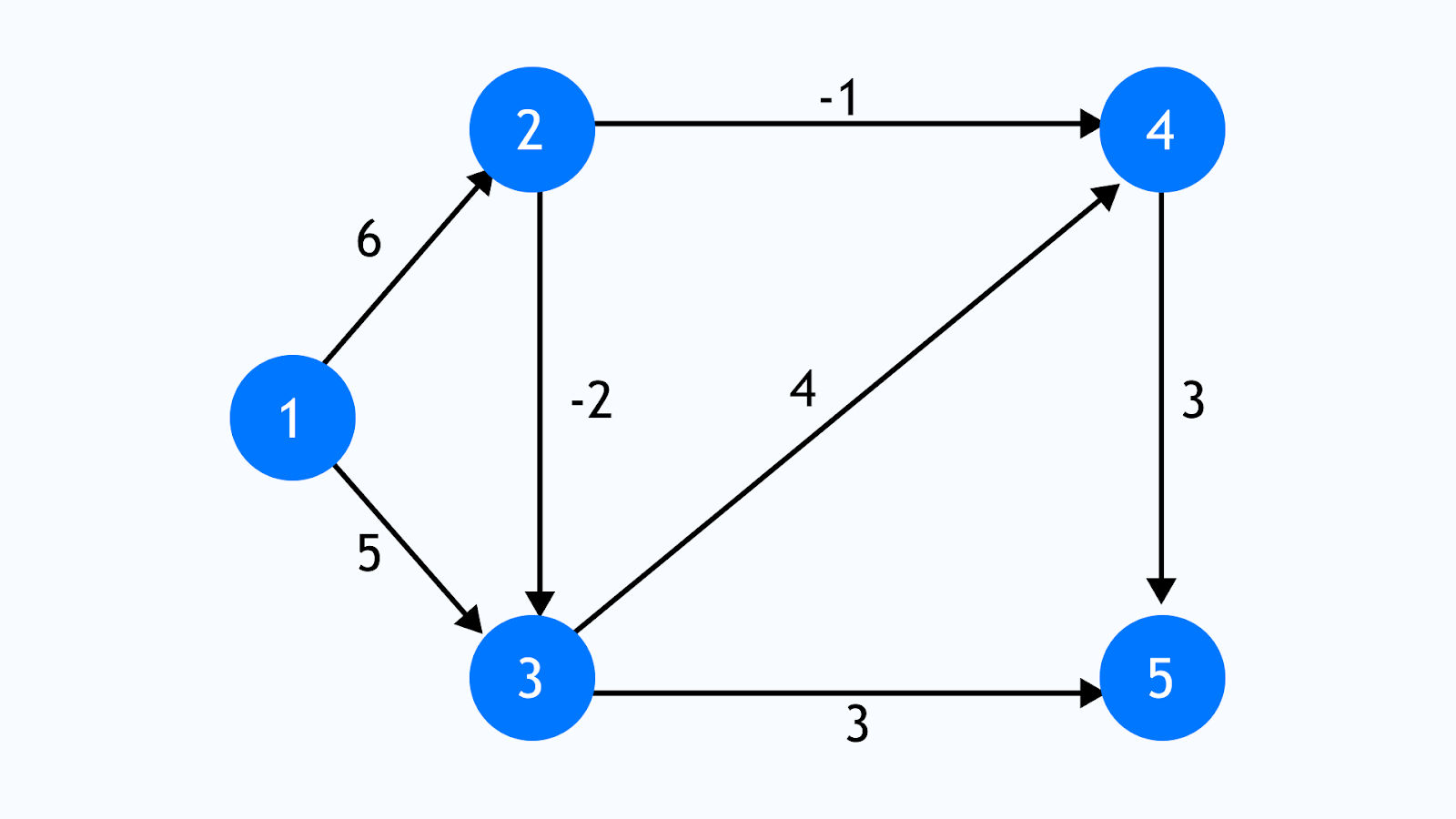

• Bellman-Ford Algorithm:

The Bellman-Ford algorithm Bellman-Ford is an alternative to Dijkstra's algorithm that can handle graphs with negative edge weights. This makes it valuable for financial networks or when anomalies like negative cycles need detection.

Steps:

1. Initialize distances like Dijkstra’s algorithm.
2. Repeat for all edges: If a shorter path is found through a node, update the distance.
3. After all iterations, check if any distance can still be updated. If so, a negative cycle exists.

Pseudocode:

Bellman-Ford(graph, start):
    initialize distances with infinity, set start to 0
    for each edge, relax distances
    check for negative weight cycles after V-1 iterations

Centrality Algorithms: Measuring Node Importance

Centrality algorithms help identify key nodes in a graph that are important in the network. These nodes often have the greatest influence or control over the network structure.

Centrality is particularly useful in social network analysis or cybersecurity, where identifying influential nodes can reveal crucial patterns, vulnerabilities, or key players.

• Degree Centrality

Degree centrality measures the number of direct connections a node has. Nodes with a high degree are typically considered "hubs" in the network and play a central role in the graph's connectivity.

Steps:

1. Count the number of edges connected to each node.
2. The node with the highest number of edges is considered the most central.

Pseudocode:

DegreeCentrality(graph):
    for each node in graph:
        degree = count of edges connected to the node
    return node with highest degree

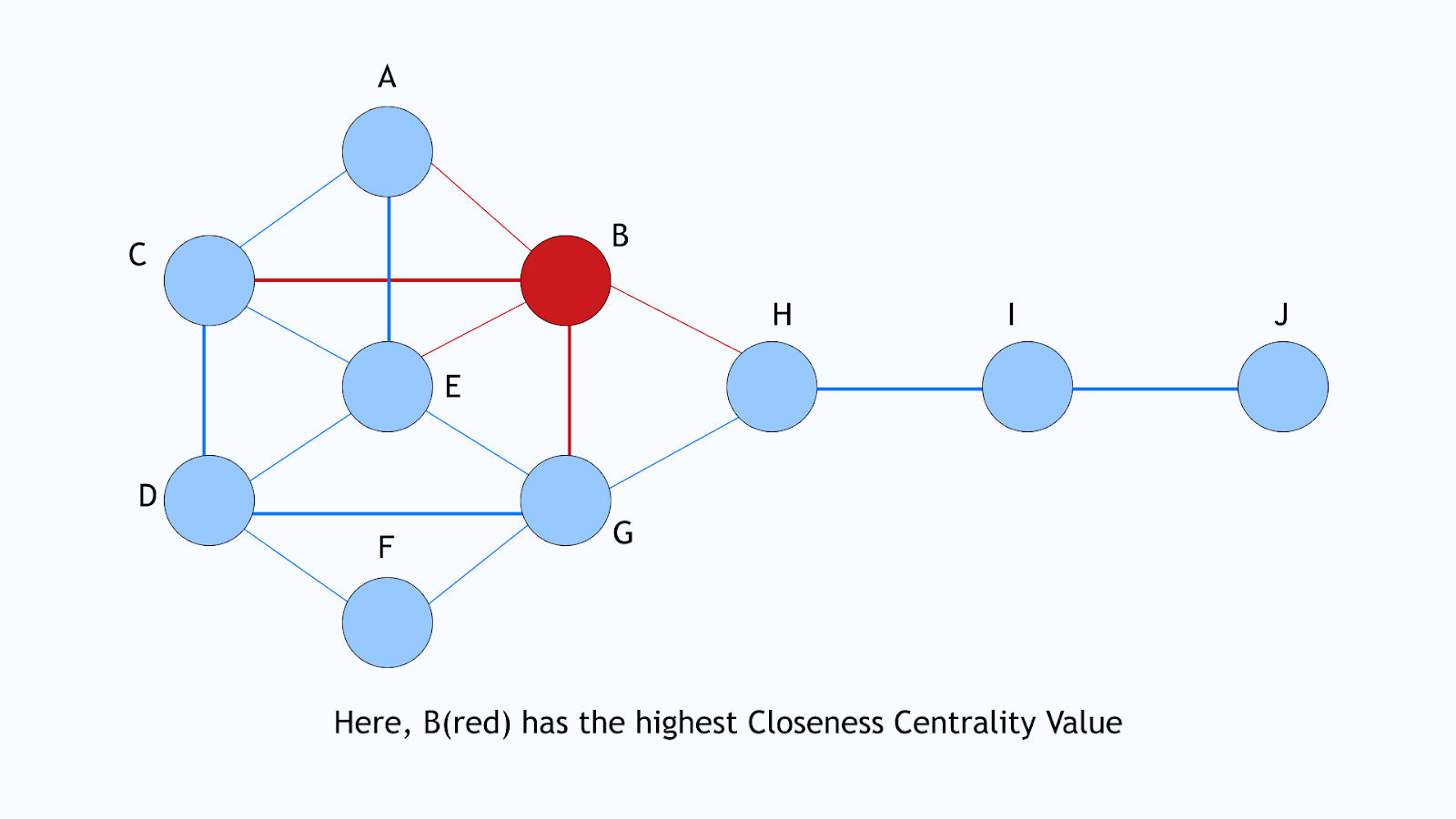

• Closeness Centrality

Closeness centrality measures how quickly a node can reach all other nodes in the network. A node with high closeness centrality can influence other nodes in the network more efficiently because it has a shorter average path to every other node.

Steps:

1. Calculate the shortest path from the node to all other nodes.
2. The node with the shortest average path length to all other nodes has the highest closeness centrality.

Pseudocode:

ClosenessCentrality(graph, start):
    for each node in graph:
        calculate shortest path to all other nodes
    return node with shortest average path distance

• Eigenvector Centrality

Eigenvector centrality evaluates a node’s importance based not just on its own connections but also on the importance of its neighbors. This algorithm is most famously used in Google’s PageRank, which ranks webpages based on the quantity and quality of links.

Steps:

1. Assign an initial value to all nodes.
2. Iteratively update each node’s value based on the sum of the values of its neighbors.
3. Continue updating until the values converge to a stable state.

Pseudocode:

EigenvectorCentrality(graph):
    initialize each node with a value of 1
    while values converge:
        for each node:
            value = sum of values of neighbors / number of neighbors
    return node with highest value

Community Detection Algorithms: Identifying Clusters

Community detection helps to uncover hidden patterns and identify groups of closely related nodes. This is crucial in understanding the structure of networks, whether in fraud detection, social networks, or recommendation systems.

Community detection algorithms help reveal the underlying structure of data by identifying groups or clusters within large datasets.

• Louvain Algorithm

The Louvain algorithm is a widely used method for community detection. It detects communities by optimizing modularity, a measure of the density of edges within communities compared to edges between communities.

Steps:

1. Initially, assign each node to its own community.
2. Iteratively merge communities to maximize modularity (internal density).
3. Repeat until no further improvement in modularity can be made.

Pseudocode:

LouvainCommunityDetection(graph):
    assign each node to its own community
    repeat:
        for each node:
            calculate modularity gain by moving to neighboring communities
        merge communities that maximize modularity
    until modularity can no longer be improved
    return communities

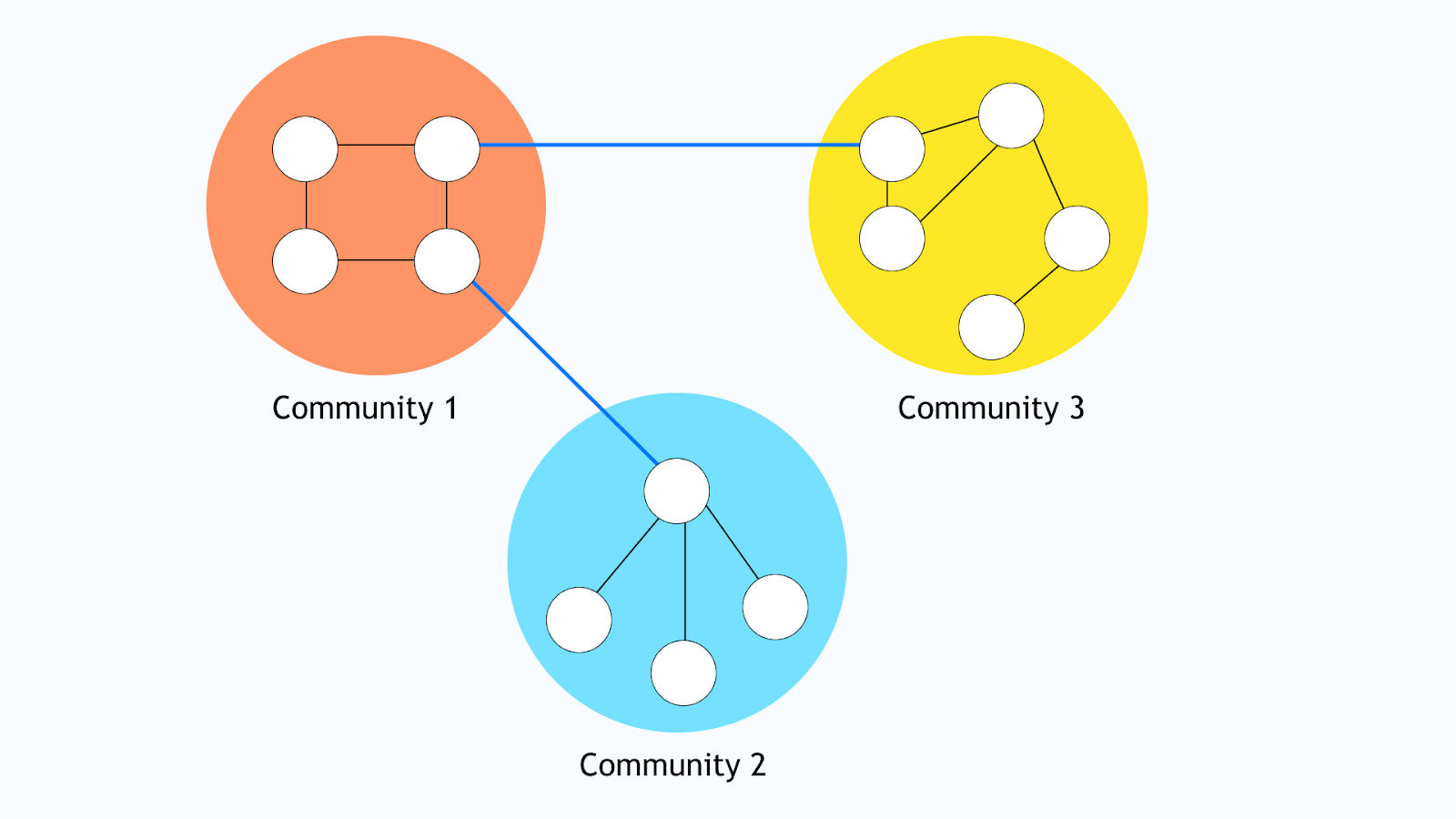

• Girvan-Newman Algorithm

The Girvan-Newman algorithm detects communities by identifying edges with high betweenness centrality. These edges often serve as bridges between different communities, and removing them splits the graph into distinct groups.

Steps:

1. Calculate the betweenness centrality of each edge in the graph.
2. Remove the edge with the highest betweenness centrality.
3. Repeat the process until the graph is split into communities.

Pseudocode:

GirvanNewmanCommunityDetection(graph):
    while graph has more than one community:
        calculate betweenness centrality for each edge
        remove edge with highest betweenness centrality
    return communities

Graph Partitioning Algorithms: Optimizing Parallel Processing

When working with large-scale data, efficient graph partitioning is crucial for scalability and parallel processing. These algorithms divide the graph into smaller subgraphs, enabling concurrent analysis and reducing computation time.

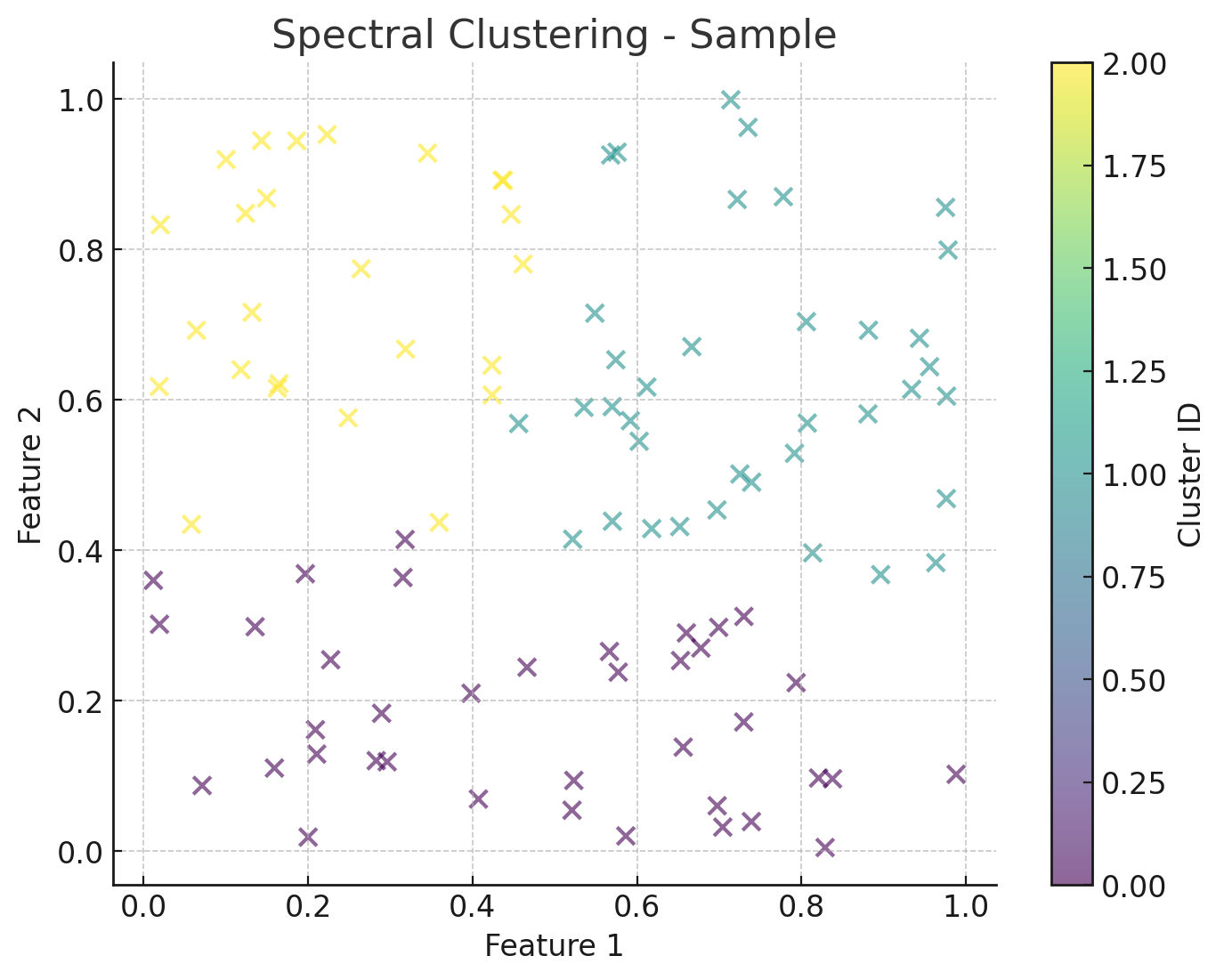

• Spectral Clustering

Spectral clustering partitions a graph into clusters using its Laplacian matrix's eigenvalues and eigenvectors. This helps detect natural groupings within the graph.

Steps:

1. Calculate the Laplacian matrix of the graph.
2. Compute the eigenvalues and eigenvectors of the Laplacian matrix.
3. Partition the graph using the eigenvectors corresponding to the smallest eigenvalues.

Pseudocode:

SpectralClustering(graph):
    calculate Laplacian matrix of the graph
    compute eigenvectors of the Laplacian matrix
    partition the graph based on eigenvectors corresponding to smallest eigenvalues
    return partitions

METIS Algorithm

The METIS algorithm is used for graph partitioning in parallel processing systems. It seeks to minimize the number of edges cut while balancing the size of the partitions, ensuring efficient load distribution in parallel processing.

Steps:

1. Partition the graph into smaller subgraphs while minimizing the number of edges cut.
2. Ensure that each partition has approximately the same size to balance the computational load.
3. Optimize the partitioning iteratively.

Pseudocode:

METISPartitioning(graph):
    partition the graph into smaller subgraphs
    minimize edge cuts while balancing partition sizes
    return optimal partitions

With these advanced graph algorithms, you now have the tools to process and analyze large, interconnected datasets efficiently. Whether it’s optimizing routes, detecting communities, or uncovering hidden patterns, these techniques will help you to solve complex big data challenges.

To implement these algorithms at scale, let’s explore the key tools and frameworks that make efficient graph processing possible.

Essential Tools & Frameworks for Graph Processing

Having the right tools and frameworks is crucial to make the most of graph algorithms for big data. These tools simplify graph analysis and allow you to scale your analysis efficiently.

Let’s take a closer look at some of the top tools:

Whether you’re dealing with small-scale analysis or large, distributed systems, each framework offers unique features tailored to specific challenges.

Also Read: Top 10 Artificial Intelligence Tools & Frameworks

Now that you have the right tools, let's look at how these graph algorithms for big data come to life in real-world applications.

Real-World Applications of Graph Algorithms in Big Data

Graph analytics is revolutionizing industries across the board by allowing organizations to make smarter decisions based on the complex relationships within their data.

Here’s a look at key industries and use cases where graph algorithms in big data are making a real impact.

As technology evolves, developments like real-time streaming and AI-driven techniques are set to enhance these benefits.

Also Read: Applications of Big Data in Real World – A Complete Guide

From AI-driven learning to real-time processing, the potential is vast. The future of graph analytics is bright, and those who adopt these innovations will be well-positioned to lead in a data-driven world.
