Karnaugh Maps and Their Use in Boolean Algebra Simplification

Boolean Algebra is a branch of mathematics used to represent logical expressions and operations. It forms the foundation of digital circuit design. Karnaugh Maps (K-Maps) simplify Boolean expressions, streamlining the design of efficient digital circuits.

Simplifying Boolean expressions reduces the number of logic gates. This leads to smaller, faster circuits with less propagation delay and lower power consumption. As a result, designs become more cost-effective and efficient.

This guide explores the step-by-step process of using K-Maps for simplifying complex Boolean functions and how they optimize circuit designs.

Karnaugh Maps and Their Role in Boolean Simplification

Karnaugh Maps help designers reduce the complexity of digital circuits by minimizing the number of logic gates required. Instead of working with lengthy Boolean equations, K-Maps allows for a more intuitive way to simplify and optimize logic functions.

Here is a look at the basic structure of K-Maps.

• Grid Layout: A K-Map is a grid where each cell represents a unique combination of input variables. The grid is designed so that each adjacent cell differs by only one variable, which is essential for simplification.
• Cells for Variable Combinations: Each cell in the grid contains a 1 or a 0, corresponding to the output of a Boolean expression for a particular set of input values. These values are derived from the truth table of the Boolean function.

Common examples of K-Maps include:

2-Variable K-Map: This is the simplest form, with a 2x2 grid for two variables (A, B). It represents the four possible combinations of the input variables.

Example:

Here, the cells represent the output of the Boolean expression for each combination of A and B. For instance, when A = 0 and B = 0, the output is 1.

3-Variable K-Map: This map uses a 2x4 grid for three variables (A, B, C), where there are eight possible combinations.

Example:

In this example, the first row represents the case when A and B are both 00. The two values (0 or 1) correspond to the output when C is 0 or 1, respectively.

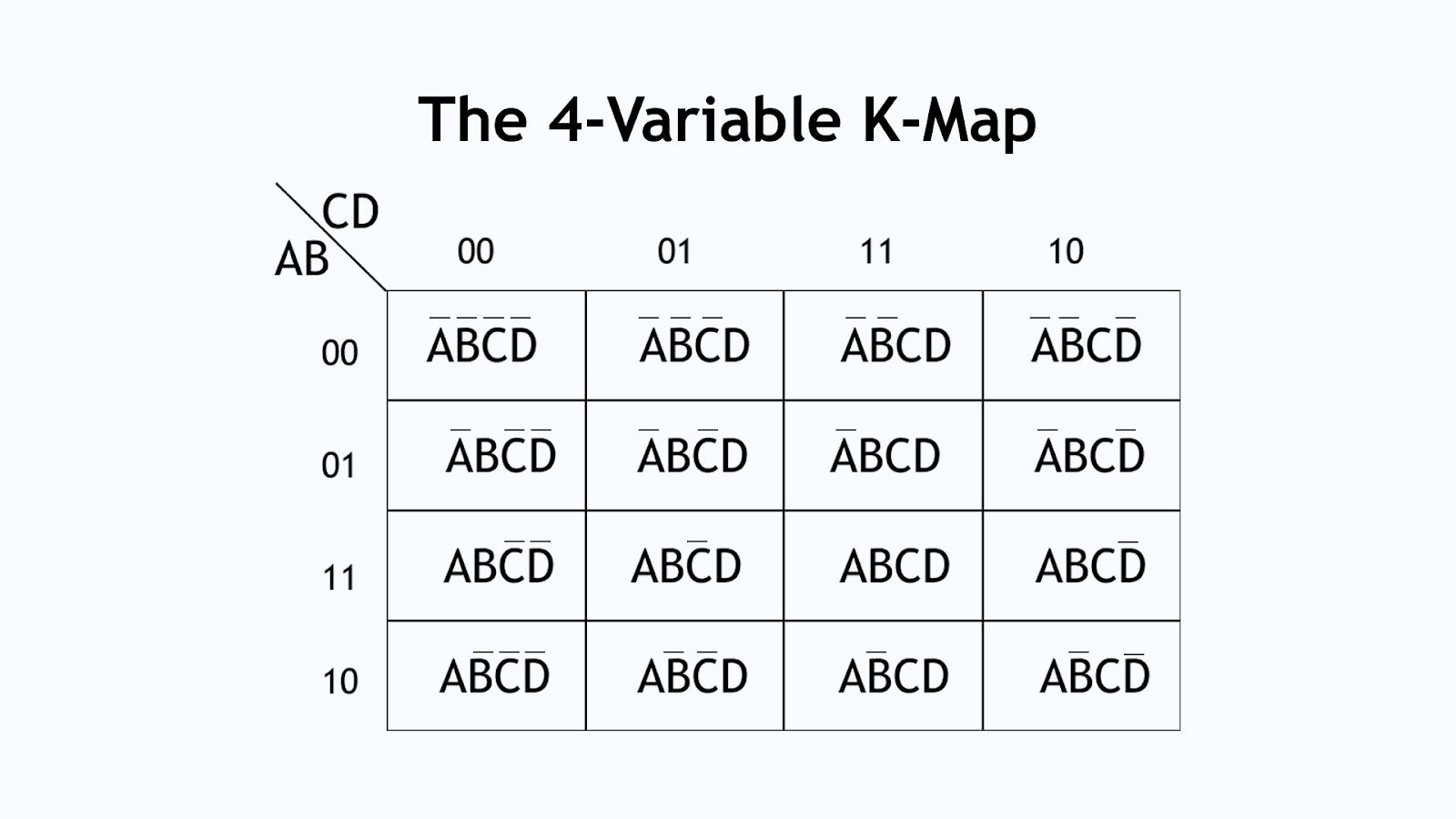

4-Variable K-Map: A more complex 4-variable K-Map uses a 4x4 grid, representing sixteen combinations of input variables (A, B, C, D).

Example:

This grid shows how the combinations of A, B, C, and D can be mapped to the output values of the Boolean expression.

Let us have a look at the role of adjacency in simplification in detail.

Role of Adjacency in Simplification

The power of Karnaugh Maps lies in the ability to simplify Boolean expressions by identifying groups of adjacent cells with a value of 1. These groups should follow powers of 2 (e.g., 1, 2, 4, 8) and can be horizontal, vertical, or even wrap around the edges of the grid.

• Grouping Adjacent 1s: To simplify the expression, the K-Map helps by grouping adjacent cells containing 1s. The goal is to create the largest possible groups. Each group represents a term in the simplified Boolean expression, where the number of variables is reduced.

For example, if two adjacent cells have the value 1, the corresponding variables that differ between those cells are eliminated from the final expression.

• Simplifying Expressions: Once the groups are identified, the Boolean expression is simplified by eliminating the variables that stay the same across the entire group. This results in a simpler, more efficient Boolean expression.

By reducing the number of logic gates, K-Maps create simpler, more cost-effective, and efficient circuits. Now that the role of K-Maps is clear let’s explore why simplifying Boolean expressions is vital for efficient circuit design.

The Need for Simplifying Boolean Expressions Using Karnaugh Maps

Simplifying Boolean expressions is a key step in digital logic design. It helps in reducing complexity, cutting down logic gates, and improving overall system efficiency. Karnaugh Maps (K-Maps) make this process intuitive and more effective.

Below is an explanation of the importance of simplification and the benefits K-Maps offer.

Minimizing Logic Gates and Reducing Circuit Complexity

Simplifying Boolean expressions helps reduce the number of logic gates needed in a circuit. Fewer gates lead to simpler, more efficient circuit designs.

• Fewer Gates: A simplified Boolean expression directly reduces the number of gates in the circuit.
• Impact on Circuit Size: Fewer gates mean smaller circuits, saving on physical space and resources.
• Efficient Design: K-Maps simplify Boolean expressions by identifying and eliminating redundant terms. This reduces the number of logic gates needed in the circuit, leading to lower power consumption, smaller designs, and improved overall efficiency.

Comparison to Traditional Algebraic Methods

Traditional algebraic methods for simplification can be time-consuming and error-prone. K-Maps offer a more efficient visual approach to simplifying Boolean functions.

• Complexity of Traditional Methods: Algebraic methods require multiple steps and are prone to mistakes, especially with larger expressions.
• K-Maps for Intuitive Simplification: K-Maps allow engineers to visually identify patterns, making simplification quicker and easier.
• Faster and More Accurate: K-Maps simplify the process by grouping adjacent 1s, leading to quicker and more reliable results than algebraic methods.

Also Read: Linear Algebra for Machine Learning: Critical Concepts, Why Learn Before ML

Impact on Hardware Design, Performance, and Cost

Simplifying Boolean expressions with K-Maps not only reduces complexity but also brings tangible benefits to hardware design, performance, and overall cost.

• Cost Reduction: Fewer gates mean fewer components, which lowers the cost of manufacturing and assembly.
• Enhanced Performance: Simplified circuits have fewer gates, which means faster processing and reduced latency.
• Energy Efficiency: Simplified circuits consume less power, making them ideal for energy-efficient applications.

Karnaugh Maps (K-Maps) offer a practical solution to optimizing digital circuit design. By simplifying Boolean expressions, they reduce complexity costs and improve performance, making them an invaluable tool in logic design.

With the importance of simplification established, let’s take a closer look at how K-Maps work step by step.

How Karnaugh Maps Work: A Quick Guide

Simplifying Boolean expressions with Karnaugh Maps (K-Maps) is a step-by-step process that helps reduce complexity and the number of logic gates in digital circuits. Below is a comprehensive guide on how to use K-Maps for simplification, along with practical examples.

Step 1. Place the Boolean Expression into the K-map:

The first step is to set up the K-map grid based on the number of variables in the Boolean expression. Each cell in the grid represents a specific combination of input variables.

For example:

• A 3-variable Boolean expression will have a 2x4 grid, representing the eight possible combinations of the three variables.
• A 4-variable Boolean expression will have a 4x4 grid, representing the sixteen combinations of the four variables.

Step 2. Identify and Mark 1s (or 0s for POS Simplification):

Once the grid is set up, mark the cells with 1 or 0 based on the Boolean expression.

• For Sum of Products (SOP) simplification, place 1s where the expression is true.
• For Product of Sums (POS) simplification, place 0s in the corresponding cells.

Step 3. Group the Adjacent 1s in Powers of 2:

• Group the 1s in powers of 2 (i.e., groups of 1, 2, 4, 8, etc.). The larger the group, the simpler the resulting Boolean expression will be.
• Groups should be rectangular and adjacent either horizontally or vertically, and they can wrap around the edges of the grid.
• Each group corresponds to a simplified term in the Boolean expression.

Step 4. Derive the Simplified Boolean Expression:

• After grouping, write the Boolean expression for each group. For each group, include the variables that remain constant (i.e., those that don’t change within the group).
• The simplified expression is the OR of the individual terms derived from each group.

Practical Example: 3-Variable K-map (A, B, C)

Let us now have a look at a practical example for a 3-Variable K-Map.

Step 1. Set up the 3-variable K-map:

A 2x4 grid is used for the three variables A, B, and C. Here’s the K-map:

Step 2. Mark the 1s based on the Boolean expression:
The positions where the Boolean expression evaluates to true (1s) are at:

(00, 0), (01, 0), (01, 1), and (11, 1).

Step 3. Group the adjacent 1s:

Group 1: The two 1s at (00, 0) and (01, 0) can be grouped together.

Group 2: The 1s at (01, 1) and (11, 1) can also be grouped.

Step 4. Derive the simplified expression:

Group 1 (00, 0) and (01, 0) simplifies to A'B.

Group 2 (01, 1) and (11, 1) simplifies to B'C.

The final simplified Boolean expression is A'B + B'C.

Here, the groups of adjacent 1s are identified, and the simplified Boolean expression is derived based on these groups.

By following these steps and using Karnaugh Maps (K-Maps), Boolean expressions can be simplified effectively, resulting in optimized digital circuit designs with fewer gates and more efficient logic.

Now that we understand basic K-Map usage let’s dive into more complex cases involving five or six variables.

K-Map for More Than Four Variables

As Boolean expressions become more complex with additional variables, simplifying them using Karnaugh Maps (K-Maps) gets harder. For five or six variables, K-Maps extend to higher dimensions, presenting both new opportunities and challenges in simplification.

Here is a quick look at them.

• 5-Variable K-Map: A 5-variable K-map uses a 4x8 grid, which results in 32 cells representing all possible combinations of five variables. The cells are grouped in a way that allows adjacent cells to differ by only one variable. A 4x4 grid is used for 4 variables, which results in 16 cells.

• 6-Variable K-Map: A 6-variable K-map uses a 4x8 grid comprising 64 cells. Each cell represents one of the possible combinations of the six variables, making it significantly more complex to handle manually.

While K-Maps for two to four variables are relatively straightforward to manage, the complexity increases as the number of variables grows.

Let us have a look at the challenges of K-Map Simplification for more than 4 variables.

Challenges of K-Map Simplification for More Than 4 Variables

As the number of variables increases, simplifying K-Maps becomes more complex. The following challenges arise when working with higher-dimensional K-Maps.

• Increased Grid Size: With more variables, the K-map grid becomes much larger, making it difficult to manage and visualize manually.
• Grouping Complexity: More variables mean more possible groups of adjacent 1s. Identifying the largest groups and ensuring full coverage of all terms becomes harder.
• More Potential Groups: Additional variables lead to more combinations and terms, increasing the complexity of the Boolean expression. The number of groups to consider also increases.

Here is a look at the various tools and strategies that are used to manage large K-Maps.

Tools and Strategies for Managing Large K-Maps

To simplify K-Maps with many variables, certain tools and strategies can help automate the process and make the task more manageable.

• Computer Algorithms: Algorithms can automate the grouping process, identifying the largest groups of adjacent 1s and simplifying the Boolean expression quickly.
• K-Map Software Tools: Tools like Logic Friday, Karnaugh Map Solver, Wolfram Mathematica, and others such as K-map Simplifier, Boolean Algebra Solver, and Digital Works help visualize and simplify large K-Maps.

These tools improve efficiency by automating the grouping process, reducing human error, and enabling faster handling of complex Boolean expressions.

• CAD Software for Circuit Design: Some CAD tools include built-in K-map solvers that can handle up to 6-variable functions, automatically generating simplified Boolean expressions for circuit design.

Also Read: Difference Between Variable and Constant

Having covered multi-variable K-Maps, let’s explore the key techniques for simplifying them effectively.

Key Techniques in K-Map Simplification

Karnaugh Maps (K-Maps) offers several powerful techniques for simplifying Boolean expressions. By grouping adjacent 1s, utilizing don’t care conditions, and minimizing terms, K-Maps streamline the simplification process.

Here is each technique in detail.

Grouping Adjacent 1s

The core principle behind K-Map simplification is to identify and group adjacent 1s in powers of 2, which directly leads to minimizing the Boolean expression. The larger the group, the simpler the resulting expression.

• Forming Groups: Start by identifying groups of adjacent 1s in the K-map. Groups must be rectangular and can include 1, 2, 4, 8, or more cells. These groups represent a common term in the simplified Boolean expression.
• Adjacent 1s: Groups should only contain 1s that are adjacent to each other either horizontally, vertically, or wrapping around the edges of the grid. For example, in a 4-variable K-map, adjacent 1s can wrap around the edges, forming larger groups.
• Eliminating Variables: Each group helps eliminate variables that remain constant across the cells. The Boolean expression for that group will only include the variables that change within the group.

Don’t Care Conditions

Don’t care conditions allow for further simplification by treating certain combinations of inputs as both 1 and 0, depending on which makes the simplification easier.

• Using Don’t Care Terms: Don’t care terms are those input combinations where the output does not matter (either 0 or 1). These conditions are marked as "X" in the K-map.
• Simplification Advantage: By treating don’t care conditions as 1s, you can often form larger groups, reducing the overall number of terms in the Boolean expression. This technique allows for a greater simplification than without using don’t care conditions.
• Improved Grouping: Don’t care conditions make it easier to form larger groups. This not only minimizes the expression but also reduces the number of variables and terms in the final Boolean expression.

Minimization of Terms

The main goal of K-Map simplification is to reduce the number of terms and variables in the Boolean expression.

• Reducing Complexity: By grouping adjacent 1s, removing variables that remain constant, and using don’t care conditions, the number of terms in the expression is minimized.
• Simplified Expression: After grouping and eliminating unnecessary variables, the Boolean expression becomes simpler, with fewer terms. Each group in the K-map corresponds to a single term in the final simplified expression, with fewer variables and operations.

Next, let’s see how these techniques are applied in real-world scenarios and industries.

Practical Applications of Karnaugh Maps

Karnaugh Maps (K-Maps) are widely used in various fields of digital design to simplify Boolean expressions, reduce circuit complexity, and improve system efficiency.

Below are some practical applications of K-Maps.

Digital Circuit Design

K-Maps are essential in simplifying Boolean expressions for digital circuits, helping reduce the number of logic gates required for circuit implementation.

• Circuit Simplification: K-Maps help minimize Boolean expressions, leading to fewer logic gates and smaller, more efficient circuits.
• Optimized Gate Usage: By grouping adjacent 1s, K-Maps allow for efficient use of logic gates, reducing overall complexity.
• Real-World Use: K-Maps are applied in designing combinational logic circuits like multiplexers, adders, and encoders.

Microprocessor and FPGA Design

In microprocessor and FPGA design, K-Maps streamline logic implementation by reducing the complexity of Boolean functions.

• Efficient Logic Implementation: K-Maps help simplify complex Boolean functions, making microprocessor and FPGA logic more efficient.
• Optimized Performance: By reducing the number of logic gates, K-Maps optimize the use of resources in FPGA designs.
• Design Flexibility: They allow for flexible optimization of control logic and arithmetic operations in microprocessors.

Control Systems

K-Maps are commonly used to simplify the control logic in automated systems, ensuring reliability and efficient operation.

• Automating Control Logic: K-Maps simplify Boolean expressions in control systems for managing operations like switching and sensor control.
• Simplification for Reliability: Fewer logic gates lead to reduced system complexity and improved reliability.
• Example: Traffic light controllers and temperature regulation systems are designed using simplified Boolean expressions from K-Maps.

Also Read: What is Logical Thinking & How to Improve Logical Thinking?

Embedded Systems

In embedded systems, K-Maps help minimize power consumption and circuit size while optimizing performance.

• Minimizing Power Consumption: By reducing the number of logic gates, K-Maps ensure low power usage in embedded devices.
• Compact Circuit Design: K-Maps are used to create smaller, cost-effective circuits suitable for embedded applications.
• Practical Use: Embedded control units in devices like smart gadgets and automotive systems rely on K-Maps for efficient circuit design.

Error Detection and Correction Circuits

K-Maps are valuable for simplifying the Boolean expressions used in error detection and correction circuits, ensuring data integrity.

• Error Checking Logic: K-Maps simplify Boolean functions used in error detection circuits like Hamming codes and parity checkers.
• Simplified Boolean Expressions: By reducing the complexity of the Boolean expression, K-Maps improve the speed and accuracy of error checking.
• Example: K-Maps are used in digital communication systems to design error detection circuits that ensure reliable data transmission in a data structure.

Now that the applications of K-Maps have been seen let’s discuss the benefits and potential pitfalls of using K-Maps.

Benefits and Common Pitfalls of Karnaugh Maps

Karnaugh Maps (K-Maps) are a valuable tool for simplifying Boolean expressions, but like any method, they come with both benefits and potential pitfalls. Understanding these advantages and common mistakes can improve efficiency and accuracy in circuit design.

Let us first start with the benefits of K-Maps.

Benefits of Karnaugh Maps

Karnaugh Maps offers a number of advantages over traditional algebraic methods for Boolean simplification. They help streamline the design process, making it easier to create efficient digital circuits. Common benefits include:

Also Read: Arithmetic Progression Formula: Key Concepts, Examples, and Use Cases

While K-Maps offer many benefits, it’s also important to recognize the common mistakes people make when using them.

Common Pitfalls of K-Maps

Despite their usefulness, K-Maps can be challenging when errors are made during the simplification process. It's essential to avoid common mistakes to ensure the final Boolean expression is as simplified as possible.

Here is a tabular representation of various problems related to K-Maps, along with their possible solutions.

By understanding the benefits and avoiding common pitfalls, K-Maps become a powerful tool for Boolean simplification, leading to more efficient and effective digital circuit designs.
