About Kubernetes

Kubernetes is an open-source platform with features like resource maximization, automatic deployment process and updation, auto-scaling, self-healing, automated rollbacks and rollouts, and container orchestrators load balancing, and service discovery, auto-restart, auto-placement, and auto-replication, etc. Kubernetes is not only a container orchestrator; it is also an OS for cloud-based applications.

It is like a platform for running an application similar to other applications that run on Windows, MacOS, or Linux with greater flexibility. It reduces the load of orchestrating and allows developers to completely focus on container-centric workflows for the purpose of the self-service operation. Developers have the advantage of a very high- level automation in deployment and application management. It can be integrated with any environment to enhance capabilities.

Check out our free courses to get an edge over the competition

Read: Kubernetes Salary in India

Kubernetes Architecture

Kubernetes architecture consists of layers: Higher and lower layers. In this individual, physical or virtual machines are brought together into a cluster. A shared network is used for communication between each server. Kubernetes has one master (at least) acting as a control plane, a distributed storage system. The multiple cluster nodes are also known as Kubelets.

The master of Kubernetes, control plane, schedules the deployments, exposes the API and manages the overall Kubernetes cluster.
The cluster node runs a container runtime, agent for communicating with the master, and other monitoring components, logging, etc.

Check out upGrad’s Advanced Certification in Cloud Computing

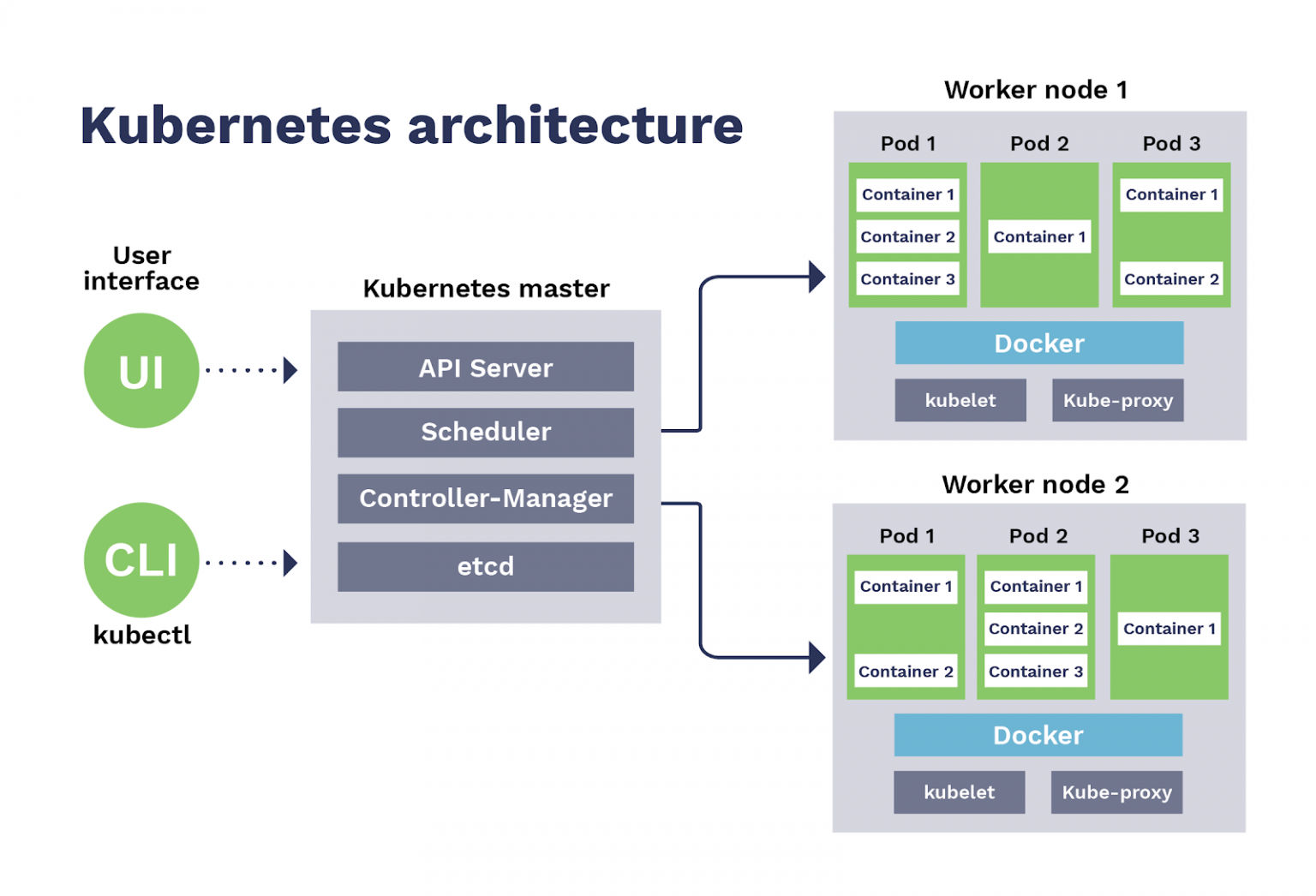

The Kubernetes architecture and Kubernetes components are illustrated in the image below.

Source

Let’s have a look at the Kubernetes components.

upGrad

Professional Certificate Program in Cloud Computing and DevOps

Coverage of AWS, Microsoft Azure and GCP services

Certification8 Months

View Program

upGrad KnowledgeHut

Full Stack Development Bootcamp - Essential

Job-Linked Program

Bootcamp36 Weeks

View Program

Explore Our Software Development Free Courses

Fundamentals of Cloud Computing	JavaScript Basics from the scratch	Data Structures and Algorithms
Blockchain Technology	React for Beginners	Core Java Basics
Java	Node.js for Beginners	Advanced JavaScript

Kubernetes Components

Master: Kubernetes Control Plane

The master maintains the data of every object in Kubernetes. As it manages the whole cluster, hence it is called as Master. It controls object states, maintains the matching of the system’s real state with the required state, responds to changes, etc.

It contains the following three important components:

Kube- API server: Kubernetes API server
Kube- Scheduler: Pod scheduling in worker nodes
Kube- Controller: Manages pod replication

Check out upGrad’s Advanced Certification in Cyber Security

If there are multiple master nodes, then these components are replicated across all master nodes.

The lifecycle orchestration for various applications that include updates, scaling, etc. are done by API Server. It works as a gateway for the clients that are not within the cluster. The API server does the authentication. It also acts like an intermediary to pods and nodes.

The Controller performs the following tasks:

Running the core control loops
Making changes for driving status towards the required state.
Watching the cluster state

It also offers routing, storage services, load balancing, DNS network services, VM instances by integrating into public clouds. The different controllers that drive state for autoscaling, nodes, services and pods, namespaces.

The container scheduling throughout the nodes is done by Scheduler within the cluster; considering different resource limitations/guarantees, or anti-affinity/affinity specifications.

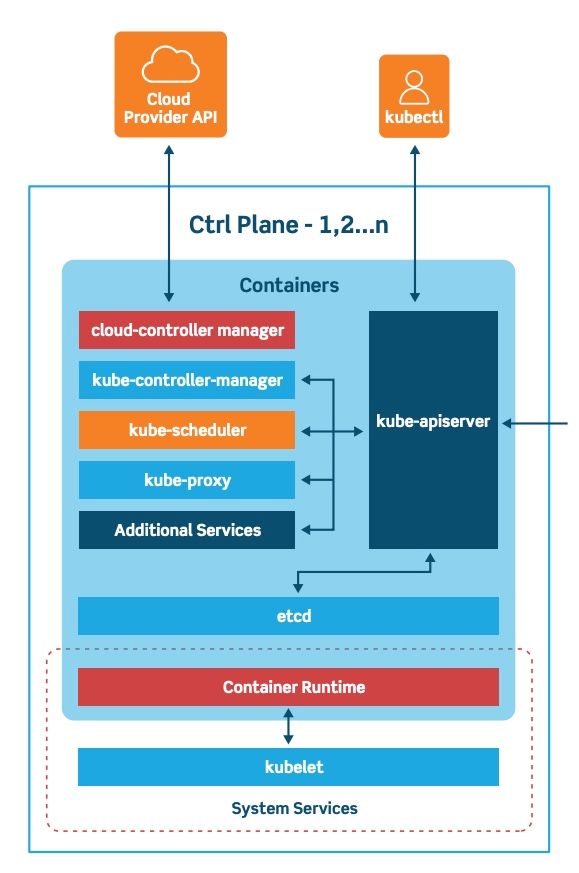

The Kubernetes Control Plane taxonomy is shown below:

Source

Cluster Nodes: Kubelets

Kubelets are different machines that are responsible for running containers. The master does the management of cluster nodes. It is also called Minion. The cluster nodes are considered as the primary controller of Kubernetes. It drives Docker, the execution layer of containers.

It contains the following components:

Pod: Group of containers
Docker: Container-based technology, user space of OS
Kubelet: Container agents that are responsible for maintaining the set of pods.
Kube-proxy: Routes traffic coming into a node from the service.

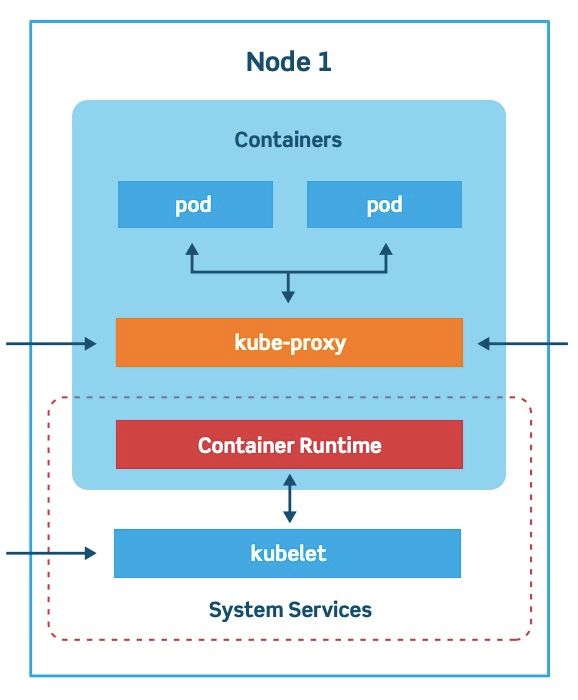

The Kubernetes Cluster Node taxonomy is shown below:

Source

Explore our Popular Software Engineering Courses

Master of Science in Computer Science from LJMU & IIITB	Caltech CTME Cybersecurity Certificate Program
Full Stack Development Bootcamp	PG Program in Blockchain
Executive PG Program in Full Stack Development
Software Engineering Courses

Pods and Services

Pods are an important concept in Kubernetes with which developers interact. It represents the running process. It can host application stacks that are vertically-integrated such as WordPress LAMP applications. Given below are different pod types:

Pod Type	Functionality
ReplicaSet	Simple Pod type Ensures the running of fixed pods
Deployment	A declarative way pod management via ReplicaSet Rolling updates and rollback mechanisms are included.
StatefulSet	Manages pods that should persist
Daemonset	Ensures each node runs a pod instance. Manages cluster services such as log forwarding and health monitoring.
CronJob and Job	Runs jobs that are short-lived as a scheduler

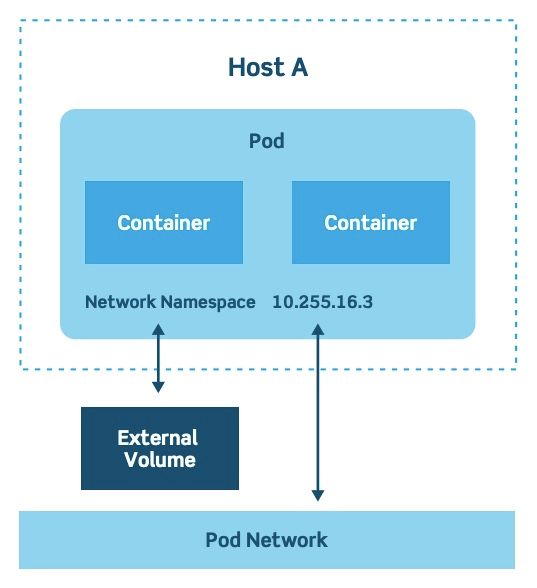

A pod can consist of a number of containers and external volumes. The taxonomy of pod is shown in the below diagram:

Source

Services do the tracking of Pods. For defining pod and service associations, selectors or labels are used instead of IP address assignments. This simplifies the addition of pods to service and releasing of new versions. Following are the different service types:

Service Type	Functionality
ClusterIP	Default Type; Exposes the service on an internal IP and makes the service reachable
NodePort	Allows developers to set up their own load balancers
LoadBalancer	Automates their configuration
ExternalName	Commonly used for creating service within Kubernetes.

The typical cloud deployment used is the LoadBalancer type. Kubernetes supports the abstraction of high-level Ingress to solve complexity. Users can display different services within the same IP address by making the use of the same load balancers.

Kubernetes Networking

Mostly CNI (Container Network Interface) is used for obscuring the basic network. Calico, a fully-routed option, can also be used. In both options, the communication is done on a cluster-wide pod network and controlled by Calico or Flannel (CNI provider). Containers can communicate within a pod over the localhost without any restriction. Movement from external sources to services or pods to services is done via Kube-proxy.

In-Demand Software Development Skills

JavaScript Courses	Core Java Courses	Data Structures Courses
Node.js Courses	SQL Courses	Full stack development Courses
NFT Courses	DevOps Courses	Big Data Courses
React.js Courses	Cyber Security Courses	Cloud Computing Courses
Database Design Courses	Python Courses	Cryptocurrency Courses

Persistent Storage

A directory having some data is referred to as Volumes in Kubernetes. The directories are accessible to pods. There are many storage types in Kubernetes. Containers within the pod can consume any storage. The public cloud services such as NFS, Amazon Elastic Block Store, Iscsi, CephFS, etc. are used for mounting files and block storage to a pod. PVs (PersistentVolumes) are cluster-wide objects that are tied to the existing storage resources.

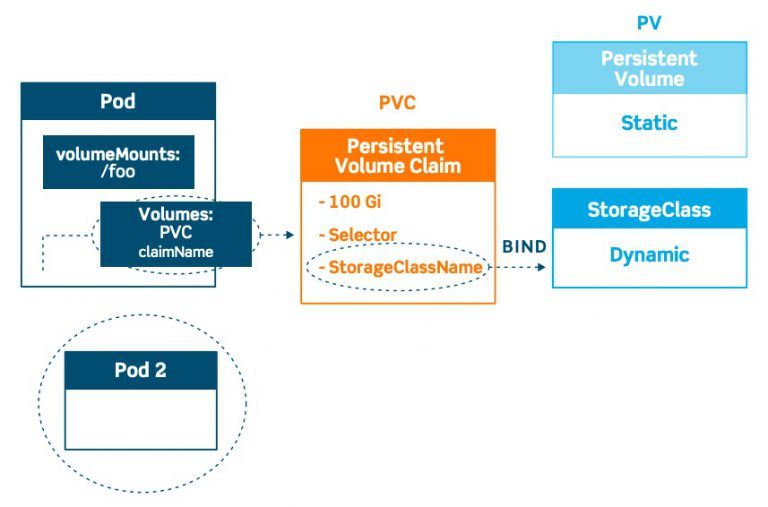

Within a namespace, the request for a storage consumption is initiated by PersistentVolumeClaim. The different states of PV are available, bound, released, and failed. The StorageClasses are the abstraction layer. It differentiates the underlying storage quality and separates out various characteristics. The pod can request new storage dynamically with the help of StorageClasses and PersistentVolumeClaim.

Source

upGrad’s Exclusive Software Development Webinar for you –

SAAS Business – What is So Different?

Discovering and Publishing Services

Depending on the cluster’s version, Kubernetes depends on either Kube-DNS or CoreDNS for discovering the services. These integrated DNS services create, update, and remove DNS records. It helps applications to target other pods and services through a consistent and simple naming scheme.

Example (Source)

For a Kubernetes service, the DNS record can be service.namespace.svc.cluster.local

DNS record, a pod can have: 10.32.0.125.namespace.pod.cluster.local

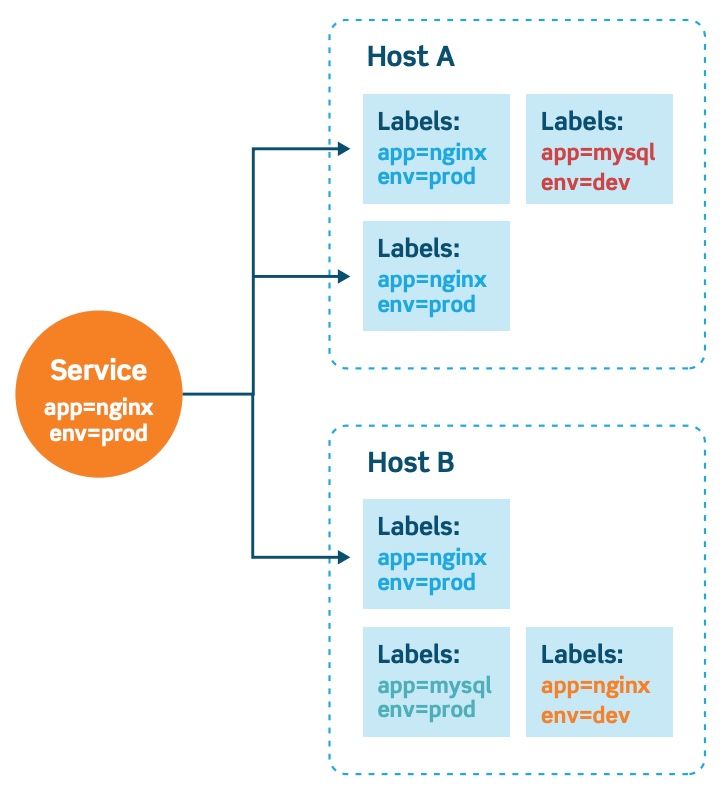

Source

Namespaces

The Physical cluster containing virtual clusters are called Namespaces. It provides a separate virtual environment to multiple users along with respective access rights for Kubernetes objects.

Labels

Labels are used to differentiate resources present in a single namespace. The attributes are defined by key or value pairs. Labels are used for mapping organization structures over Kubernetes objects. It can describe the environment, release state, app tier, or identification of customers. It prevents the hard linking of objects.

Annotations

Annotations are used for adding arbitrary unidentified baggage or metadata to objects. It is used as a declarative configuration tooling.

Must Read: Kubernetes Vs. Docker: Primary Differences You Should Know
