Big Data Architecture: Complete Guide for Beginners

Big Data Architecture is the framework that defines how large volumes of structured, semi-structured, and unstructured data are collected, stored, processed, and analyzed. It brings together technologies, tools, and layers that ensure data flows smoothly from sources to storage and then to processing and visualization systems. This structured approach makes it possible to handle massive datasets and extract meaningful insights efficiently.

In this blog, you will learn about the four logical layers of Big Data Architecture, explore key frameworks like Hadoop and HDFS, and understand common architecture patterns used across industries.

To dive deeper into Big Data frameworks and become job-ready, explore our Online Data Science Courses. Learn from top industry experts and build real-world skills that employers value.

What is Big Data Architecture?

Big Data Architecture is the end-to-end framework for managing and analyzing huge datasets. Think of it as designing the entire operational system for a modern smart city, not just the blueprint for a single house. It includes the tools, processes, and technologies required to handle the complete lifecycle of data, from its source to its final analysis.

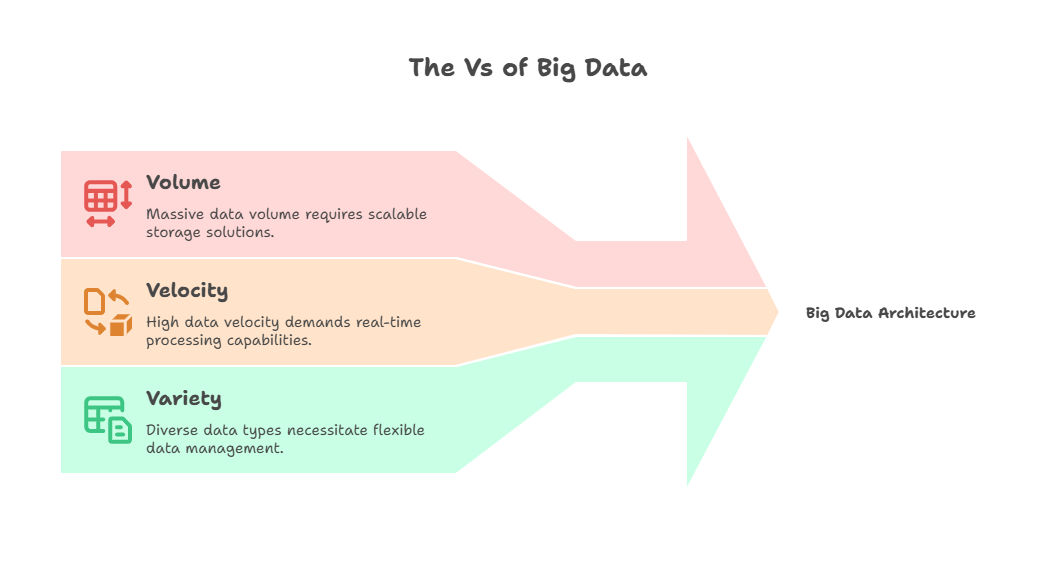

This special architecture is necessary because big data has unique characteristics, often called the "Vs of Big Data":

• Volume: The sheer amount of data being generated.
• Velocity: The high speed at which new data is created.
• Variety: The different types of data, such as structured (like spreadsheets), semi-structured (like emails), and unstructured (like videos or images).

Boost Your Data Career with Expert-Led Programs! Master the latest in Big Data, AI, and analytics with our industry-aligned courses:

• Post Graduate Diploma in Data Science – IIIT Bangalore
• Executive Post Graduate Certificate Programme in Data Science & AI
• Generative AI for Business Leaders – IIIT Bangalore

A traditional system would buckle under this pressure. Big Data Architecture is specifically designed to be scalable, fault-tolerant, and flexible enough to manage these challenges effectively.

The Four Logical Layers of Big Data Architecture

To make it easier to understand, we can organize a typical Big Data Architecture into four logical layers. Each layer has a specific job to do in the data's journey from raw information to actionable insight.

Layer 1: Data Ingestion Layer

This is the starting point. The ingestion layer is responsible for collecting raw data from a wide range of sources. These sources could be anything from user activity logs on a website, sensor data from IoT devices, transaction records from a financial system, or posts from social media.

Data ingestion can happen in two main ways:

• Batch Ingestion: Data is collected and moved in large chunks at scheduled intervals (e.g., once a day). This is suitable for processes where real-time information is not critical, like generating monthly sales reports.
• Real-time (Streaming) Ingestion: Data is collected and transmitted as soon as it is generated. This is essential for use cases that require immediate action, like fraud detection or live monitoring of website traffic.

Common Tools: Apache Kafka, Apache Flume, and Apache Sqoop.

Also Read: Top Big Data Skills Employers Are Looking For in 2025!

Layer 2: Data Storage Layer

Once the data is collected, it needs a place to live. The storage layer is where these massive datasets are stored. Traditional relational databases are not built to handle the volume and variety of big data. Instead, this layer often uses a data lake, a vast repository that can hold structured and unstructured data at any scale.

The key technology here is a distributed file system, which stores data across a cluster of multiple machines. This approach is highly scalable and cost-effective.

Common Tools: Hadoop Distributed File System (HDFS), cloud storage like Amazon S3 or Azure Blob Storage, and NoSQL databases like HBase or Cassandra.

Layer 3: Data Processing Layer

Raw data is often messy and not immediately useful. The processing layer is where the magic happens. It takes the stored data and processes it to clean, transform, and structure it for analysis. Like the ingestion layer, processing can be done in batches or in real time.

• Batch Processing: A processing engine pulls a large dataset from storage, performs a complex computation, and writes the result back to storage.
• Stream Processing: The engine processes data as it flows through the system, enabling real-time analytics and responses.

Common Frameworks: Apache Hadoop MapReduce, Apache Spark, Apache Flink, and Apache Storm.

Also Read: Apache Spark Architecture: Everything You Need to Know in 2025

Layer 4: Analysis and Visualization Layer

This is the final layer where the value of big data is unlocked. The analysis and visualization layer provides tools for data analysts, data scientists, and business users to explore the processed data. This can involve running queries, building machine learning models, or creating interactive dashboards and reports.

This is the interface that allows humans to ask questions and get answers from the data.

Common Tools: Apache Hive, Presto, Business Intelligence (BI) tools like Tableau or Power BI, and data science notebooks like Jupyter.

Also Read: Data Analysis Using Python [Everything You Need to Know]

Key Frameworks: A Closer Look at Hadoop and HDFS

When you talk about Big Data Architecture, it is impossible to ignore Apache Hadoop. It was one of the first and most important open-source frameworks designed to solve big data problems. Understanding its components is key to understanding many modern data systems.

Also Read: Data Processing in Hadoop Ecosystem: Complete Data Flow Explained

Understanding Hadoop Architecture in Big Data

Apache Hadoop is a framework that allows for the distributed processing of large datasets across clusters of computers. Instead of using one giant, expensive supercomputer, Hadoop lets you use a network of many standard, affordable computers (known as commodity hardware) working together.

The core of the Hadoop architecture in big data consists of three main components:

• Hadoop Distributed File System (HDFS): This is the storage layer. It is a file system designed to store enormous files by splitting them up and distributing them across all the machines in the cluster.
• MapReduce: This is the original processing model of Hadoop. It provides a simple programming framework for processing data in parallel across the cluster. It works in two main phases: the "Map" phase, which sorts and filters data, and the "Reduce" phase, which aggregates the results.
• YARN (Yet Another Resource Negotiator): This is the resource manager. YARN's job is to manage the resources of the cluster (like CPU and memory) and schedule the tasks that need to be run. It acts like an operating system for the Hadoop cluster.

Together, these components provide a robust foundation for storing and processing big data. The design of the Hadoop architecture in big data makes it highly scalable and resilient to hardware failures.

Also Read: Top 15 Hadoop Interview Questions and Answers in 2024

The Role of HDFS Architecture in Big Data

HDFS is the backbone of Hadoop's storage capabilities. It is designed to be highly fault-tolerant and is optimized for handling large files with a write-once-read-many access pattern.

The HDFS architecture in big data is based on a master-slave model:

• NameNode (Master): There is only one NameNode in a cluster. It is the brain of the system. It does not store the actual data itself but holds the metadata, the directory structure, file permissions, and the location of each data block on the DataNodes.
• DataNodes (Slaves): There are many DataNodes in a cluster. These are the worker machines that store the actual data. Files are broken down into large blocks (typically 128 MB), and these blocks are stored across different DataNodes.

Also Read: What are Hadoop Clusters? Important Features, Key Roles and Advantages

A key feature of the HDFS architecture in big data is data replication. To ensure fault tolerance, HDFS automatically creates copies of each data block and stores them on different Data Nodes. By default, each block is replicated three times. If a machine holding a block fails, HDFS can still serve the data from one of the other copies, ensuring the system remains available.

Common Big Data Architecture Patterns

Over the years, standard design patterns have emerged to address different business needs. Two of the most popular patterns are the Lambda and Kappa architectures.

Lambda Architecture

The Lambda architecture is a hybrid approach designed to handle both batch and real-time data processing. It acknowledges that some insights require a comprehensive, historical view (batch), while others need immediate, low-latency results (real-time).

It consists of three main layers:

1. Batch Layer: Manages the master dataset and pre-computes batch views from all the data. It provides accurate, comprehensive results but with high latency.
2. Speed Layer (Real-time Layer): Processes data streams in real time. It only works with recent data and provides low-latency, up-to-date views. These views may be less accurate than the batch views.
3. Serving Layer: Merges the results from the Batch Layer and the Speed Layer to provide a complete and unified answer to user queries.

Also Read: 5V’s of Big Data: Comprehensive Guide

Kappa Architecture

The Kappa architecture is a simpler alternative to Lambda. Its main idea is to handle both real-time and batch processing with a single stream processing engine. It eliminates the need for a separate batch layer.

In this pattern, all data is treated as a stream. If you need to recompute results for historical analysis (what the batch layer did in Lambda), you simply replay the data stream through the processing engine from the beginning. This simplifies the overall Big Data Architecture by reducing code maintenance and system complexity.

Also Read: Benefits and Advantages of Big Data & Analytics in Business

Lambda vs. Kappa: A Quick Comparison

Here is a quick comparison table for both Lambda and Kappa:

Conclusion

Choosing the right Big Data Architecture depends on your specific needs, budget, and technical expertise. Whether you use a traditional layered approach, a Lambda pattern, or something else, the goal remains the same: to create a reliable system that turns massive amounts of data into a strategic asset.
