CSS Positioning

CSS positioning is a basic concept in web design and development that allows developers to precisely control the layout of web components. Understanding how to leverage CSS positioning types is crucial for creating visually appealing and interactive websites. To help you better understand CSS positioning, we will examine its various types in this article, along with a useful example.

Overview

CSS positioning plays a pivotal role in the visual structuring of web pages. It enables developers to arrange the elements accurately. They can stack the elements on top of one another and design intricate, dynamic layouts that adjust to different screen widths.

Understanding CSS Positioning

Positioning in CSS is about determining how elements are placed and interact with each other on the web page. This basic idea of web design gives developers the ability to manipulate how HTML elements are arranged on a webpage. The position property, which has several possible values including static, relative, absolute, fixed, and sticky, is the central component in determining the flow of an element within a document.

Comprehending these positioning strategies is essential to designing intricate, adaptable layouts that function on various screen sizes and platforms.

CSS Positioning Types

To understand CSS positioning better, it is important to understand the different types of CSS positioning available:

Static

• Static is the default positioning model.
• Elements flow into the page as they appear in the HTML.
• Blocks stack vertically, and inline items sit within their containing blocks on a baseline.
• Static elements are unaffected by the top, right, bottom, left, and z-index properties.

Relative

• When you set the position to relative, it does not change anything by itself. But it does allow you to use the top, right, bottom, and left properties to move the element relative to where it would have been in the normal flow.
• This does not affect the position of surrounding elements.

Absolute

• When an element's position is set to absolute, it is eliminated from the normal document flow.
• It no longer takes up space where it was originally situated. It is positioned to its nearest positioned ancestor—meaning an ancestor with a position other than static. If no such ancestor exists, it is positioned relative to the initial container.

Fixed

• Fixed positioning is an instance of absolute positioning.
• Elements with stable positioning are positioned relative to the viewport—the browser window, not an ancestor element.
• They are completely removed from the document flow and do not move when the page is scrolled.

Sticky

• CSS position Sticky combines the characteristics of relative and fixed positioning.
• A sticky element "sticks" to the top of the viewport like a fixed element once a certain scroll point is reached, but acts like a relatively positioned element until that point.

CSS Positioning Properties

Positioning properties include position, top, right, bottom, left, and z-index. These properties control the positioning and stacking of elements:

• bottom: This property sets the bottom margin edge of a positioned element. For relatively positioned elements, it specifies the amount by which the element is moved above its normal position.
• clip: This is a deprecated property, and it is recommended to use the clip-path property instead. The clip property restricts the region to which a positioned element is clipped when it is rendered.
• left: This property sets the left margin edge of a positioned box. It sets the distance between the left margin edge of an element and the left edge of its containing element. A negative value places it to the left of its normal position.
• position: This is a key property that specifies the type of positioning method applied for an element. The available options are static, relative, fixed, absolute, and sticky.
• right: This property sets the right margin edge of a positioned element. It sets the distance between the right margin of an element and the right edge of its containing element. A negative value places it to the left of its normal position.
• top: This property sets the top margin edge of a positioned box. It defines the amount by which an element is moved below its normal position when positioned relative to another element.

Example of CSS Positioning

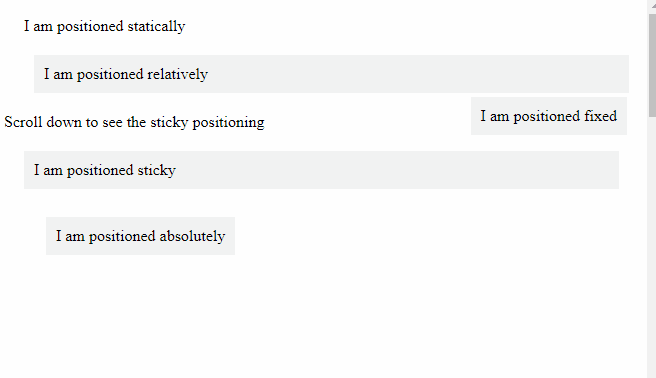

Let’s see an example to understand the CSS positioning types and their working:

<!DOCTYPE html>

<html lang="en">

<head>

<meta charset="UTF-8">

<meta name="viewport" content="width=device-width, initial-scale=1.0">

<style>

.static-position {

position: static;

margin: 20px;

}

.fixed-position {

position: fixed;

top: 80px;

right: 0;

background-color: #f2f2f2;

padding: 10px;

margin: 20px;

}

.absolute-position {

position: absolute;

top: 200px;

left: 30px;

background-color: #f2f2f2;

padding: 10px;

margin: 20px;

}

.relative-position {

position: relative;

top: 0px;

left: 10px;

background-color: #f2f2f2;

padding: 10px;

margin: 20px;

}

.sticky-position {

position: sticky;

top: 0;

background-color: #f2f2f2;

padding: 10px;

margin: 20px;

}

.content {

height: 2000px; /* To create scrollable content */

}

</style>

<title>CSS Positioning Examples</title>

</head>

<body>

<div class="static-position">I am positioned statically</div>

<div class="fixed-position">I am positioned fixed</div>

<div class="absolute-position">I am positioned absolutely</div>

<div class="relative-position">I am positioned relatively</div>

<div class="content">

<p>Scroll down to see the sticky positioning</p>

<div class="sticky-position">I am positioned sticky</div>

</div>

</body>

Advanced CSS Positioning Techniques

Below are some of the advanced CSS position attribute techniques that can help in creating complex layouts and designs:

• CSS Grid Layout: This is a two-dimensional grid-based layout system that is great for building complex web layouts. It allows you to position elements within columns and rows and makes responsive design easier.
• Flexbox: Flexbox, or the Flexible Box Layout, allows you to control the alignment, direction, order, and size of boxes in a container, even when their size is unknown or dynamic. It is great for creating complex layouts in one dimension (either a row or a column).
• CSS Transforms: The transform property allows you to rotate, scale, skew, or translate an element. This can be used for creating interesting layouts and effects, particularly when combined with transitions or animations.
• CSS Transitions and Animations: CSS transitions allow you to animate smooth changes to CSS position properties, while CSS animations can control more complex sequences of animations.

Common CSS Positioning Challenges and Solutions

Common CSS positioning challenges and solutions are explained below:

Overlapping Elements

• Challenge: When using absolute or relative positioning, elements may overlap unexpectedly.
• Solution: The z-index property can be used to control the stack order of positioned elements. The element having a higher z-index is displayed in front of an element with a lower one.

Element Not Staying Fixed

• Challenge: Sometimes, an element’s position is fixed; it does not stay in the expected place.
• Solution: Ensure that the parent element is not transformed (i.e., does not have a transform property set). A transformed parent breaks the fixed positioning context.

Centering Elements

• Challenge: Centering an element both vertically and horizontally can be tricky.
• Solution: For block elements, use margin: auto; in combination with a specified width or height. For more modern approaches, you can use Flexbox or CSS Grid. For absolute positioning, set the top, right, bottom, and left values to 0 and set the margin: auto.

Sticky Element Not Working

• Challenge: An element with position: sticky; is not sticking as expected.
• Solution: Ensure that the element is not inside a parent with an overflow value other than visible, as this can break the sticky positioning. Also, make sure a sticky boundary is defined by giving the parent a height, and the sticky element is within this boundary.

Space Management with Absolute Positioning

• Challenge: Positioned elements are removed from the document flow, which can cause other elements to ignore the space they take up.
• Solution: Use CSS position relative or a placeholder element to reserve space if necessary.

Best Practices for CSS Positioning

Best practices for CSS positioning are listed below:

• Use Appropriate Positioning: Not every situation requires the use of absolute or relative positioning. Sometimes, a simple layout can be achieved with the default static positioning and clever use of margin and padding.
• Avoid Overlapping When Possible: While z-index can help manage overlapping elements, it is best to avoid this situation when possible as it can lead to complex stacking contexts.
• Combine Positioning Types: Do not feel like you have to stick to one type of positioning. Often, the best layouts are achieved by combining different types of positioning. For instance, a common pattern is to create a relative positioning context and then position children absolutely within it.
• Utilize Modern Layout Techniques: While understanding positioning is important, modern CSS offers layout techniques like Flexbox and Grid, which can often provide simpler and more robust solutions to complex layout problems.
• Responsive Design: Make sure your positioning looks good on all screen sizes. This might mean using different positioning types or values at different breakpoints.

Wrapping Up

Mastering CSS positioning is essential for creating compelling, responsive web designs. By understanding the different positioning types, leveraging the box model, and applying advanced techniques, developers can overcome common challenges and enhance their web development skills.

FAQs

1. What is CSS positioning?

CSS positioning is a feature that allows you to control where and how HTML elements are placed on a webpage.

2. What are the different types of CSS positioning?

The different types of CSS positioning are static, relative, absolute, fixed, and sticky.

3. When should I use absolute positioning?

Use absolute positioning for elements that need to be eliminated from the normal document flow and positioned precisely relative to a parent container.

4. What is relative positioning in CSS?

Relative positioning in CSS allows an element to be positioned relative to its normal static position without affecting the position of other elements.

5. How are fixed and sticky positionings different?

Fixed positioning anchors an element to the viewport, making it stay in place during scrolling. Sticky positioning toggles between relative and fixed, depending on the scroll position.
