Super Key in DBMS

In DBMS, Super Keys are vital for ensuring data integrity and uniqueness. Database admins and developers must grasp this concept for effective schema design.

Overview

In this article, we will:

• Understand the concept of “super key” in DBMS with examples, and its role/importance.
• Go through the definition(s) of different types of DBMS super keys.
• Understand their significance in database management systems, and examine real-world applications.

Importance of Super Key in Database Management Systems (DBMS)

Super keys find extensive use in relational database schemas. They help create relationships between tables and ensure data integrity by requiring uniqueness. For instance, in an online shopping platform, a user's email address could serve as a super key to uniquely identify each customer.

DBMS Super Key

A Super Key is a group of details in a table that can pick out every individual entry. It's like the building blocks of a database, making it easier to manage and find information. Let us understand what exactly the Super Key in DBMS with an example. Consider a simplified student table with the following attributes:

• Student ID
• First Name
• Last Name
• Date of Birth
• Email Address

A Super Key in this scenario could be a combination of attributes that guarantee uniqueness across all records. For instance, a Super Key could be the combination of Student ID and Email Address. Together, these attributes ensure that no two students have the same combination of (Student ID, Email Address) in the table.

Similarly, other combinations such as Student ID and Date of Birth or First Name and Last Name could also serve as Super Keys. However, this may depend on the specific requirements and constraints of the database schema.

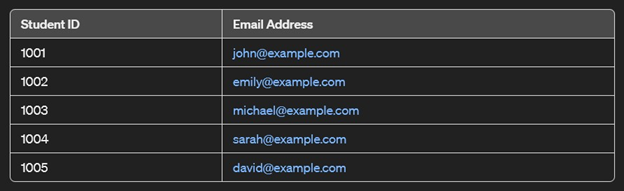

Now let us consider the combination of Student ID and Email Address.

In this case, the combination of Student ID and Email Address form a composite Super Key. This is because each pair of values uniquely identifies a student. No two students can have the same combination of Student ID and Email Address. Therefore, this combination ensures the uniqueness of each student record in the table.

Types of Super Keys

A. Simple Super Key: A Simple Super Key uniquely identifies records in a table, like a Student ID in a student database.

For instance, in a student database, a simple super key could be the Student ID.

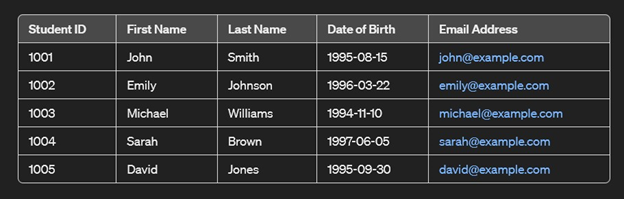

Check out the example below:

The "StudentID" column serves as the Simple Super Key because it uniquely identifies each student record. Each student has a distinct ID, ensuring that no two students share the same ID within the table.

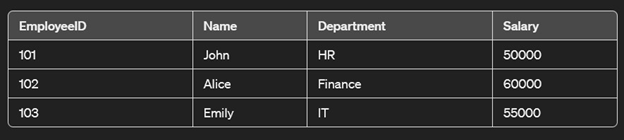

B. Composite Super Key: A Composite Super Key includes multiple attributes that uniquely identify each record when combined. For example:

In this table, a Composite Super Key could consist of the combination of "EmployeeID" and "Department". Each combination of these attributes uniquely identifies each employee record. John's record in the HR department is uniquely identified by the number 101 and the label "HR." This makes sure that there's only one entry for John in the table, without any duplicates.

C. Candidate Key as a Special Case of Super Key: The Candidate Key is a special part of the super key that can uniquely identify each record. It's vital for table uniqueness and database design.

It's like a special ID for a table that helps keep things organized and well-structured in the database. The primary difference lies in the candidate key being the minimal super key for a table.

Let's illustrate this with an example:

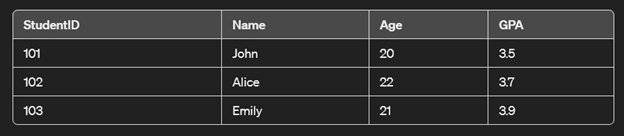

Consider a table called "Students" with the following attributes:

In the table, "StudentID" and "Name" can be candidate keys because each one uniquely identifies a student. But "StudentID" is the simpler candidate key as it identifies each student uniquely without extra details. So, "StudentID" is a candidate key and a special kind of super key for the "Students" table.

Algorithmic Approach to Finding a Super Key in Database Management System

To find and distinguish super keys in a table, you can follow this algorithm:

1. Start by examining each set of attributes in the table to determine if it uniquely identifies each record.
2. Create subsets of attributes from the table, starting with single attributes and gradually increasing to combinations of attributes.
3. Verify if each subset uniquely identifies each record in the table. If it does, mark it as a potential super key.
4. Continue this process for all possible combinations of attributes in the table.
5. Once all potential super keys are identified, compare them to ensure that no super key is a subset of another super key. If a super key is a subset of another, it should be excluded from the list.
6. Finally, document the identified super keys along with their attributes as the result of the algorithm.

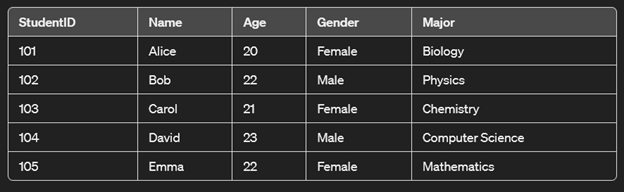

Here's an example table for illustration:

We can start by examining each attribute individually. For example, "StudentID" serves as a potential super key because it uniquely identifies each student. Next, we consider combinations of attributes, such as "StudentID" and "Name" together. If this combination also uniquely identifies each student, it qualifies as a super key. We continue this process until all potential super keys are identified and then compare them to ensure none are subsets of each other. Finally, we document the identified super keys along with their attributes.

The identified super keys are:

1. StudentID
2. Name
3. StudentID, Name
4. StudentID, Age
5. StudentID, Gender
6. StudentID, Major
7. StudentID, Name, Age
8. StudentID, Name, Gender
9. StudentID, Name, Major
10. StudentID, Age, Gender
11. StudentID, Age, Major
12. StudentID, Gender, Major
13. StudentID, Name, Age, Gender
14. StudentID, Name, Age, Major
15. StudentID, Name, Gender, Major
16. StudentID, Age, Gender, Major
17. Name, Age
18. Name, Gender
19. Name, Major
20. Name, Age, Gender
21. Name, Age, Major
22. Name, Gender, Major
23. Age, Gender
24. Age, Major
25. Gender, Major
26. Name, Age, Gender, Major

These are all the combinations of attributes that uniquely identify each record in the table, making them super keys.

Candidate keys ensure each tuple is unique without redundancy, containing only essential attributes. Super keys also identify tuples uniquely but may include redundant attributes. A table may have multiple candidate keys, offering various combinations for super keys. Candidate keys determine the primary key, whereas super keys help generate them.

Use Cases and Applications

In various domains, super keys are instrumental in streamlining operations and enhancing user experiences. Business applications leverage super keys to manage customer data effectively, while web applications rely on them for user authentication and access control. Similarly, e-commerce platforms utilize super keys to track order details.

For example, a Product ID or SKU could uniquely identify each product, serving as a super key for efficient data management. Combinations like Product Name and Category may form composite super keys, enhancing organization and search functionalities. These keys make managing inventory, tracking orders, and supporting customers easier, which makes the user experience better.

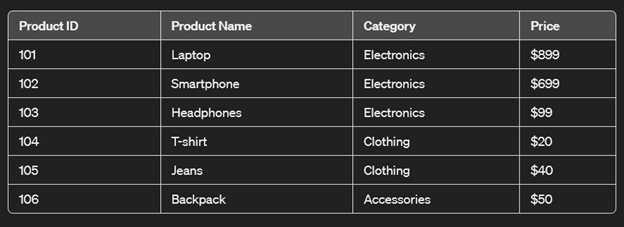

Below is a product table in an e-commerce platform:

In the above product table, putting together attributes like Product Name and Category creates a composite super key. This combo helps organize and search products better. If someone wants to find all items in a certain category, the system can use this key to quickly fetch the right records. This avoids a long search through the whole table. This makes finding information faster and improves the user experience overall.

Implementation and Best Practices

Guidelines for Identifying Super Keys: When it comes to pinpointing exceptional super keys, a comprehensive evaluation of data prerequisites and a grasp of entity connections within the database layout are vital. The crux lies in cherry-picking attributes with distinctive values that truthfully reflect each entry.

Strategies for Implementing Super Keys: Strategies for executing Super Keys revolve around tactical methodologies to fine-tune database functions and safeguard data coherence. Two common key implementation strategies are:

1. Indexing: The inception of indexes on super keys streamlines data retrieval by structuring information systematically. Indexes play the role of signposts directing toward the physical data locations in the database, notably curtailing search time and record access duration. Through indexing super keys, database frameworks can promptly pinpoint specific tuples, augmenting overall query efficiency and system reactivity.
2. Constraints Enforcement: Adhering to constraints is imperative for upholding uniqueness and preserving data integrity within the database ecosystem. Unique constraints can be enforced on super keys to guarantee that every tuple in the table harbors distinct values for assigned attributes. By mandating uniqueness, constraints thwart duplicate record insertions and sustain uniformity in the database realm. Constraints like primary key constraints can be used to designate super keys as primary identifiers, further amplifying their importance in overseeing databases.

Conclusion

DBMS Super Keys organize and retrieve data efficiently in databases. Understanding and implementing them boosts organizational efficiency.

FAQS

Q: What are the 5 keys in DBMS?

A: The 5 main keys in DBMS are the primary key, composite key, foreign key, super key, and candidate key respectively.

Q: What is a super key in the ER diagram?

A: A super key in an ER diagram is a set of attributes that uniquely identifies each entity. It ensures the unique identification of entity instances based on included attributes.

Q: What is composite key and super key?

A: A composite key has more than one attribute, while a super key uniquely identifies each record.

Q: What is the super key keyboard?

A: The Super Key, also known as the "Windows key", is a special key on PC keyboards. It's used with other keys to do things like open the Start menu or start programs. It’s not to be confused with the DBMS Super Key.

Q: What is a super key in SQL? A: In SQL, a super key is a set of columns that uniquely identifies each row in a table. It can be one column or a combination of multiple columns.

Q: What is a super key with an example?

A: A super key in a database is a set of attributes that uniquely identifies each record in a table. For example, in a table of students, a combination of Student ID and Name could serve as a super key because together they can uniquely identify each student.

Q: Where is super key?

A: Super keys are used in databases to uniquely identify records. They're essential for organizing data in business, web, and e-commerce applications.

Q: Is a unique key a super key?

A: Yes, a unique key is a type of super key in a database.

Q: Is the super key a primary key?

A: No, a super key is not always the primary key.
